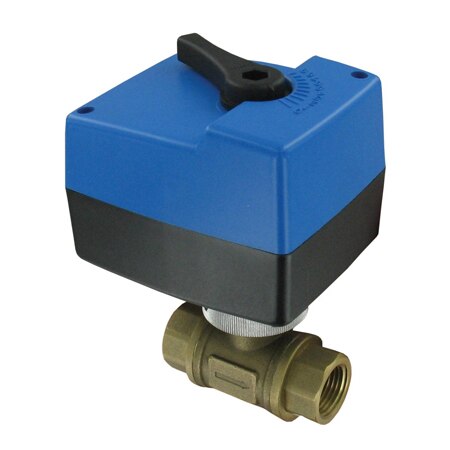

Series-HBAV
HVAC Electrical Ball Valve – Flow Control for Hot/Cold Water, AC Motor
- Manual override
- Detachable actuator
- High Cv values
Series-HBAV
Depuis
$
C0.00
L'aperçu du produit
- Enclosure Ratings IP10, NEMA Type 1
- Materials, Wetted Brass, Buna-N (NBR), PTFE, Stainless Steel
- Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
- Operating Temperature, Max 158 °F
- Operating Temperature, Min -22 °F
- Port 1 Type NPT Female
- Port 2 Type NPT Female
- Pressure Limits Up to 375 psi
- Pressure Limits Note Max: 375 psi (25 bar); Close off: 87 psi (6 bar)
- Process Temperature, Max 122 °F
- Process Temperature, Min 23 °F
- Supply Power Note 120 Vac or 24 Vac, 50/60 Hz, single phase
- Supply Power Type AC
- Valve Position Normally Closed
- Valve Type 2-way
- Wire Gauge 18 AWG
The Series HBAV is an electrical ball valve ideal for flow control in hot and
cold water HVAC systems. These valves are typically used in conjunction with
air conditioning systems, heating systems, water treatment and production
industries. The HBAV is electrically driven open and/or closed via a
bidirectional AC motor. The electrical valve offers a detachable actuator with
position switches and indicator. The HBAV is available with modulating or
floating actuators.
