Series-62

Supported Applications

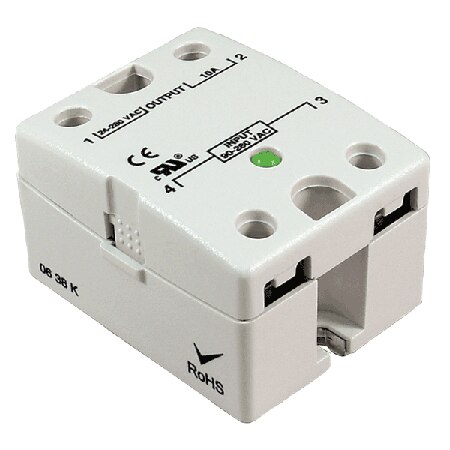

The Dwyer Series 62 Hockey Puck Style Solid State Relay is designed for process control switching applications requiring isolated input and output terminals. The series features optically coupled circuitry to provide pure solid state performance, incorporating a terminal cover and an LED status indicator.

Operating Conditions & Performance

The Series 62 operates within ambient temperature limits of -40 to 176°F (-40 to 80°C). The relay utilizes SPST normally open switching with zero cross operation. Electrical specifications include a maximum voltage loss of 1.6 VAC and an output leakage current of 10 mA max. The operating and load voltage range is documented as 24 to 280 VAC.

Rated Current Loads

• AC Operated Models: Input Voltage Range 90 to 280 VAC; Rated Current Load options of 10 amp (Model 6210AXXSZS-AC90) and 25 amp (Model 6225AXXSZS-AC90).
• DC Operated Models: Input Voltage Range 3 to 32 VDC; Rated Current Load options of 10 amp (Model 6210AXXSZS-DC3) and 25 amp (Model 6225AXXSZS-DC3).

Configuration Options

The series is configurable across input voltage types, current ratings, and physical dimensions. The housing material is Polyamide 6 with spade lug electrical connections.

Physical Dimensions

• Diameter: 1-13/32 [35.56]
• Height (Cylinder): 2-19/64 [58.42]
• Depth: 1-51/64 [45.72]
• Width: 1-3/32 [27.94]

Agency Approvals & Standards

The Series 62 carries the following approvals: CE, RoHS, cUR, and UR.

Key Product Differences

Variants within the series are distinguished by their input voltage requirements (AC or DC) and rated current load capacity. The model number guide follows the format 6210AXXSZS-<OPERATION>-<CURRENT>, with examples including 6210AXXSZS-AC90 for AC operation at 10 amp and 6210AXXSZS-DC3 for DC operation. The series supports both low-voltage DC inputs (3 to 32 VDC) and wide-range AC inputs (90 to 280 VAC).
