Series-199
Relais de puissance à courant élevé de style ouvert, DPDT, jusqu’à 40 A, commande minimum de 10
High-Current Open Style Power Relays, DPDT, Up to 40 A, Min. Order 10
Modèles en stock
Series-199
À partir de
$
81.40
Modèles en stock
Aperçu du produit
- Connexion électrique Borne à vis
- Puissance électrique N/A
- Cycle de vie Électrique : 100 000 cycles ; Mécanique : 1 000 000 cycles
- Matériaux Époxy
- Température de fonctionnement, max 131 °F
- Température de fonctionnement, min -67 °F
- Alimentation optionnelle Remarque Alimentation CA : 85 à 110 % (% de la valeur nominale) ; alimentation CC : 80 à 110 % (% de la valeur nominale)
- Consommation électrique 10 VA ; 4 W
- ID de série Series-199
- Température de stockage, max 212 °F
- Température de stockage, min -67 °F
- Courant d'approvisionnement 40 A
- Puissance nominale du commutateur 40 A à 300 VCA / 28 VCC ; 5 A à 480/600 VCA
- Type de commutateur DPDT
- Poids 11 oz
Supported Applications

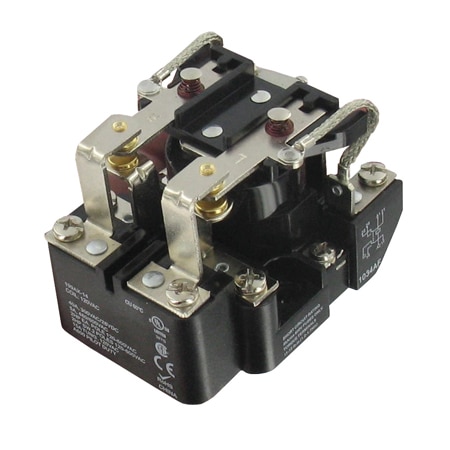

The Dwyer Series 199 Open Style Power Relays are designed for high AC and DC current applications up to 40 Amps. These mercury-free DPDT relays feature a riveted housing construction intended to increase durability and reduce the effects of vibration on the relay.
Operating Conditions & Performance
The series supports an operating voltage range of 24 to 240 VAC, 24 VDC. Electrical ratings are specified as 40 A @ 300 VAC/28 VDC and 5 A @ 480/600 VAC. The relays utilize AgSnO screw terminals for electrical connection.
Performance parameters include an operating range of 85 to 110% (AC operated) or 80 to 110% (DC operated). Power consumption is listed as 10 VA, 4 W. The cycle life is rated at 100,000 cycles (electrical) and 1,000,000 cycles (mechanical).
Temperature limits are defined as -67 to 131°F (-55 to 55°C) for operation and -67 to 212°F (-55 to 100°C) for storage. The housing material is plastic phenolic.
Configuration Options
The Series 199 offers specific AC and DC operated models with distinct input voltages and coil resistances:
- AC Operated Models:
- W199AX-13: 24 VAC, 50/60 Hz; 12 Ω
- W199AX-14: 120 VAC, 50/60 Hz; 290 Ω
- W199AX-15: 240 VAC, 50/60 Hz; 1200 Ω
- DC Operated Models:
- W199X-13: 24 VDC; 290 Ω
The series carries the following agency approvals: CE, CSA, RoHS, cUL, UL, cUR, UR. Overall dimensions are listed as 3-1/8 [79.40], 2-1/2 [63.50], and 2-5/16 [58.80]. Weight ranges from 8 to 11 oz (227 to 312 g).
Key Product Differences
Variants within the series are distinguished by their input voltage requirements and coil resistance values, categorized as AC operated or DC operated. The model number guide follows the format W199AX-, with examples including W199AX-13, W199AX-14, W199AX-15, and W199X-13.
