Series-750H

Hermetically Sealed Relay for Class I Div 2, Gold Contacts, 8/11-Pin

Models In Stock
Series-750H
From $ 195.00
Models In Stock
Hermetically Sealed Relay for Class I Div 2, Gold Contacts, 8/11-Pin Series-750H Series-750H
loading all models
Product Overview
  • Electrical Connection Screw Terminal
  • Electrical Output N/A
  • Enclosure Ratings Class 1 Div II
  • Life Cycle Electrical : 100,000 cycles; Mechanical : 10,000,000 cycles
  • Materials metal
  • Operating and Load Voltage 24 to 120 Vac
  • Operating Temperature, Max 131 °F
  • Operating Temperature, Min -40 °F
  • Optional Power Note AC operated : 85 to 110% (% of Nominal) ; DC operated : 80 to 110% (% of Nominal)
  • Power Consumption 1.2 VA; 0.9 W
  • Storage Temperature, Max 185 °F
  • Storage Temperature, Min -40 °F
  • Supply Current 12 A
  • Switch Rating 12 A @ 120/240 VAC or 28 VDC
  • Trigger Voltage 24 to 120 Vac
  • Weight 4.6 oz

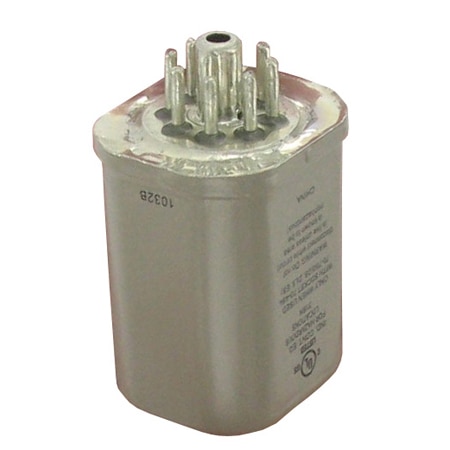

The Series 750H Hermetically Sealed Electromechanical Relay is designed to be used in Class I Division 2 hazardous area locations. Gold flashed contacts provide protection against oxidation in low current / voltage applications. 8-pin and 11-pin sockets are available to allow quick and easy installation for both surface and DIN rail mounting.

Note: All purchases must be 10 units or more.
