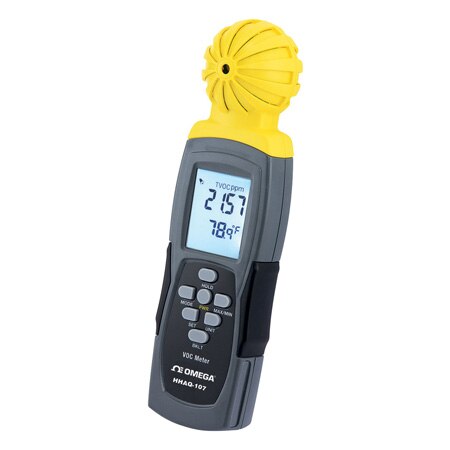

HHAQ-107-Meter
Handheld Volatile Organic Compound (VOC) Meter
- Metal-Oxide Semi-Conductor Sensor within Vented Ball Housing Detects Ammonia, Toluene, Ethanol, Hydrogen Sulfide (H2S) and Cigarette Smoke
- Make Total VOC Concentration Measurements, Ambient Temperature, Relative Humidity (RH), Dew Point and Wet Bulb Temperatures
- Logs Up to 32,000 Data Points
- Powerful Data Logging Software
- Adjustable High VOC Concentration Audible Alarm
- Min/Max Memory (for All Measured Parameters) and Data Hold
- Separate Automated Procedures for VOC Zero Adjustment and Background Calibration
- Manually Off-Settable Temperature and RH Sensor Drift
- Large Backlit Dual-Readout LCD
- Tripod Mountable
HHAQ-107-Meter
From
$
766.11
Product Overview
- Status Control false
- Additional Features 1 Sensor Longevity for Metal-oxide semiconductor - 5 years (typical)
- Air Quality Measurement 0 to 50 ppm
- Auto Power Off 15 minutes of front-panel inactivity (can be disabled)
- Battery Size and Type Alkaline AAA
- Data Logging 32,004 points
- Dew Point Temperature, Max 47 °C
- Dew Point Temperature, Min -73 °C
- Display Size 51 mm (2 in)
- Display Type Dual Readout LCD
- Height 25 mm
- Length 210 mm
- Number of Batteries 6
- Operating Humidity 0 to 95% RH
- Operating Temperature, Max 50 °C
- Operating Temperature, Min 0 °C
- Process Temperature, Max 50 °C
- Process Temperature, Min -10 °C
- Relative Humidity 10 to 90%
- Relative Humidity Accuracy ± 5% RH
- Relative Humidity Accuracy Note ±5% of reading at 25°C ; ±7% of reading elsewhere in range
- Relative Humidity Resolution 0.1% RH
- Resolution 0.01 ppm
- Sensor Type Metal-Oxide Semiconductor, RH Sensor Drift
- Supply Power Note (6) “AAA” batteries (included) or included 110 Vac adaptor
- Temperature Accuracy ± 0.6 °C
- Temperature Resolution 0.1 °C
- Warm Up Time 10 minutes first use, 2 minutes thereafter
- Weight 204 g
- Wet Bulb Temperature, Max 48.2 °C
- Wet Bulb Temperature, Min -11 °C
- Width 60 mm
The HHAQ-107 VOC meter is ideal for making general measurements of mixed gas volatile organic compound (VOC) levels as part of an indoor air quality (IAQ) maintenance program. Much less expensive than photo-ionization meters designed to make precise measurements of VOC levels from a single gas. Small and light weight with a tripod mount fitting, the HHAQ-107 is a versatile tool for HVAC and IAQ technicians. The meters storage capacity can be entirely devoted to VOC readings or split 3 ways for VOC, ambient temperature and relative humidity. The HHAQ-107 incudes powerful data logging software for downloading readings to a PC and printing in table or graph form.
SPECIFICATIONS
VOC Measurement Range/Resolution: 0 to 50/0.01 ppm
VOC Warmup Time: 10 minutes first use, 2 minutes thereafter
VOC Sensor Type/Longevity: Metal-oxide semiconductor/5 years (typical)
Temperature Measurement Range: -10 to 50°C (14 to 122°F)
Temperature Measurement Accuracy/Resolution: ±0.6°C (1.2°F)/0.1°
RH Measurement Range: 10 to 90% RH
RH Measurement Accuracy/Resolution: ±5% of reading at 25°C (77°F); ±7% of reading elsewhere in range/0.1% RH
Dew Point Measurement Range: -73 to 47°C (-99.2 to 118°F)
Wet Bulb Measurement Range: -11 to 48.2°C (12.2 to 118.8°F)
Data Logging Capacity: 32,004 points
Display Type/Size: Dual readout LCD/51 mm (2") diagonal
Auto Power-Off Trigger: 15 minutes of front-panel inactivity (can be disabled)
Operating Temperature: 0 to 50°C (32 to 122°F) at 0 to 95% RH, non-condensing
Dimensions: 210 L x 60 W x 25 mm D (8.3 x 2.4 x 1.0")
Weight: 204 g (7.2 oz), including batteries
Power Source: (6) “AAA†batteries (included) or included 110 Vac adaptor
SPECIFICATIONS
VOC Measurement Range/Resolution: 0 to 50/0.01 ppm
VOC Warmup Time: 10 minutes first use, 2 minutes thereafter
VOC Sensor Type/Longevity: Metal-oxide semiconductor/5 years (typical)
Temperature Measurement Range: -10 to 50°C (14 to 122°F)
Temperature Measurement Accuracy/Resolution: ±0.6°C (1.2°F)/0.1°
RH Measurement Range: 10 to 90% RH
RH Measurement Accuracy/Resolution: ±5% of reading at 25°C (77°F); ±7% of reading elsewhere in range/0.1% RH
Dew Point Measurement Range: -73 to 47°C (-99.2 to 118°F)
Wet Bulb Measurement Range: -11 to 48.2°C (12.2 to 118.8°F)
Data Logging Capacity: 32,004 points
Display Type/Size: Dual readout LCD/51 mm (2") diagonal
Auto Power-Off Trigger: 15 minutes of front-panel inactivity (can be disabled)
Operating Temperature: 0 to 50°C (32 to 122°F) at 0 to 95% RH, non-condensing
Dimensions: 210 L x 60 W x 25 mm D (8.3 x 2.4 x 1.0")
Weight: 204 g (7.2 oz), including batteries
Power Source: (6) “AAA†batteries (included) or included 110 Vac adaptor
PDFs & Manuals
Software & Drivers
Show Ratings & Reviews
HHAQ 107 is recommended for monitoring spray paint vapor in automobile factory paint shop . For VOC monitoring
Thank you for your inquiry! The HHAQ-107 can detect VOCs present in spray paint vapor. The unit measures the total concentration of VOCs and will not differentiate the contributing gases. If this form of measurement is acceptable then the HHAQ-107 will be suitable for this application
Date published: 2022-06-13
