Series-GFM2

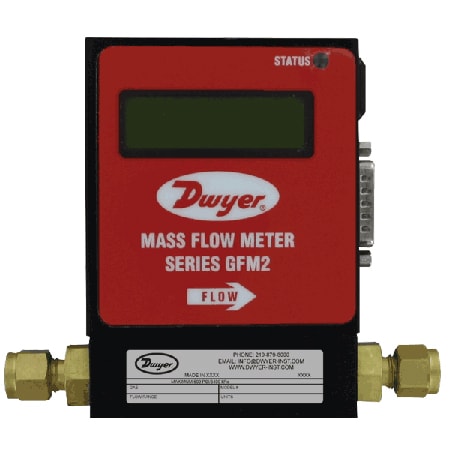

GFM2 Gas Mass Flow Meter, User-Selectable & Relay Outputs, Totalizer
- Straight-tube mass flow meter calibrated for up to 32 gases with user-selectable K-factors
- ±1% of full scale accuracy, ±0.25% repeatability-ideal for precision gas monitoring
- Analog 0-5 V or 4-20 mA output plus two programmable SPDT relays and totalizer
- RS-232/RS-485 digital interface, NIST-traceable calibration, and ≤1×10⁻⁹ cc He/s leak integrity
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
The Series-GFM2 Gas Mass Flow Meter from Dwyer is engineered for high-performance measurement of a wide range of clean gases. Built using a straight-tube sensor with a precision restrictor element, the GFM2 delivers outstanding accuracy (±1% FS) and exceptional repeatability (±0.25% FS).
Tailored for flexible applications, the GFM2 supports user-selectable 0-5 VDC or 4-20 mA analog outputs, two programmable SPDT relay outputs for alarm/control functions, and an optional 2×16-character LCD display capable of representing 23 engineering units. Internal storage accommodates calibrations for up to 32 gases and supports custom K-factor settings.
Connectivity is built-in with RS-232, RS-485 or Profibus digital interfaces, facilitating integration into control systems or multichannel networks. The unit is supplied with a NIST-traceable calibration certificate and features extremely low leak integrity (≤1×10⁻⁹ cc He/s).
With process pressure ratings up to 500 psig and broad compatibility of materials (anodized aluminum, 316 SS, various seal compounds), the GFM2 accommodates demanding industrial conditions across gas flow measurement, process monitoring, and control loop applications.
PDFs & Manuals
Accessories
accessories
110 VAC Power supply, 12 VDC with communication interface branch
0 In Stock
Show Ratings & Reviews
| EXAMPLE | GFM2 | AIR | 010 | A | B | A | L | A | 2 | Series GFM2-AIR-010-A-B-A-L-A-2, Gas Mass Flow Meter |
| SERIES | GFM2 | GFM2 Gas Mass Flow Meter | ||||||||
| SPECIALTY GAS K FACTOR AND DESIRED GAS |
AIR AR C2H2 C3H8 C4H10 CH4 CO CO2 HE HF H2 N2 NH3 O2 SO2 |
1.0000 Air 1.4573 Argon 0.5839 Acetylene 0.3500 Propane 0.2631 Butane 0.7175 Methane 1.0000 Carbon Monoxide 0.7382 Carbon Dioxide 1.4540 Helium 0.9998 Hydrogen Fluoride 1.0106 Hydrogen 1.0000 Nitrogen 0.7310 Ammonia 0.9926 Oxygen 0.6900 Sulfur Dioxide |
||||||||
| BODY SIZE | 010 050 100 |
Low Flow Medium Flow High Flow |
||||||||
| BODY MATERIAL | A S |
Aluminum Stainless Steel |
||||||||
| SEAL MATERIAL | B E T V |
Buna-N EPR PTFE Fluoroelastomer |
||||||||
| FITTINGS | A B D |
1/4” Compression (low) 1/8” Compression (medium) 3/8” Compression (high) |
||||||||
| DISPLAY | L N |
LCD Display No Display |
||||||||
| OUTPUT SIGNAL | A B |
0-5 VDC 4-20 mA |
||||||||
| DIGITAL INTERFACE | 2 5 9 |
RS232 RS485 Profibus |
