GPR-1500A

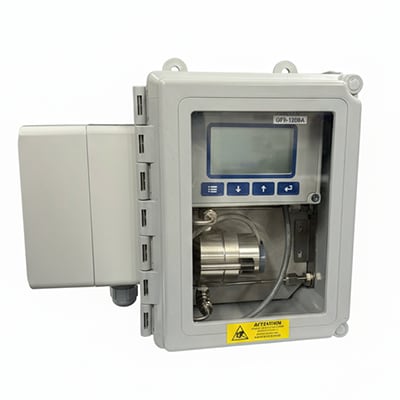

General Purpose Industrial PPM Oxygen Analyzer
- Wall mount O2 Analyzer with analog and digital outputs
- 2 user configurable alarm set points
- Can be calibrated in ambient air
Product Overview
- Accuracy ± 2 %
- Calibration Yes
- Calibration Interval 1 to 3 Months
- Control Output 2 x Form A
- Data Logging No
- Direct Measurement Range up to 10,000 ppm (1 %)
- Display Resolution 0.01, 2 dp
- Display Type 3.5 Digit LCD
- Electrical Output RS485 with 4 to 20 mA
- Enclosure Ratings NEMA Type 3R
- Form factor Analyzer
- Housing Material 304 Stainless Steel
- Linearity 0.01
- Material Construction Option General Purpose
- Measurement Type Oxygen
- Mounting Orientation Wall Mount
- Operating Pressure Range 5 to 30 psi
- Operating Temperature, Max 113 °F
- Operating Temperature, Min 41 °F
- Operational Life 24 months
- Output Resolution 0.01 ppm
- Process Connection Size 1/8 in
- Process Connection Type Compression Fitting
- Sensitivity 0.05 ppm
- Series ID GPR-1500A
- Shelf Life 6 months
- Supply Power Type Loop Powered
- Supply Voltage 12 to 24 Vdc
- Temperature Compensation Yes
- Volumetric Flow Rate, Max 2 SCFH
- Volumetric Flow Rate, Min 1 SCFH
Supported Applications
The AIi GPR-1500 and GPR-1500A series are PPM Oxygen Transmitters/Analyzers designed for general purpose or hazardous area use. These single-channel instruments perform precise trace oxygen analysis and percentage oxygen measurement in clean gas environments. The series supports applications requiring electrochemical sensor technology optimized for specific background gases, including carbon dioxide (CO₂), helium (He), and hydrogen (H₂).
Operating Conditions & Performance
The GPR-1500A operates within an ambient temperature range of +5 °C...+45 °C (+41 °F...+113 °F) with a humidity rating of 0...80 %rh non-condensing. The analyzer accepts a power supply of 12-28V DC (specifically configured as B1 - 12-28VDC in the ordering code). Process pressure is rated for 5...30 psi (0.4...2.1 bar).
Measurement capabilities include four primary ranges: 0-10 ppm, 0-100 ppm, 0-1000 ppm, and 0-1% O₂, with an additional 0-25% range available for air calibration. The series offers a resolution of 0.01 ppm for PPM ranges and 0.001 % for percentage ranges. Response time (T90) is documented as less than 2 minutes.
The enclosure provides NEMA 4X protection with a fiberglass housing, while the GPR-x500 family data sheet also references NEMA 3R ratings and painted aluminum construction options depending on configuration. Wetted materials include stainless steel pipe-work and sensor housings.
Configuration Options
The series is configurable across hazardous area certifications, sample systems, sensors, and output signals to meet specific installation needs.
- Hazardous Configuration: Options include B1 for General Purpose or B2 for cMETus, ATEX (II 1G Ex ia IIC T4 Ga Tamb (-20 °C...+50 °C)), IECEx, and UKEX approvals. The B2 option includes an Intrinsically Safe Barrier supplied loose.
- Sample Systems: Configurable as C0 (no sample system required), C1 (A-4442 Coalescing filter fitted on inlet), or C2 (sample panel fitted).
- Sensors: Available options include D1 (GPR-12-333 standard PPM sensor), D2 (XLT-12-333 for CO₂ & acidic background gases), and D3 (GPR-12-333-H for H₂ & He background gases).
- Output Signals: The GPR-1500A supports 4-20mA, 1-5V DC output, and Modbus communications. The GPR-1500 model is a 4-wire powered transmitter with 4-20mA output.
- Certificates: An M2 option provides an NIST Calibration Certificate.
Key Product Differences
The GPR-1500 and GPR-1500A models differ primarily in their power architecture, output flexibility, and communication capabilities. The GPR-1500 is defined as a 4-wire powered transmitter with a fixed 4-20mA output. In contrast, the GPR-1500A functions as an industrial analyzer offering selectable outputs of 4-20mA or 1-5V DC and includes Modbus communications.
Both models share identical measurement ranges (0-10 ppm through 0-1% O₂ plus air calibration), stainless steel wetted materials, and the same sensor options for general purpose, acidic/CO₂, and H₂/He environments. The ordering code structure reflects these differences: GPR-1500 uses a hazardous configuration slot (B1/B2) as its second feature, whereas GPR-1500A utilizes a power supply selection (B1 - 12-28VDC) in that position.
