Series-GBC

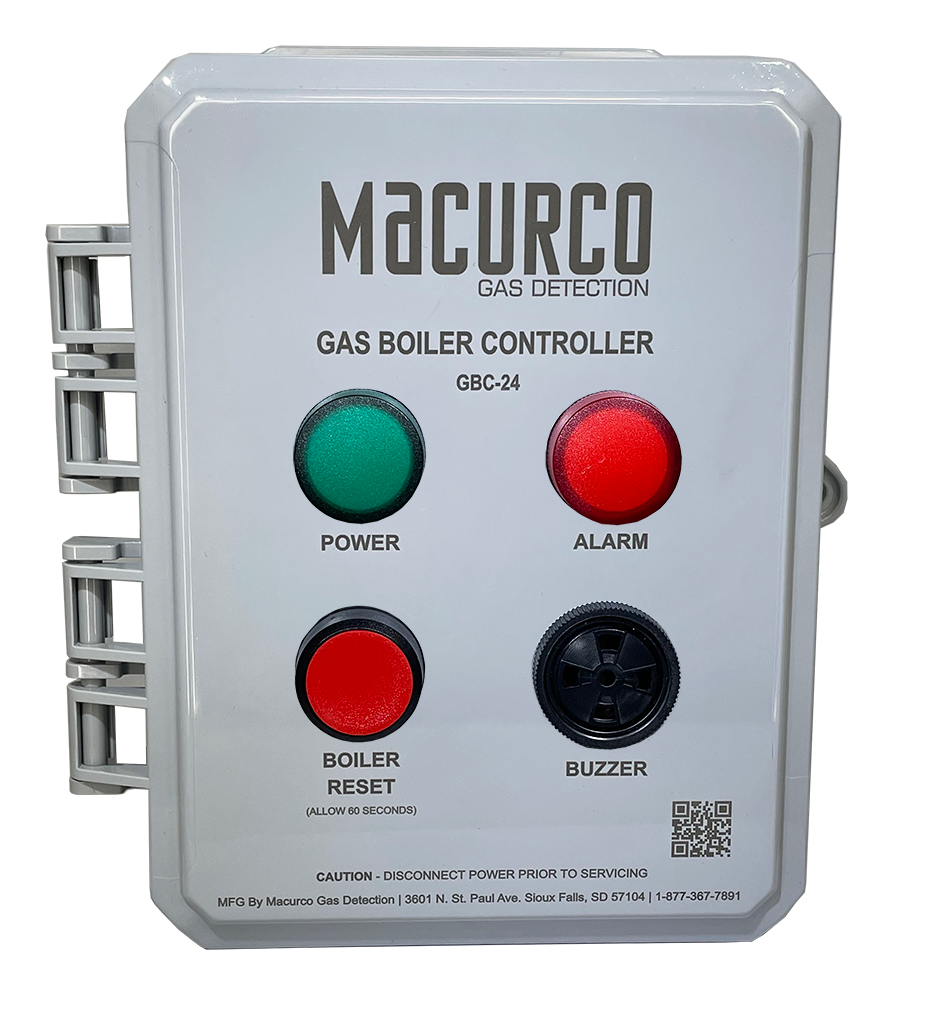

Gas Boiler Controller

(0)

Shutdown up to 8 boilers individually via expansion relays
24 Vac/Vdc / 120 Vac
Customize up to 8 10A SPDT Relays (sets of 2)
Customize up to 4 expansion relay boards
24VDC driver for horn/strobe
Opaque Polycarbonate, NEMA 4X (IP66)
Audible Buzzer
Output power supports up to 4 detectors
Made in America

See Product Overview

Series-GBC

From ^$ 1,110.00

Shop Models

8 Variations available

See all series options below

Data Sheet

Product Overview

Additional Features Shutdown up to 8 boilers individually via expansion relays. Customize up to 8 10A SPDT Relays (sets of 2).Customize up to 4 expansion relay boards.24VDC driver for horn/strobe
Alarm Indication Green Light – Powered Up, Red Light – Alarm Condition and audible buzzer
Applications Boilers, Power Plants & Boilers
Audible Alarm 90 dB @ 1 ft
Buzzer Audible Buzzer
Compatible Sensors Note Supports up to 4 Macurco gas detectors (e.g., CM-6, GD-6).
Current Output 10 A
Enclosure Ratings IP66, NEMA Type 4X
Enclosure Ratings Note Opaque polycarbonate construction; NEMA 4X/6P (IP66/68) rated.
Finishing Gray
Height 9.8 in
Materials, Wetted Polycarbonate
Mounting 6 mounting holes
Mounting Note Mount the unit in an appropriate space to see and hear the visual and audible notification and to easily access the reset button. The enclosure comes with one predrilled 3/4” conduit at the bottom center of enclosure (conduit fitting connector not included).
Operating Humidity 0 to 95% RH, non-condensing
Operating Temperature, Max 125 °F
Operating Temperature, Min 32 °F
Overall Depth 4.5 in
Programming jumper settings
Series ID Series-GBC
Supply Power Note Only connect the GBC to Class 2 power supply (24V version only). It is recommended to use an independent transformer for powering the unit(s) due to possible interferences from other devices on the same power supply.
Supply Power Type Electric
Supported Devices Macurco gas detectors (CM-6, GD-6), Horn/Strobes (HS-A, HS-B, HS-C, HS-R, HS-G), Emergency stop button (E-Stop)
Width 8 in
