Model-670

Fume Hood Monitor with Hot Wire Sensor & Mounting Kit for Safe Ventilation

(0)

Models In Stock

Flexible surface or flush mounting
LED safe and alarm status indicators
Audible alarm
Sash alarm input
Night set-back input

See Product Overview

Model-670

From ^$ 1,073.95

Models In Stock

Shop Models

1 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy ± 10 %
Alarm Indication Red LED and Audible Alarm
Control Output Relay
Horn Silence Yes-Temporary and Permanent
LED Indicators Red: Alarm; Green: Normal
Low Air Velocity Alarm Delay 5 s
Mounting Semi Flush, Flush or Surface Mounted
Operating Temperature, Max 86 °F
Operating Temperature, Min 55 °F
Relay Input For Night Setback 2-Wire rated for 24 Vdc usage
Relay Output 5 A @ 250 Vac
Sash High Indication 2-Wire Micro Switch or 3-Wire Proximity Switch Input, rated for 24 Vdc usage
Storage Temperature, Max 150 °F
Storage Temperature, Min -40 °F
Supply Power Note 15 Vdc 500 mA; 120 Vac, 60 Hz power transformer included
Supply Power Type AC/DC
Weight 5 oz

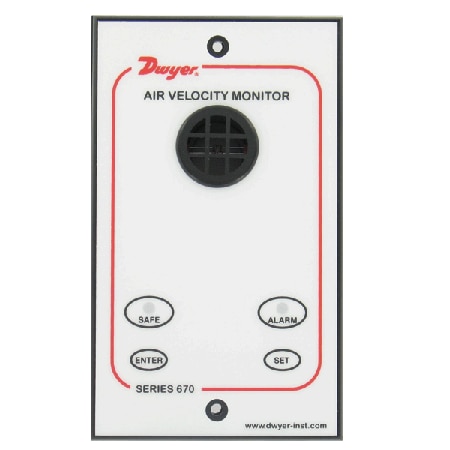

The Model 670 Fume Hood Monitor continuously senses air flow through the face of the fume hood, ensuring safe levels of fresh air are exhausting. The 670 provides a highly accurate hot wire sensor to detect very low flows common on fume hoods. The Model 670 comes with everything required to quickly install the unit including a mounting bracket, 24" of tubing for connecting to the inside of the hood wall and a 120 Volt AC power adapter.
