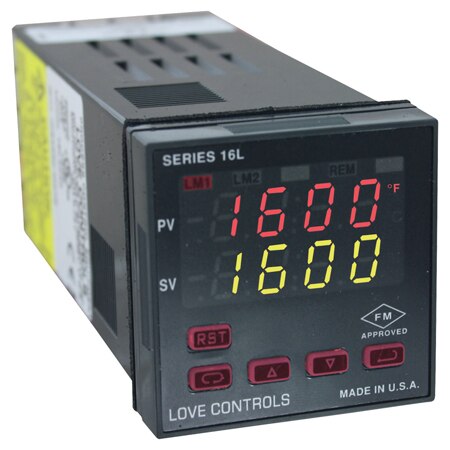

Series-16L

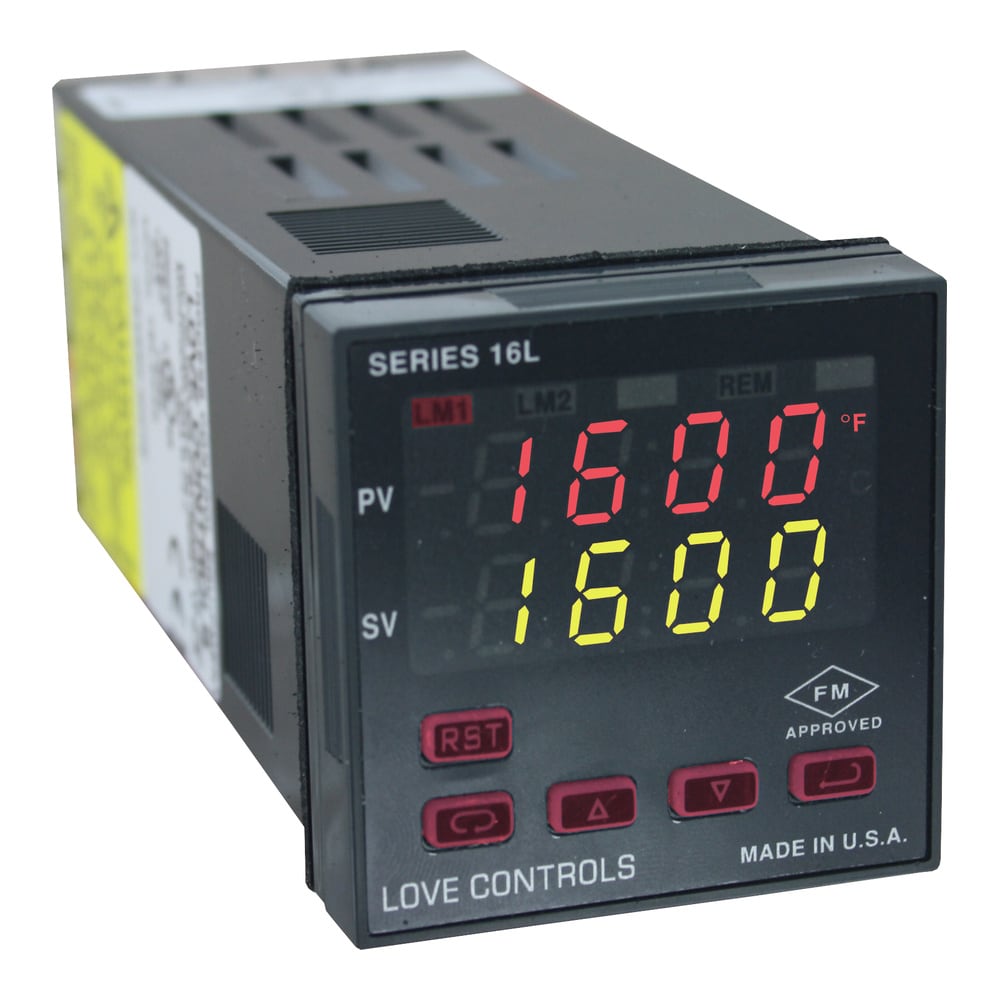

FM Approved Limit Control for Gas Heaters, Universal Input, Set Points

Series-16L

From ^$ 499.90

2 Variations available

Data Sheet

Can't find the right model?

Use our custom configurator to fine tune your product

Product Overview

Accuracy ± 0.25% span ± 1 least significant digit
Compliance cULus, FM
Display Note Two 4 digit, 7 segment 0.3˝ (7.62 mm) high LEDs
Display Type LED
Enclosure Ratings IP66, NEMA Type 4X
Input Control Signal 0 to 20 mA
Input Type Thermocouple, RTD, DC Voltage or DC Current
Memory Backup Non-Volatile
Number of Digits 4
Operating Temperature, Max 131 °F
Operating Temperature, Min 14 °F
Power Consumption max 5 VA
RTD Input Range JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F
Supply Power Note 100-240 VAC, nominal, +10 -15%, 50 to 400 Hz. single phase; 132-240 VDC, nominal, +10 -20%
Supply Power Type AC/DC
Supply Voltage 100 to 240 Vac/132 to 240 Vdc
Temperature Sensor Type RTD or Thermocouple
Thermocouple Input Range Note Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F
Voltage Input Range 0 to 5 V, 0 to 10 V
Weight 8 oz
