Series-TST

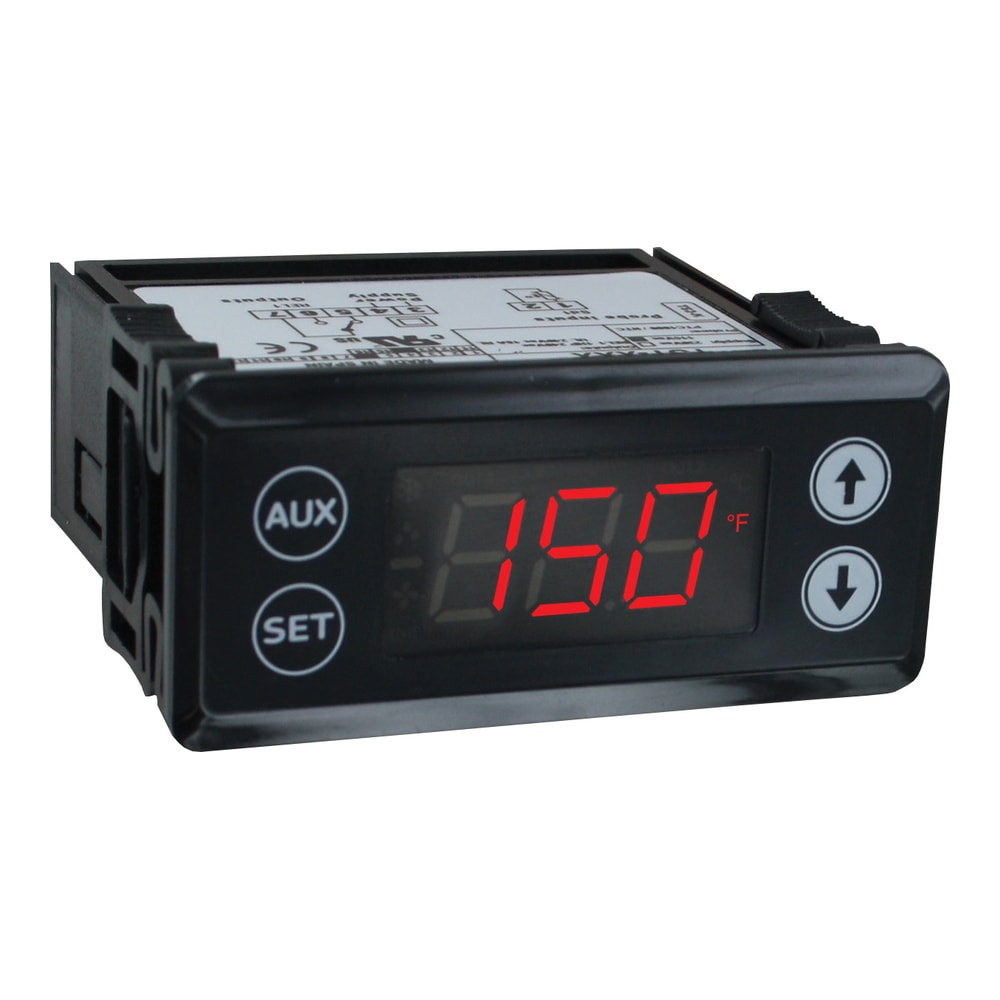

Economical Digital Temp Switch for Heating/Cooling - SPDT Output, Single Probe

(0)

Models In Stock

Buzzer indicates probe/memory error or high/low temperature alarm conditions
Capacitive buttons offer clean panel face design

See Product Overview

Series-TST

From ^$ 73.00

Models In Stock

Shop Models

4 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy ± 1 %
Applications Boilers, Oil, Refrigeration, Refrigeration Equipment
Control Type On/Off
Display Color N/A
Display Note 3-digit, plus sign
Display Type 3 Digit LED
Enclosure Ratings IP65
Horsepower Rating 1 hp
Input Type Thermistor
Memory Backup Non-Volatile
Operating Temperature, Max 131 °F
Operating Temperature, Min 32 °F
Output Detail Relay
Scale N/A
Sensor Type Thermistor
Storage Temperature, Max 176 °F
Storage Temperature, Min -4 °F
Switch Note SPDT relay rated 16 A @ 240 VAC resistive, 10 FLA, 60 LRA
Switch Rating 16 A @ 240 Vac, 10 FLA, 60 LRA
Switch Type SPDT NO/NC, Selectable
Temperature Measurement Range PTC: -50 to 150 °C, NTC: -50 to 110 °C
Temperature Probe Style N/A
Temperature Resolution 0.1 °F

The Series TST Digital Temperature Switch is designed with many heating and cooling applications in mind. This low cost switch is simple to set up with one probe input and SPDT switch output. Programming performed using either the front keypad or through a TS2-K programming key.
