EA2-OL

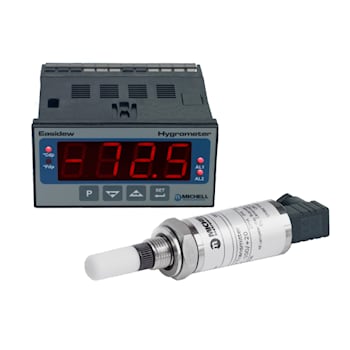

Easidew Online Dew-Point Hygrometer
Product Overview
- Accuracy ± 2 °C (± 3.6 °F)
- Applications Air, Air Dryers, Chemical Refineries, Clean Rooms, Compressor Control, Gases, HVAC, Industrial and Manufacturing, Laboratories, Laboratories and Scientific, Materials and Surfaces, Medical Equipment, Plastic Extruders, Plastic Forming, Plastic Molding, Power Plants & Boilers, R&D/Engineering Testing, Refrigeration, Refrigeration Equipment, Specialty Equipment, Temperature Maintenance
- Calibration Note Traceable 13-point calibration certificate
- Control Output 2 Alarm
- Electrical Connection Mini DIN 43650 C
- Electrical Output 4 to 20 mA
- Factory Setting Sensor fault: 23 mA; Under-range dew point: 4 mA; Over-range dew point: 20 mA
- Form factor 1/8 DIN Panel Mount
- Housing Material 316 Stainless Steel
- Material Construction Option Sampling block 0.8m (2.6' cable assembly)
- Measurement Type Dew point, Moisture
- Number of Wires 2
- Operating Pressure, Max 52.5 MPa
- Oxygen Cleaning Oxygen cleaning not required
- Repeatability 0.5°C (0.9°F) dew point
- Response Time 5 mins to T95 (dry to wet)
- Series ID EA2-OL
- Supply Current 60 mA
- Weight 150 g
The Easidew Online Dew-Point Hygrometer is a 1/8 DIN panel mount device designed for precise moisture measurement with ±2 °C accuracy and 0.5°C repeatability. It features a 4-20 mA electrical output, two alarm control outputs, and operates up to 52.5 MPa. With a 5-minute response time to T95, it ensures reliable dew-point monitoring compliant with EN61010-1 standards.
