EA2-IS-TX

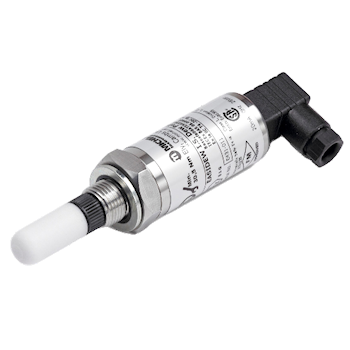

Easidew Intrinsically Safe dew-point Transmitter
- Measurement ranges -110 up to +20 °Cdp
- Dew point or ppmV moisture content output
- 2-wire loop power connection
EA2-IS-TX
From
$
3,231.00
Product Overview
- Accuracy ± 2 °C (± 3.6 °F)
- Applications Air, Chemical Refineries, Clean Rooms, Compressor Control, Gases, Laboratories, Paint Finishing, Power Generation, Power Plants & Boilers, Waste Water Applications
- Calibration Note Traceable 7-point calibration certificate
- Compensated Temperature, Max 50 °C
- Compensated Temperature, Min -20 °C
- Dimensions Note L=132 mm x ø45 mm (with connector)
- Electrical Connection DIN 43650-C 3-pin
- Electrical Output 4 to 20 mA
- Flow Rate Note 1 to 5 Nl/min mounted in standard sampling block;0 to 10m/sec direct insertion
- Galvanic Isolation KFD0-CS-EX1.50P,KFD0-CS-EX2.50P,KFD2-STC4-EX1.H
- Height 132 mm
- Housing Material 316 Stainless Steel
- Length 45 mm
- Load Resistance Max 250 Ω @ 12 V (500 Ω @ 24 V)
- Number of Wires 2
- Operating Pressure, Max 52.5 MPa
- Operating Temperature, Max 60 °C
- Operating Temperature, Min -40 °C
- Proof Pressure Up to 13053 psi
- Repeatability 0.5 °C (0.9 °F) dew point
- Response Time 5 mins to T95 (dry to wet)
- Series ID EA2-IS-TX
- Storage Temperature, Max 60 °C
- Storage Temperature, Min -40 °C
- Supply Voltage 12 to 28 Vdc
- Weight 150 g
The Easidew Intrinsically Safe dew-point Transmitter provides accurate moisture measurement with ±2 °C accuracy and 0.5 °C repeatability. Designed for hazardous areas, it features a 4 to 20 mA output and complies with ATEX, CE, and UKCA standards. It operates up to 52.5 MPa pressure and delivers a fast 5-minute response time to T95. Easy to install and reliable for safe moisture monitoring.
