EA2-TX

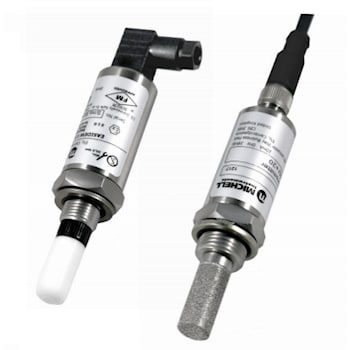

Easidew 2-wire Dew-Point Transmitter
- Measurement ranges -110 up to +20 °Cdp
- Dew point or ppmV moisture content output
- Accuracy ±2 °Cdp
Product Overview
- Accessory Type Flange for 5/8” 18 UNF & 3/4” 16 UNF process connections
- Accuracy ± 2 °C (± 3.6 °F)
- Accuracy Detail ±2°C (±3.6°F) dew point, ±2°C (±3.6°F) dew point
- Applications Air, Air Dryers, Chemical Refineries, Clean Rooms, Clean Water and Purified Solutions, Compressor Control, Filter Monitoring, Flow Measurement, Gases, HVAC, Industrial and Manufacturing, Natural Gas Compressors, Power Plants & Boilers, R&D/Engineering Testing, Refrigeration, Refrigeration Equipment, Temperature Maintenance, Waste Water Applications
- Calibration Note Traceable 13-point calibration certificate
- Compensated Temperature, Max 50 °C
- Compensated Temperature, Min -20 °C
- Compliance Note ATEX/UKCA: II 1 G Ex ia IIC T4 Ga (-20 to +70 °C) IECEx: EX ia IIC T4 Ga (-20 to +70 °C) TR CU @ 0Ex ia IICT4 Ga (-20 to +70 °C) cQPSus: Class I, Division 1, Groups A, B, C & D, T4 Class I, Zone 0, AEx ia IIC T4 Gb, Ex ia IIC T4 Gb Tamb +70 °C, ATEX/UKCA: II 1 G Ex ia IIC T4 Ga (-20 to +70 °C) IECEx: EX ia IIC T4 Ga (-20 to +70 °C) TR CU @ 0Ex ia IICT4 Ga (-20 to +70 °C) cQPSus: Class I, Division 1, Groups A, B, C & D, T4 Class I, Zone 0, AEx ia IIC T4 Gb, Ex ia IIC T4 Gb Tamb +70 °C
- Dimensions Note MiniDIN 43650 form C L=132mm x ø45mm (with connector cable), MiniDIN 43650 form C L=132mm x ø45mm (with connector cable)
- Electrical Connection Mini DIN 43650 C
- Electrical Output 4 to 20 mA
- Enclosure Ratings IP66, NEMA Type 4
- Factory Setting Sensor fault: 23 mA; Under-range dew point: 4 mA; Over-range dew point: 20 mA
- Flow Rate Note 1 to 5 Nl/min mounted in standard sampling block; 0 to 10 m/sec direct insertion
- Galvanic Isolation KFD2-CR-EX1.20200,KFD2-CR-EX1.30200,KFD0-CS-EX1.50P,KFD0-CS-EX2.50P,KFD2-STC4-EX1.H,MTL5041,MTL5040
- Height 132 mm
- Housing Material 316 Stainless Steel
- Length 45 mm
- Load Resistance Max 250 Ω @ 14 V (500 Ω @ 24 V)
- Operating Pressure, Max 52.5 MPa
- Operating Temperature, Max 60 °C
- Operating Temperature, Min -40 °C
- Process Connection Size 5/8 in
- Process Connection Type UNF Male
- Repeatability 0.5°C (0.9°F) dew point
- Response Time 5 mins to T95 (dry to wet)
- Series ID EA2-TX
- Storage Temperature, Max 60 °C
- Storage Temperature, Min -40 °C
- Supply Current 23 mA
- Supply Voltage 12 to 28 Vdc
- Weight 150 g
Designed with real-world installs in mind, the Easidew 2-Wire Dew-Point Transmitter (EA2-TX) helps you connect measurements to your control loop. It helps reduce guesswork by keeping readings clear and consistent. It balances durable construction with user-friendly operation. It keeps measurements moving to your system without extra fuss.
