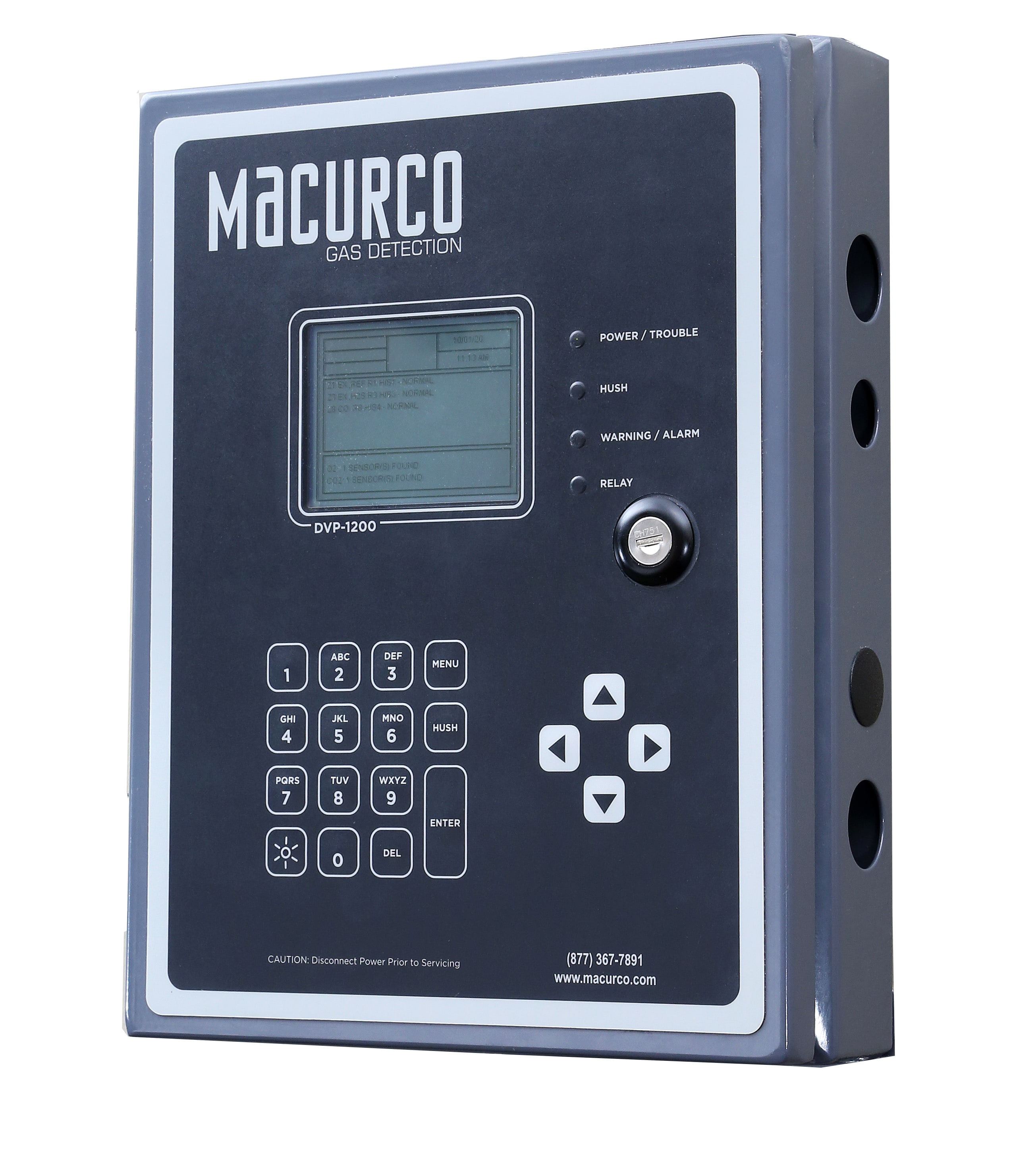

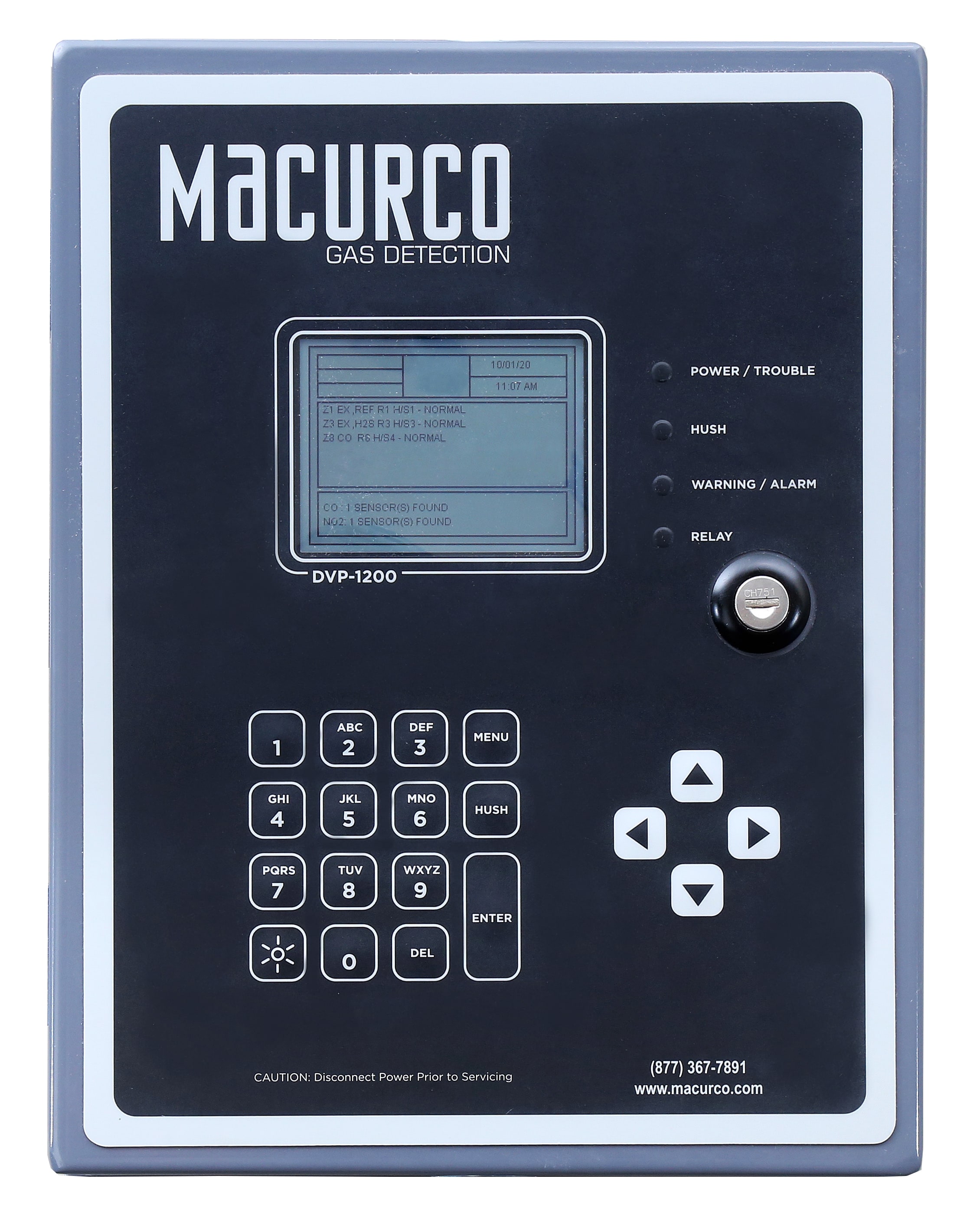

DVP-1200 Control Panel
Click and hold to zoom
DVP-1200 Control Panel
Click and hold to zoom
DVP-1200 Control Panel
Click and hold to zoom

DVP-1200-Series

DVP-1200 Control Panel

(0)
  • 192 digital channels
  • 90-250 VAC input
  • Up to 12 relays, Standard with four onboard relays • Up to four optional onboard expansion relays (+2 or +4), Can be connected to two remote relay boxes (two relays in each box)
  • BACnet IP (ethernet connection)
  • (4) 24VDC outputs for alarm, trouble, remote notification
  • (3) 4-20mA outputs for VFD control
  • Coverage Area: Up to 1,440,000 sq. ft.
  • Compatible with all Macurco 6-Series gas detectors
  • Meets the Uniform Building Code and OSHA 50ppm CO requirements. (Enclosed Parking Garages)
  • Made in America
DVP-1200-Series
From $ 4,200.00
Shop Models
3 Variations available
See all series options below
DVP-1200-SeriesData Sheet

Data Sheet
DVP-1200 Control Panel DVP-1200-Series DVP-1200-Series
Product Overview
  • Additional Features Up to 12 relays, Standard with four onboard relays, Up to four optional onboard expansion relays (+2 or +4), Can be connected to two remote relay boxes (two relays in each box),(4) 24VDC outputs for alarm, trouble, remote notification,(3) 4-20mA outputs for VFD control
  • Audible Alarm 90 dB @ 1 ft
  • Compliance Note Meets the Uniform Building Code and OSHA 50ppm CO requirements. (Enclosed Parking Garages)
  • Control Output Four SPDT Relays; Four DC Drivers
  • Coverage Area 1,440,000 sq ft
  • Current Output 4 to 20 mA
  • Data Interface Note Ethernet: Integrated port supports BACnet IP communication for building automation system integration. RS-485: Provides three channels supporting up to 192 total addressable detectors, with a maximum of 64 detectors per channel.
  • Data Logging Event logging of all fault conditions
  • Display Resolution 320 x 240 Pixels
  • Finishing Gray/Black
  • Height 13 in
  • Mounting Wall mount (mounting holes in each corner)
  • Number of Channels 192 digital channels
  • Operating Humidity 0 to 95% RH, non-condensing
  • Operating Temperature, Max 104 °F
  • Operating Temperature, Min 32 °F
  • Output Detail Relay Output 1 to 4: SPDT Relay rated for 120/240 Vac, 10 A Max (resistive); DC Driver Output 1 to 4: 24 VDC, maximum 250 mA
  • Overall Depth 2.75 in
  • Product Compatibility Compatible with all Macurco 6-Series gas detectors
  • Programming external keypad
  • Series ID DVP-1200-Series
  • Supply Power Type Electric
  • Supply Voltage 90 to 250 Vac
  • Voltage Output 24 Vdc
  • Width 10 in

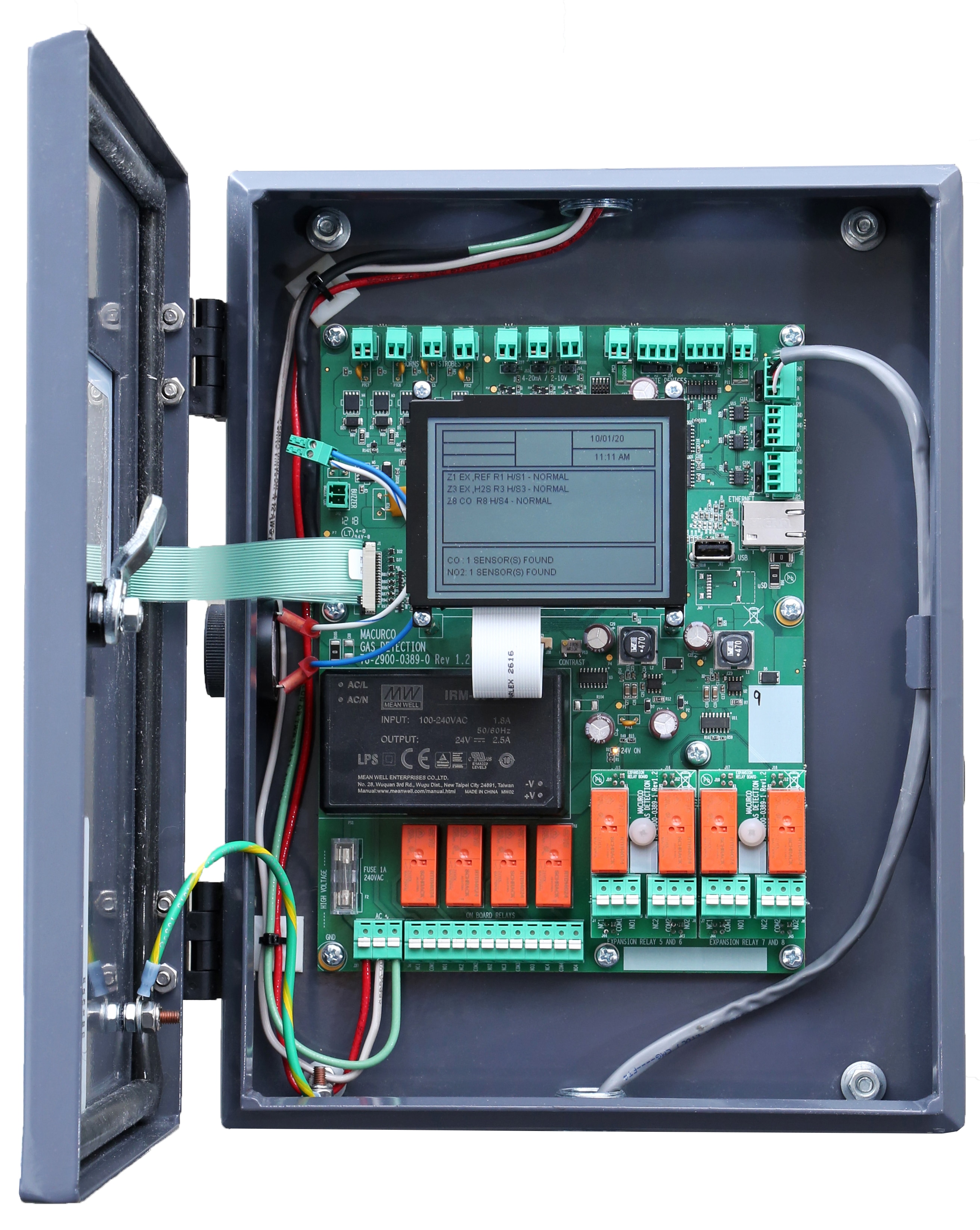

The Macurco DVP-1200 control panel offers an expandable system with up to 192 addressable detectors in the field. The DVP-1200 comes standard with four relays, as well as expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP. The DVP-1200 can be connected to up to two remote relay boxes with each remote relay box containing two relays. ETL Listed

Accessories

EXP-AI
$150.00 / each
EXP-AO
$340.00 / each
EXP-Relay
Macurco Expansion Relay Board, 2-Relay, 250 VAC, 10 A
$155.00 / each
