DVP-120

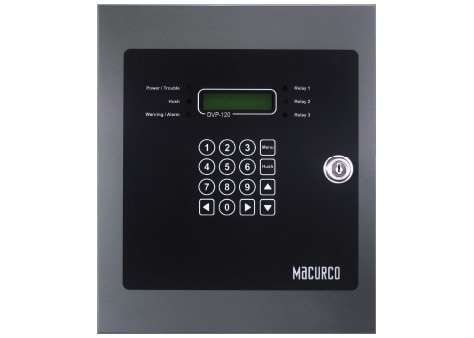

DVP-120 Control Panel

99 digital input channels
12 analog (4-20mA) & 87 digital input channels
90-250 VAC input
Three 10A SPDT Fan / Alarm Relays
BACnet MSTP output
Two 24VDC drivers for Horn / Strobe
Coverage Area: Up to 742,500 sq. ft.
Compatible with all Macurco 6-Series gas detectors
Designed to Comply to California Title 24 Energy Efficiency Standards
Meets the Uniform Building Code and OSHA 50ppm CO requirements. (Enclosed Parking Garages)
Made in America

DVP-120

From ^$ 2,700.00

Shop Models

1 Variations available

Data Sheet

Product Overview

Alarm Indication Red LED, Audible Alarm
Control Output Three SPDT Relays; Two DC Drivers
Coverage Area 742,500 sq ft
Data Logging No
Display Type LCD
Finishing Gray/Black
Height 10.5 in
Mounting Wall mount (mounting holes in each corner)
Mounting Note Mounting holes in each corner.
Operating Humidity 0 to 90% RH, non-condensing
Operating Temperature, Max 120 °F
Operating Temperature, Min 32 °F
Output Detail Output Relays 1 to 3: SPDT, 120/240 Vac, 10 A resistive; DC Driver 1: 24 Vdc, maximum 250 mA; DC Driver 2: 24 Vdc, maximum 250 mA
Overall Depth 2 in
Programming external keypad
Series ID DVP-120
Sound Output 90 dBA @ 1ft
Standards Meets the Uniform Building Code and OSHA 50ppm CO requirements. (Enclosed Parking Garages)
Supply Power Note Two 24VDC drivers for Horn / Strobe
Supply Power Type Electric
Supply Voltage 90 to 250 Vac
Voltage Output 24 Vdc
Width 12.5 in
