Series-A6

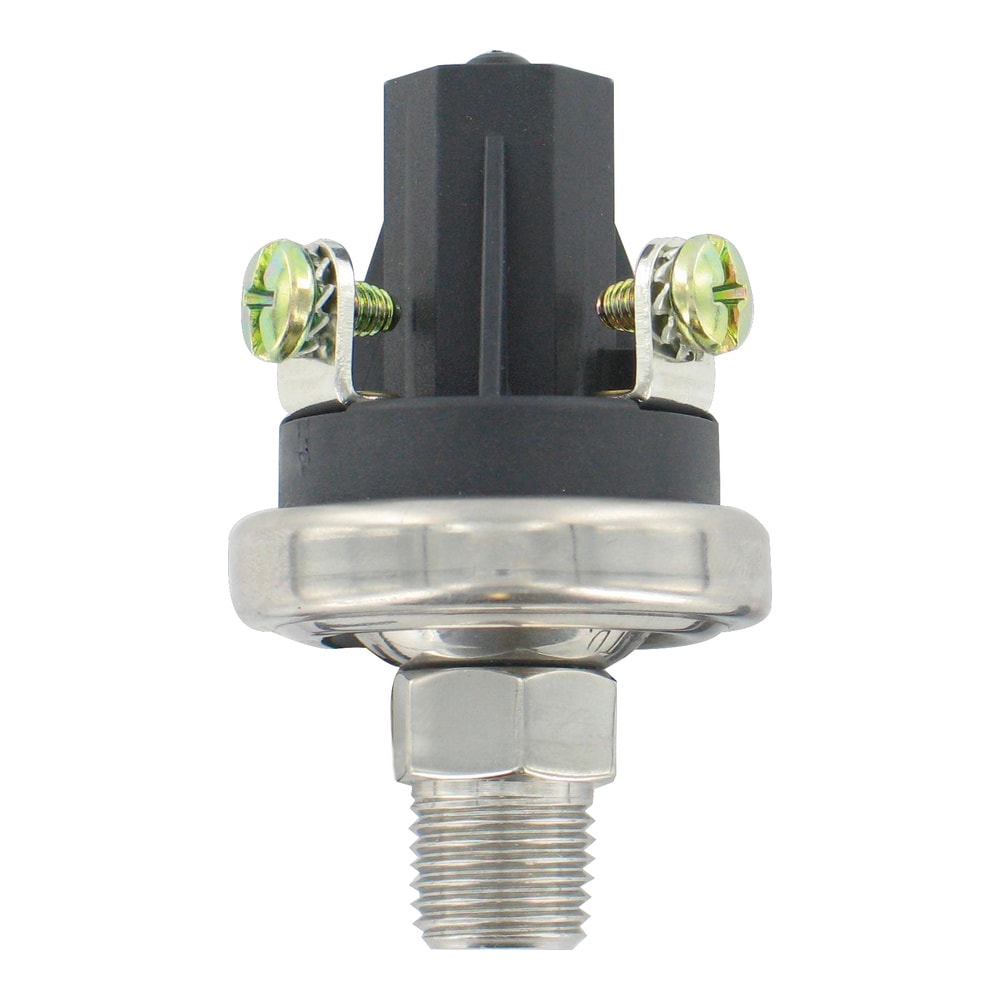

Durable Pressure Switches – Polyimide Diaphragm – 1/4 in NPT Male

5.0

(2)

Models In Stock

High switch cycle means long life for extended duty applications
Mounting in any position and feature simple makes a reliable switching for equipment and OEM applications

See Product Overview

Series-A6

From ^$ 34.85

Models In Stock

Shop Models

15 Variations available

See all series options below

Data Sheet

Product Overview

Burst Pressure 750 psi Maximum
Decreasing Pressure, Min 0.5 psi
Electrical Connection Screw Terminal
Enclosure Ratings IP65
Increasing Pressure, Min 1.1 psi
Materials, Wetted Brass, Steel
Media Compatibility Hydraulic fluids, Oils / lubricants, Oil
Mounting Orientation Not Position Sensitive
Operating Temperature, Max 248 °F
Operating Temperature, Min -40 °F
Measurement Pressure Type Gauge
Process Connection Size 1/4 in
Process Connection Type NPT Male
Proof Pressure Up to 500 psi
Repeatability ± 10%
Repeatability Note ± 10% of set point
Series ID Series-A6
Set Point Adjustment Internal Screw
Set Point Tolerance ± 15% of range
Switch Note 1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC
Switch Rating 15 A @ 6 Vdc, 8 A @ 12 Vdc, 4 A @ 24 Vdc; 1 A @ 120 Vac, 0.5 A @ 240 Vac
Switch Type SPST NO/NC
Weight 0.13 lb

Series A6 Durable Pressure Switches have been specifically designed to stand up to extended duty applications. These switches are constructed with a polyimide film diaphragm and are compatible with a variety of fluids. For ease of installation, the switches come with a 1/4" male NPT process connection and can be mounted in any orientation. The Series A6 pressure switches are compact and have great set-point integrity, and feature simple, easy set-point field adjustment.
