Series-TL25

Supported Applications

The Weiss Series TL is a line of general service pressure gauges designed for HVAC and industrial applications. These instruments measure pressure, vacuum, or compound ranges on media including air, oil, water, gas, and other mediums that do not attack brass.

Operating Conditions & Performance

The Series TL features a 2 1/2" dial size with an accuracy of ± 2% for the middle third of the entire range. The gauges are rated to ANSI-ASME B40.1 Grade B and operate within an ambient temperature range of -40°F to 150°F (noted as 140°F in series title context, source specifies -40/150°F). Wetted materials include bronze, brass, phosphor bronze, and copper alloy.

Measurement ranges available for the Series TL25 configuration span from low-pressure vacuum to high-pressure applications:

• Pressure (psi): 0-15 psi through 0-600 psi
• Vacuum: 0-30"Hg
• Compound: Ranges such as 30"Hg-15psi, 30"Hg-30psi, up to 30"Hg-150psi

Dual scale options are available for ranges from 15 psi through 200 psi (dual scale - psi & Ft H2O) and all dial ranges in dual scale formats of psi & kPa or psi & Kg/cm².

Configuration Options

The Series TL offers configurable process connections, mounting styles, and graduation scales to accommodate specific installation requirements. The 2 1/2" model (TL25) supports the following configurations:

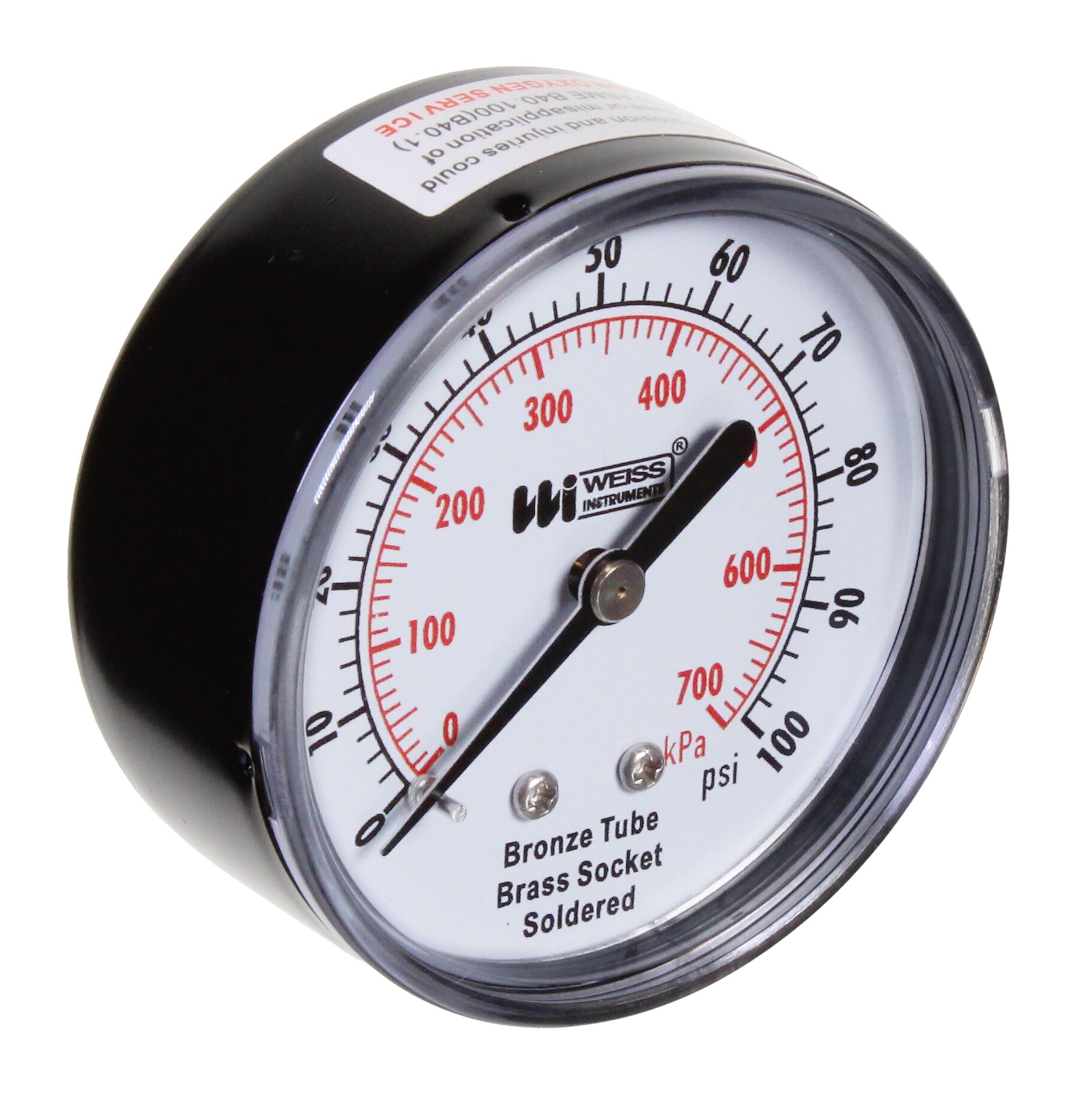

• Dial Size: 2 1/2"
• NPT Connection Sizes: 1/8" or 1/4" NPT
• Connection Location:

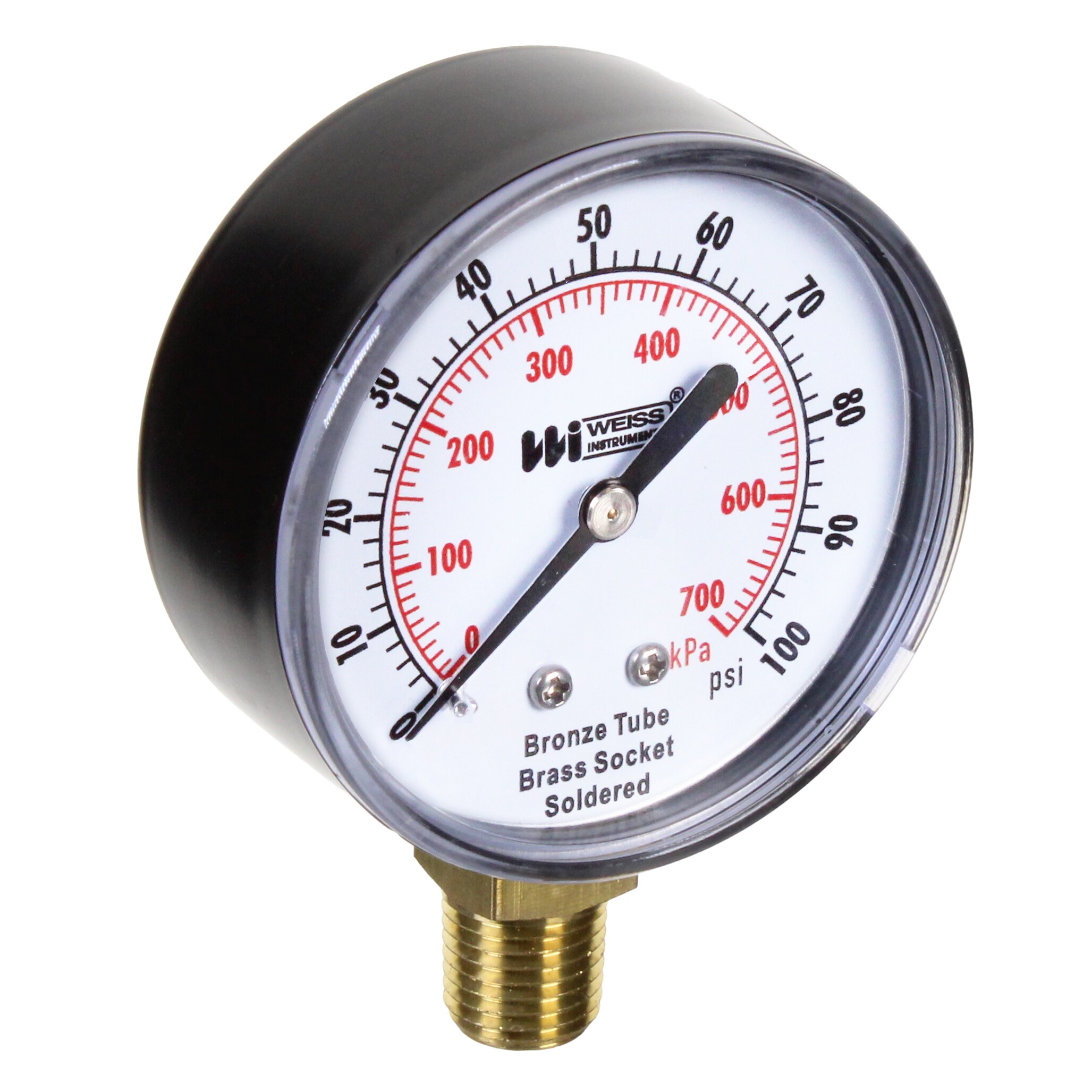

• Lower connection (e.g., model suffix "L")
• Center back connection (e.g., model suffix "B")
• Housing Material Options: Drawn steel, stainless steel, ABS (Polycarbonate), or black drawn steel.
• Graduations: Standard graduations vary by range; for example, the 0-15 psi range has a figure interval of 1 and minor graduation of 0.5, while the 0-600 psi range lists a figure interval of 50 with a minor graduation of 10.

For steam service applications, a coil type syphon is available as an option to protect the gauge from excessive temperature. A U-clamp is also offered for panel mount applications on specific series configurations within the broader catalog context.

Key Product Differences

The Series TL family includes multiple dial sizes (1 1/2", 2", 2 1/2", 3 1/2", and 4 1/2") with corresponding model codes such as TL15, TL20, TL28, TL25, TL35, and TL45. The Series TL25 specifically denotes the 2 1/2" dial size.

Model numbers follow a structured guide: TL - <DIAL SIZE> - <RANGE CODE> - <SIZE & LOCATION>. For example, TL25-015-4L indicates a 2 1/2" dial (TL25), 0-15 psi range (015), with a 1/4" lower connection (4L). Variations in the suffix denote the NPT size and location: "8L" for 1/8" Lower, "8B" for 1/8" Center Back, "4L" for 1/4" Lower, and "4B" for 1/4" Center Back.

While the Series TL25 is available in pressure, vacuum, and compound ranges, specific range availability may vary by catalog number. For instance, certain high-pressure or specialized compound ranges are not offered on all dial sizes within the broader series family (e.g., "Ranges not available on Catalog No. TL15"). The 4CTA gauges have distinct limitations where some ranges are not offered.
