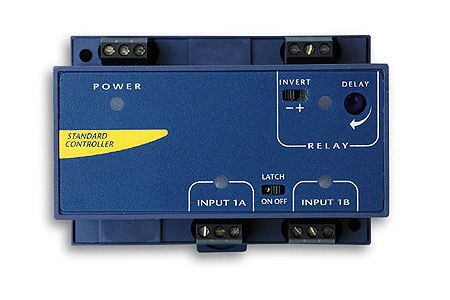

LVCN130
Dual Input Automatic Fill/Empty Relay Controller
- Latched 10 Amp SPDT Relay
- Controls Pumps, Valves, and Actuators
- Selectable Latch On or Off Relay
- Designed for Panel Installation on EN 50 022 Standard 35 mm DIN Rail
Product Overview
- Status Control false
- Base Mounting EN 50 022 standard 35 mm DIN rail or panel mount
- Control Output SPDT Relay
- Enclosure Material Polypropylene
- Height 2.7 in
- Horsepower Rating 1/2 HP
- Length 3.6 in
- Materials, Wetted Polypropylene
- Mounting 35 mm DIN Rail or Panel
- Output Detail Isolated and sealed single pole double throw (SPDT) relay, Form C
- Power Consumption 5 W
- Process Temperature, Max 70 °C
- Relay Voltage, Max 250 Vac
- Sensor Excitation Nominal 13.5 Vdc, 27 mA maximum
- Supply Power Note Selectable, 120 or 240 Vac, 50 to 60 Hz.
- Supply Voltage 120/240 Vac
- Switch Operation Selectable, NO or NC states
- Switching Current 10 A
- Time Delay 0.15 to 60 sec
- Trigger Dry < 12 mA , wet > 12 mA
- Width 3.9 in
The LVCN-130 dual sensor controller accepts two sensor inputs for automatic filling and emptying operations. The latched 10 amp relay provides the control interface with pumps and valves. The controller has a time delay feature dampening out relay chatter. Other features include selectable normally open or normally closed relay states and latch on or off relay conditions. The controller is designed for installation on EN 50 022 standard 35 mm DIN Rail or it can be panel mounted.
