DMK-1-Series
DMK-1 Duct Mount Kit for Commercial Gas Monitors
Models In Stock
- Provides detection and monitoring of gas concentrations in ventilation ducts

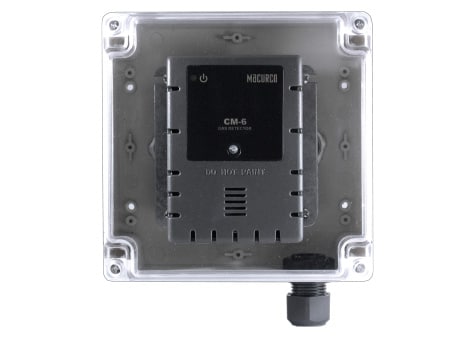

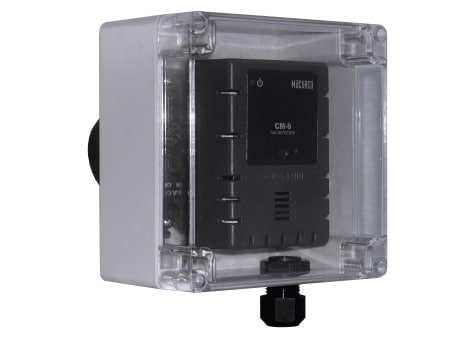

- Clear cover allows view of detector, displays and status lights
- Airtight enclosure
DMK-1-Series
From
$
300.00
Models In Stock
Product Overview
- Accessory Mounting Duct Mount
- Applications Air, Air and HVAC, Building and Maintenance, Clean Rooms, HVAC, Laboratories
- Color Options Clear
- Compatibility Compatible With: Standard 4" x 4" detectors and the 6/12 series (CX-6, CM-6, GD-6, TX-6-ND, TX-6-HS, TX-6-AM, OX-6, CD-6MC, and CD-6G); Not Compatible With: CM-E1 and GD-2B without a 4" single gang mud-ring.
- Enclosure Note Clear cover allows view of detector, displays and status lights
- Enclosure Ratings Note Airtight enclosure
- Enclosure Type Airtight enclosure
- Height 6.25 in
- Housing Material Note Injection Molding Grade, Flame Retardant, UV Stabilized
- Kit Description Enclosure with cover, gasket and screws; Standoffs - hex aluminum; Machine screws - Phillips head; Strain relief/seal for wiring exit hole; Nut for strain relief; Sheet metal mounting screws; Foam compression seals; Full-size drill hole position template; Exhaust tube
- Mounting Duct Mount
- Mounting Note Single gang type detectors, CM-E1 and GD-2B, will need a 4" single gang mud-ring for installation.
- Operating Temperature, Max 125 °F
- Operating Temperature, Min 0 °F
- Overall Depth 3.5 in
- Series ID DMK-1-Series
- Supply Power Type Electric
- Width 6.25 in
The Macurco DMK-1 is an airtight enclosure that provides a means to mount any Macurco gas detector to an air duct. By duct mounting a Macurco gas detector, it is able to monitor the air inside of the duct and provide early detection of your target gas moving through the HVAC system. The DMK-1 used with Macurco gas detectors can provide automatic control to prevent recirculation of these gases into additional areas by the air handling systems, fans, and blowers in commercial and residential applications.
Show Ratings & Reviews
Do you have a data sheet for this DMK-1 unit? Is it USB to Modubus?
The DMK-1 is a din rail mounting kit for D6000 or D8000 series modules. See links to our modules.
https://www.omega.com/en-us/communication-and-connectivity/data-acquisition-modules/p/D6000-Series?searchterm=d6000
https://www.omega.com/en-us/communication-and-connectivity/data-acquisition-modules/p/D8000-Series?searchterm=d8000
Date published: 2020-05-13
Is there a dimensional sheet for the mounting footprint?
Hello, thank you for your question. You can find the dimensional drawing on page 3 of the PDF spec sheet. There is a link on the product page bellow the picture of the unit.
Date published: 2024-04-01
