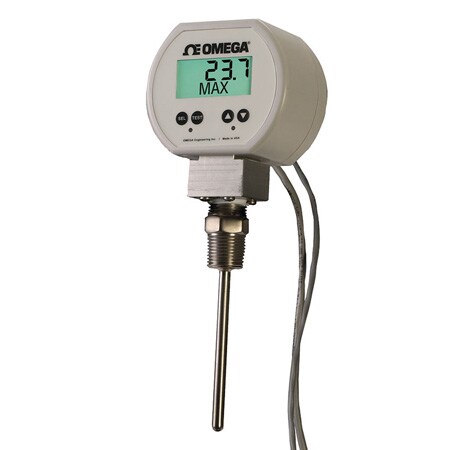

PRTXB-PRTXAL
Digital Temperature Gage
- 100 Ω 316 SS Sheath Platinum RTD Probe Included
- Battery Powered Display
- Gauge Capture Minimum and Maximum Readings
- Selectable Units and Auto Shutoff Times
PRTXB-PRTXAL
From
$
690.14
Product Overview
- Accuracy ± 0.3 °C
- Accuracy Detail Includes linearity, hysteresis, repeatability ±0.3°C at 0°C, ±1.1°C at 150°C, 11-point linearization
- Display Measuring Units °C, °F
- Enclosure Ratings IP65, NEMA Type 4X
- Housing Material ABS,Polycarbonate,Aluminum
- Materials 316 Stainless Steel
- Storage Temperature, Max 95 °C
- Storage Temperature, Min -40 °C
- Temperature Measurement Range -50 to 200 °C
- Temperature Resolution 0.1 °C
- Temperature Sensor Type Pt100 Ω RTD
- Weight 1 lb
The PRTXB and PRTXAL Digital Temperature Gages include a precision RTD Sensor in a rugged 316 SS sheath. The front keypad is used for power on/off, min/max functions, selection of deg F, C or K, auto shutoff times (for battery models), calibration and configuration options. User-defined pass codes for configuration and calibration to prevent unauthorized changes.
PDFs & Manuals
Show Ratings & Reviews
What is the pressure rating of this temperature gauge?
Omega does not put a pressure rating on these probes and if that is a concern a Thermowell should be used for safety.
Date published: 2022-05-05
Is the temperature being sensed at the tip of the probe or throughout the entire length of the probe?
Thank you for your inquiry. The temperature is only being sensed at the tip of the probe.
Date published: 2024-08-01
