Series-TSX3

Digital Temp Switch for Compressor Control & HACCP Logging, Energy-Efficient

(0)

Models In Stock

Field selectable °F or °C
Real time clock
HACCP alarm logging
Configuration key
2 or 3 output models for complete refrigerator control
2 temperature sensor and 1 digital contact inputs

See Product Overview

Series-TSX3

From ^$ 104.35

Models In Stock

Shop Models

16 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy ± 1 %
Applications Building and Maintenance, HVAC
Compliance CE, cUR, UR
Control Type On/Off
Display Note 3 digits Blue plus sign
Display Type 3 Digit LED
Enclosure Ratings IP65, NEMA Type 4X
Horsepower Rating 1 hp @ 240 Vac
Input Type Thermistor, Digital
Memory Backup Non-Volatile
Operating Temperature, Max 131 °F
Operating Temperature, Min 32 °F
Output Detail Relay
Scale N/A
Sensor Type Thermistor
Switch Note All models SPST NO relay resistive load 16A, inductive load 5A, 10 FLA, 60 LRA @ 240 VAC; dual output models also include 8A resistive, 3A inductive SPDT @ 240 VAC; three output models also include 8A resistive SPST NO @ 240 VAC, 5A resistive SPST NO @ 240 VAC
Temperature Measurement Range PTC: -50 to 150 °C, NTC: -50 to 110 °C
Temperature Probe Style N/A
Temperature Resolution 0.1 °F
Weight 2.3 oz

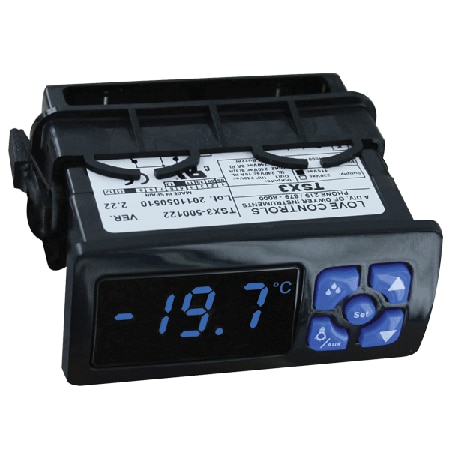

The Series TSX3 Digital Refrigeration Temperature Switch was designed to control the compressor, fan, and defrost in refrigeration applications. This generation of controls has field selectable engineering units and temperature probe types in order to reduce the combination of parts that need to be stocked. A built-in real time clock is used for HACCP logging of temperature alarms caused by temperatures out of their set limits or loss of power. The Intelligent Defrost parameters manage the defrost cycle in order to save energy cost. The digital input can be used to remotely trigger a defrost cycle, monitor cooler door status, or act as an external alarm. For programming multiple units, the model TS2-K configuration key can be used to quickly download parameter settings.
