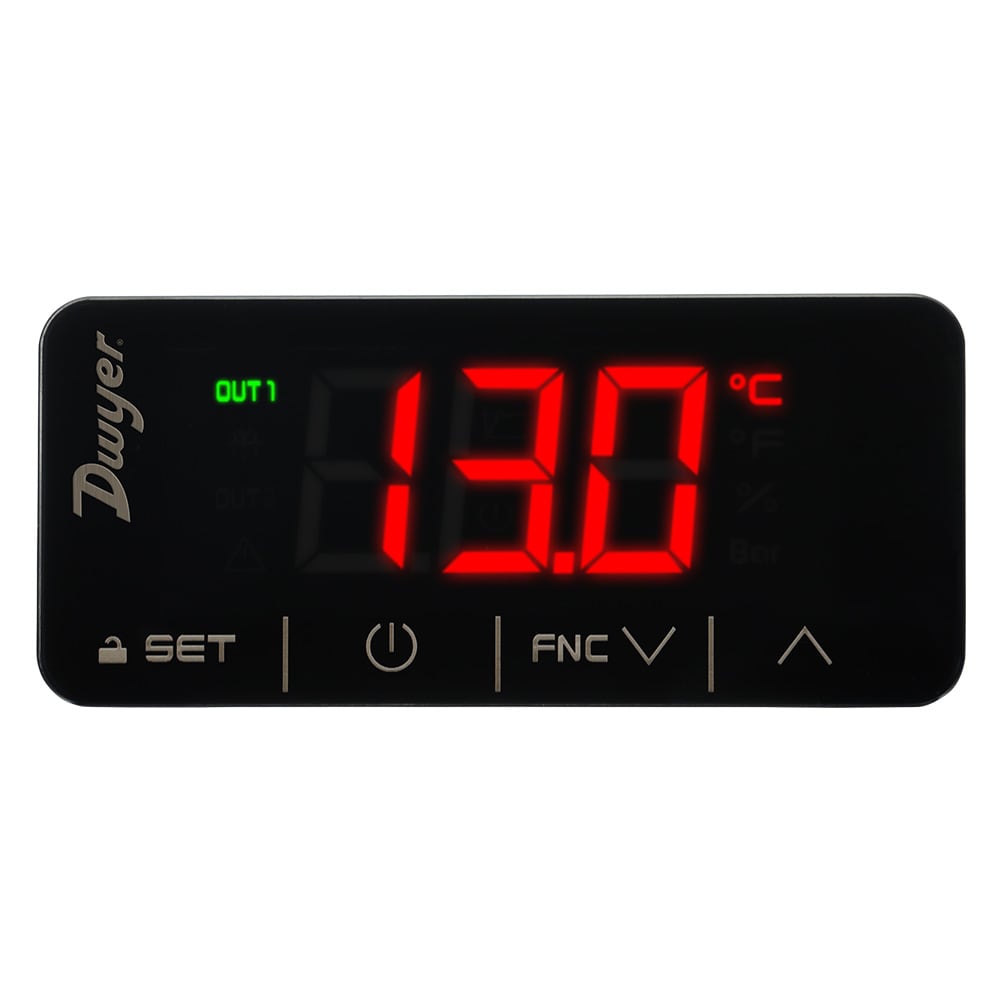

Series-40T2

Digital Temp Controller 999°F/537°C, 3-Digit LED, Modbus, Alarm, Food/Industrial

(0)

Field selectable °F or °C
Universal temperature sensor or transmitter input
Configuration key to quickly load parameters from one unit to another
Heating and cooling operation modes
TTL/RS-485 communication

See Product Overview

Series-40T2

From ^$ 89.95

Shop Models

2 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy ± 2 °F
Applications Food and Beverage, Process Automation and Control
Control Type On/Off
Display Type 3 Digit LED
Enclosure Ratings IP65
Operating Temperature, Max 55 °C
Operating Temperature, Min -5 °C
Output Detail K1 16 A in-rush res. @ 250 VAC, SPDT, type 1.
Series ID Series-40T2
Storage Temperature, Max 70 °C
Storage Temperature, Min -25 °C

The Series 40T2 Digital Temperature Controller accepts a variety of inputs for temperature measurements and set points up to 999°F/537°C. Observing the current status of the controller is made easier with the 3-digit, multi-color LED display that has alarm and output symbols. For added versatility, the temperature units can be field selected for °F or °C. A flashing alarm informs users when the current temperature exceeds preset limits. The Modbus® protocol TTL slave port can be used to communicate over a TTL/RS-485 interface. When programming multiple units, the 40X2-K programming key is available to reduce setup time.
