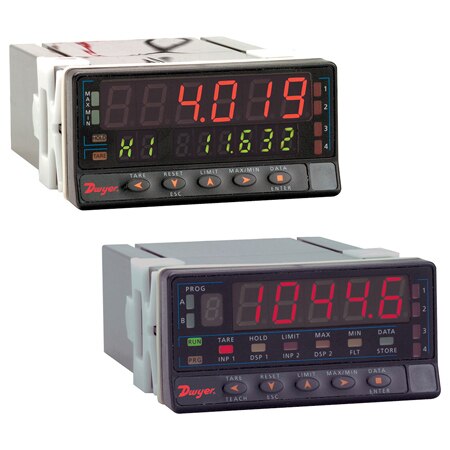

Series-LCI508-LCI608
Digital Panel Meters for Analog Inputs, 555 readings/s, Data Hold & Tare
Series-LCI508-LCI608
From
$
1,469.55
Product Overview
- Accuracy ± 0.1 % + 2 digits
- Current Input Range ± 20 mA dc
- Cutout Dimensions 3.6 x 1.8 in
- Decimal Selection User Selectable
- Display Note Main display: -9999/9999, 5 red digits, 7 segments
- Display Range -9999 to 9999
- Display Segment Color Red
- Enclosure Ratings IP66, NEMA Type 4X
- Excitation Voltage 2.2 Vdc
- Excitation Voltage Note 2.2 V @ 30 mA not adjustable. 24 V @ 30 mA not regulated. 5 V ± 100 mV @ 120 mA with fine adjust (50ppm/ºC). 10 V ± 10 mV @ 120 mA with fine adjust (50ppm/°C)
- Impedance Voltage: 1MΩ, 100MΩ; Current: 11.8Ω; Load Cell: 100MΩ; Potentiometer: >10 MΩ
- Load Cell Input Range ± 30 mVdc, ± 60 mVdc, ± 120 mVdc, ± 300 mVdc, ± 500 mVdc
- Materials Polycarbonate
- Number of Digits 5
- Number of Display Segments 7
- Operating Temperature, Max 140 °F
- Operating Temperature, Min 14 °F
- Potentiometer Input Range 120 Ω
- Power Consumption 5 W
- Sampling Rate 555 Hz (555 updates/second)
- Storage Temperature, Max 185 °F
- Storage Temperature, Min -13 °F
- Supply Power Note 115/230VAC 50/60Hz
- Supply Power Type AC
- Supply Voltage 115 / 230 Vac
- Temperature Coefficient 50 ppm/°C
- Voltage Input Range ± 5 V, ± 10 V, 0 to 1 V
- Warm Up Time 10 min
- Weight 21 oz
The Series LCI508 & 608 Digital Panel Meters offer high performance and a multitude of features for displaying and manipulating input variables. The unit accepts analog process input, load cell and potentiometer inputs. Standard features include data hold, peak and valley display, store function, tare function and reset. Both models offer a built-in excitation power supply. The Series LCI508/608 can be fitted with optional output modules for control capabilities.
The Model LCI508 is designed with 31 programmable functions and a high conversion rate of 555 reads per second. Up to 30 points can be set using the multipoint scaling function for non linear applications.
The Model LCI608 is designed for measuring and integrating analog signals containing two sets of information simultaneously (for example, Flow and Totalization). The units can be configured to accept and display two analog input signals and allowing interaction between them. The model LCI608 offers 26 logical programmable functions.
