Series-DM-1200

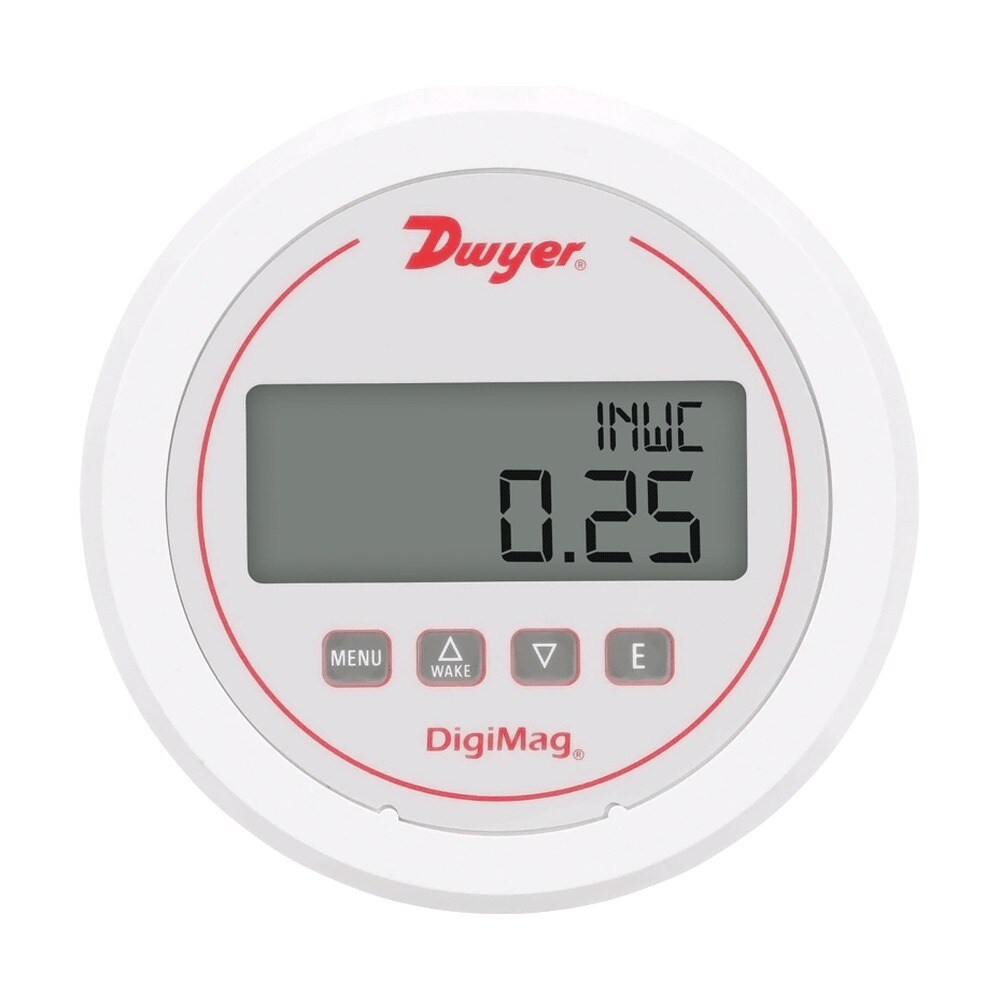

Digital Differential Flow Gage, Battery or 24V, Pre-calibrated
- Digital replacement for analog pressure gauge
- Field-programmable for pressure, air velocity, or air flow
- Built-in filter monitoring with visual maintenance alert
- High accuracy with flexible line or battery power options
Series-DM-1200
From
$
343.10
Product Overview
- Accuracy Detail ± 1% FS including linearity, hysteresis and repeatability; ± 2% FS for ranges 1 in w.c. and below
- Battery life 9 mo, typical with display update of 10 min
- Battery Size and Type Alkaline 9V
- Compensated Temperature, Max 122 °F
- Compensated Temperature, Min 32 °F
- Dial Dia 5 in
- Display Note Display: 4-digit LCD (digits: 0.60H x 0.33W), Display Update: Selectable for 1 s to 10 minutes or update only from button push.
- Display Type LCD
- Dual false
- Electrical Connection Screw Terminal
- Electrical Entry Cable Gland
- Enclosure Ratings IP66, NEMA Type 4X
- Fits Cable Diameter 0.114 to 0.25 in
- Long Term Stability ± 1% FS/year
- Materials Glass Filled Plastic
- Materials, Wetted Consult Factory
- Media Compatibility Clean dry air / inert gas, HVAC / room air, Inert / non-reactive gases, Helium, Nitrogen, Non-Corrosive Dry Gases
- Number of Digits 4
- Operating Temperature, Max 140 °F
- Operating Temperature, Min 0 °F
- Power Consumption max 5 mA
- Measurement Pressure, Min 0 inH₂O
- Measurement Pressure Type Differential
- Process Connection Size 1/8 in
- Process Connection Type Barbed Fitting
- Series ID Series-DM-1200
- Supply Power Note 9 V alkaline battery, included, user replaceable or external power supply 9-24 VDC.
- Supply Power Type DC/Battery
- Supply Voltage 9 to 24 Vdc
- Velocity, Min 0 m/s
- Weight 535 g
- Wire Gauge 26 to 16 AWG
Also known as differential pressure controllers, these gauges measure differential pressure and static positive or negative pressure of air and gases. They are commonly used to measure static pressures in ducts and buildings, filter status, and fan control.
Accessories
Static Pressure Sensors – 4" Insertion Depth – For Manometers & Gages
From $2.55
0 In Stock
Show Ratings & Reviews
your gage says it is a flow gage, however in the picture is reading a pressure drop. Is your gage able to display FPM or CFM with a calc factor?
Yes, this model can be programmed to read velocity and even volumetric flow if they are used in conjunction with a flow sensing element, such as a pitot tube.
Date published: 2025-08-22
What is the maximum bidirectional range that can be achieved? (± kPa)
Hello,
The DM-1102 is not bi-directional. It is a uni-directional unit with a range of 0-.25" wc (0-.06 kPa).
Date published: 2026-01-21
