Series-HC2-LDP

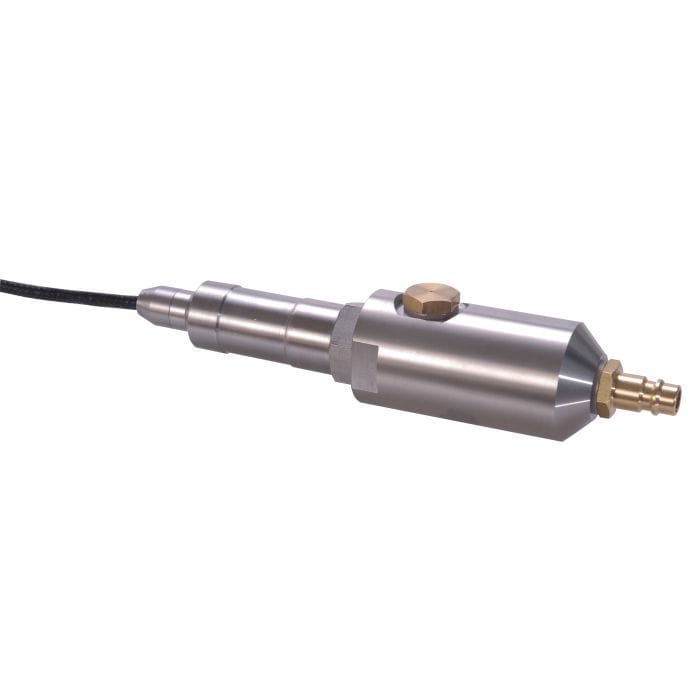

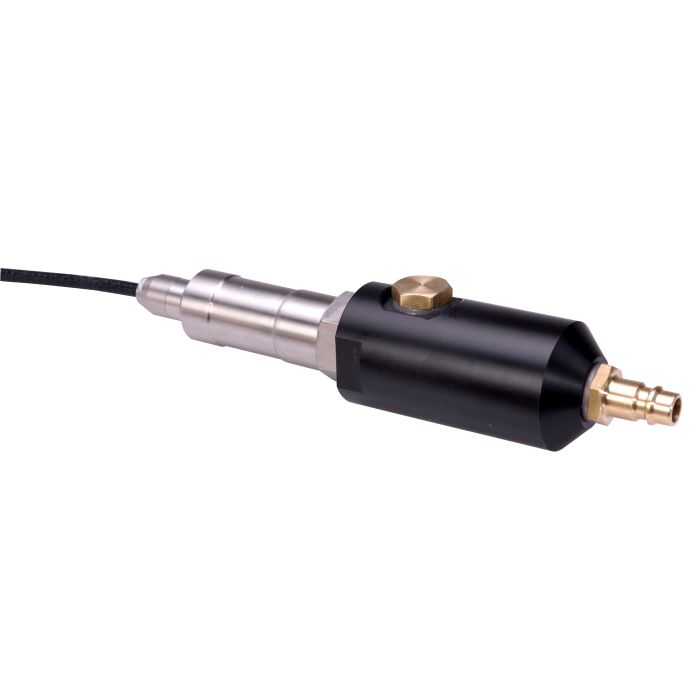

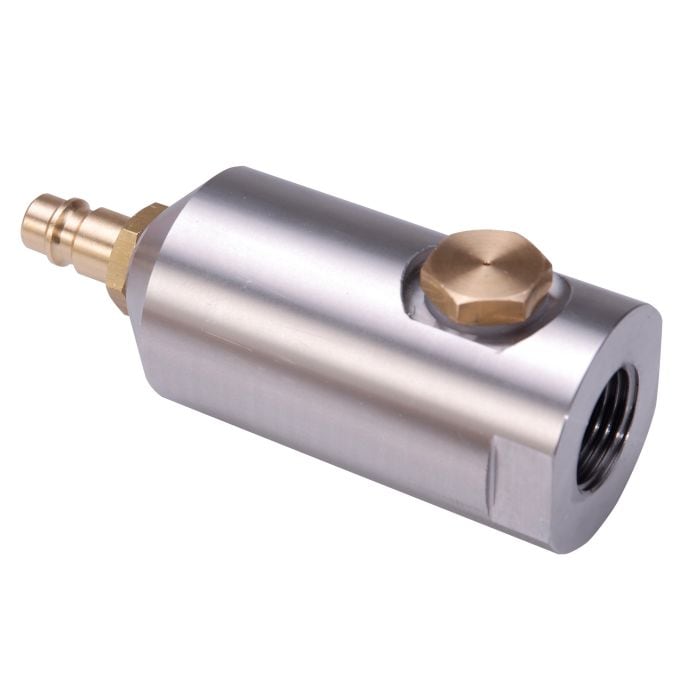

Digita Low Dew point and Temperature Probe
- -70 to 85° C Td
- Very high precision measurement of dewpoint, frostpoint and temperature
- 2m cable
Series-HC2-LDP
From
$
2,735.00
Product Overview
- Accuracy ±2 K
- Accuracy Detail ±2 K Td (-50 to 20 °C Td), ±3.5 K Td (-60 to -50 °C Td),±0.2 °C at 23 °C
- Applications Air and HVAC, Compressor Control, Control Panel, Electronic Equipment, Fluid Measurement and Control, Industrial and Manufacturing, Refrigeration Equipment, Rolling Element
- Cable Length 2 m
- Data Interface RO-ASCII
- Electrical Output 0 to 1 Vdc
- Enclosure Ratings IP65
- Housing Material Stainless Steel
- Length 145 mm
- Measurement Range Note -70 to 85 °C Td,-40 to 85 °C
- Measurement Type Dew Point, Temperature
- Operating Temperature, Max 85 °C
- Operating Temperature, Min -40 °C
- Sensor Type Rotronic HygroMer LDP-1, PT1000 1/3 Class B
- Series ID Series-HC2-LDP
- Software Version HygroSoft
- Supply Power Type DC
- Supply Voltage 3.3 to 5 V
- Weight 1.398 lb
Built for day-to-day use, the LOW DEW POINT PROBE (Series-HC2-LDP) helps you monitor dew point and moisture levels in industrial and commercial environments. It is built for dependable use in busy environments. Clear outputs make it easier to document results and communicate next steps. It is useful for tracking changes over time, not just single readings.
