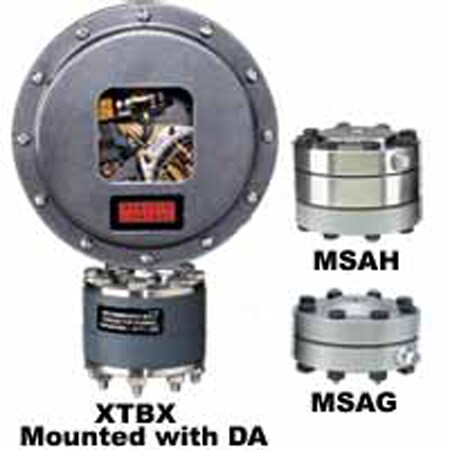

Diaphragm Seals for Pressure Controls - Protects Against Corrosive Media
Click and hold to zoom

Series-MSAG-MSAH-XTBX

Diaphragm Seals for Pressure Controls - Protects Against Corrosive Media

(0)
  • Maximum seal design pressure up to 2500 psig (MSAG/MSAH) and 100 psig (XTBX)
  • Thin, flexible diaphragm transmits system pressure accurately to the instrument
  • Fillable seal design via bleed screw after installation
  • Protects instruments from chemical corrosion through material selection options
Series-MSAG-MSAH-XTBX
From $ 0.00
Shop Models
0 Variations available
See all series options below
Series-MSAG-MSAH-XTBXData Sheet

Data Sheet
Diaphragm Seals for Pressure Controls - Protects Against Corrosive Media Series-MSAG-MSAH-XTBX Series-MSAG-MSAH-XTBX
Product Overview
  • Series ID Series-MSAG-MSAH-XTBX

These diaphragm seals are designed to protect pressure instruments from harsh or corrosive process media while maintaining accurate pressure transmission. System pressure acts on a thin, flexible diaphragm, which transmits the pressure via a liquid-filled chamber to operate the attached Bourdon tube without exposing the instrument to the process fluid.

The seals are rated for maximum design pressures of 2500 psig for MSAG and MSAH models and 100 psig for XTBX models. A bleed screw allows the seal to be filled after installation, simplifying setup and maintenance. Proper selection of diaphragm, bottom bowl, and wetted materials helps prevent chemical corrosion and extends service life in demanding applications.

(0)
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 8ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getContent, 99ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Series MSAH/MSAG

EXAMPLE SEALS MSAH 01 1 1 Z Series SEALS-MSAG0111Z Diaphragm Seal, clean out type, steel, 1/4" connection from seal to process and instrument to seal, stainless steel diaphragm.
SERIES SEALS           Diaphragm Seals
SEAL TYPE   MSAH
MSAG		         Clean Out Type
Non Clean Out Type
EXPOSED SURFACE
IN CONTACT WITH MEDIA
(Bottom Bowl) 		    01
06		       Steel
Stainless Steel
PROCESS CONNECTION SIZE
(From Seal to Process) 		      1
2
3
4
5		     1/4"
1/2"
3/4"
1"
1-1/4"
INSTRUMENT CONNECTION SIZE
(From Instrument to Diaphragm Seal)		         1
2		   1/4"
1/2"
DIAPHRAGM MATERIAL           Z
ZT		 Stainless Steel
PTFE/Stainless Steel


Series XTBX

EXAMPLE SEALS XTBX4 B NPQ3 Series SEALS-XTBX4BNPQ3 Diaphragm Seal, 1-1/2" process connection.
SERIES SEALS XTBX4 _ NPQ3 Diaphragm Seals
PROCESS CONNECTION SIZE     B
A
1
2
3
4		   1-1/2"
1-1/4"
1"
1/2"
3/4"
1/4"
