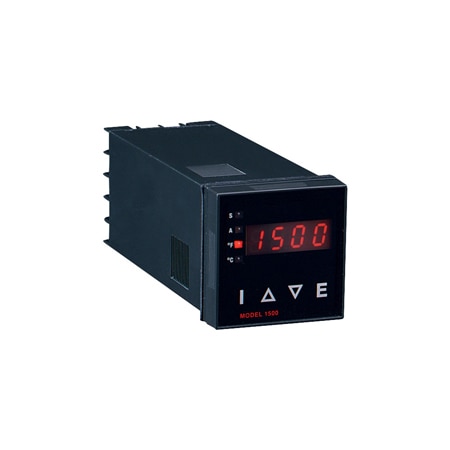

Series-1500
Custom 1/16 DIN Temp Controller, Waterproof, PID, J/K/T/E/N/RDT Support
Series-1500
From
$
850.70
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
- Accuracy ± 0.25% span ± 1 least significant digit
- Display Type LED
- Mounting Orientation 1/16 DIN
- Number of Digits 4
- Operating Temperature, Max 131 °F
- Operating Temperature, Min 14 °F
- Output Type (B) N/A
- Power Consumption max 5 VA
- Sensor Break Protection De-Energizes Control Output
- Storage Temperature, Max 176 °F
- Storage Temperature, Min -40 °F
- Supply Power Note 100 to 240 VAC, 50 – 400 Hz. single phase; 132 to 240 VDC (nom.) +10% – 20%. 5 VA maximum power consumption
- Supply Power Type AC/DC
- Supply Voltage 100 to 240 Vac/132 to 240 Vdc
- Weight 8 oz
The Series 1500 Temperature Controller is a reliable, accurate and fully programmable temperature control or alarm in an economical 1/16 DIN case. Microprocessor based, all control functions are easily programmed from the waterproof, corrosion resistant front panel. Models are available that accept field selectable J, K, T, E or N type thermocouples or RTD 100Ω DIN (.00385 ohms/ohm/°C) inputs and provide SSR, Relay or 5 VDC Logic outputs. All models are programmable for on-off, P, PI, manual PID or automatic Self-Tune PID control. Like the control output, optional alarm is field configurable direct acting (cooling) or reverse acting (heating) and is easily adjusted for either automatic or manual reset to provide independent high or low system protection. Four security levels are password protected.
