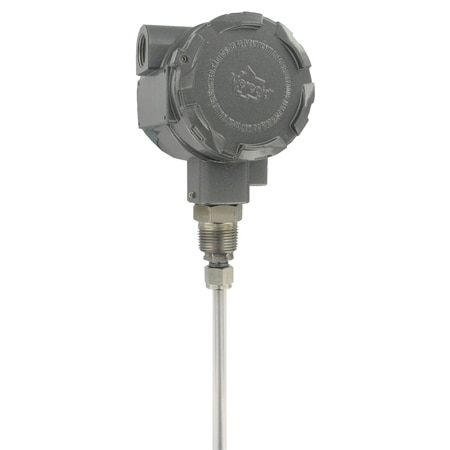

CRF2-WR01T-072

(0)

Click and hold to zoom

Choose a Variant

Probe Length

72 in 96 in

See all Models See all accessories

$1,248.75 / each

Item# CRF2-WR01T-072

Added to Your Shopping Cart

In Stock

Lead Time (If not in stock): 3 weeks

+ Add to Project List

See Specs

Product Specs

<< See all Product Models

Brand
Accuracy	± 0.025 %
Accuracy Detail	±0.5 pF or ±0.25% of span, whichever is greater
Capacitance	0 to 2000 pF
Current Output	4 to 20 mA
Electrical Connection	1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings	IP66, NEMA Type 4X
GrossWeightValue	0.1
Materials, Wetted	316 Stainless Steel, FEP, PVC
Media Compatibility	Dry bulk solids / powders, Clean process / cooling water, Conductive liquids, Corrosive chemicals / acids / bases, Oils / lubricants, Organic solvents, Refrigerants / coolants / glycol, Saltwater / brines, Slurries / sludge, Flour, Grain, Mud, Oil, Ore Suspensions, Powders, Saltwater, Sand, Slurries, Water-based fluids
Mounting Orientation	Vertical
Number of Wires	2
Operating Temperature, Max	185 °F
Operating Temperature, Min	-40 °F
Output Signal	Current
Probe Length	72 in
Probe Type	Rod
Process Connection Size	3/4 in
Process Connection Type	NPT Male
Process Temperature, Max	250 °F
Process Temperature, Min	-40 °F
Proof Pressure	Up to 100 psi
Protection	Spark/Static Protection: 106 Ω Dissipation Resistance with Spark Gap, Surge Current: 100 A max
Repeatability	±0.25 pF/ ±0.1% of span
Repeatability Note	±0.25 pF or ±0.1% of span, whichever is greater
Response Time	0.5 s
Sensitivity	0.15 pF
Series ID	Series-CRF2
Span, Min	8 pF
Spec Sheet QR URL	https://www.dwyeromega.com/en-us/crf2-level-transmitter-4-20-ma-output-rf-admittance-easy-calibration/Series-CRF2/p/CRF2-WR01T-072?guid=701a700000ulrduaaq&utm_source=spec-sheet&utm_medium=qr-code&utm_campaign=prd-sku-spec-sheet&utm_content=auto-generated-sku-level-spec-sheet
Supply Power Type	DC
Supply Voltage	12 to 35 Vdc
Weight	3.6 lb
Weight Note	6' rod type: 3.6 lb
Country of Origin	United States
See All Specs Show Less
