OXY-FLEX-Oxygen-Analyzer

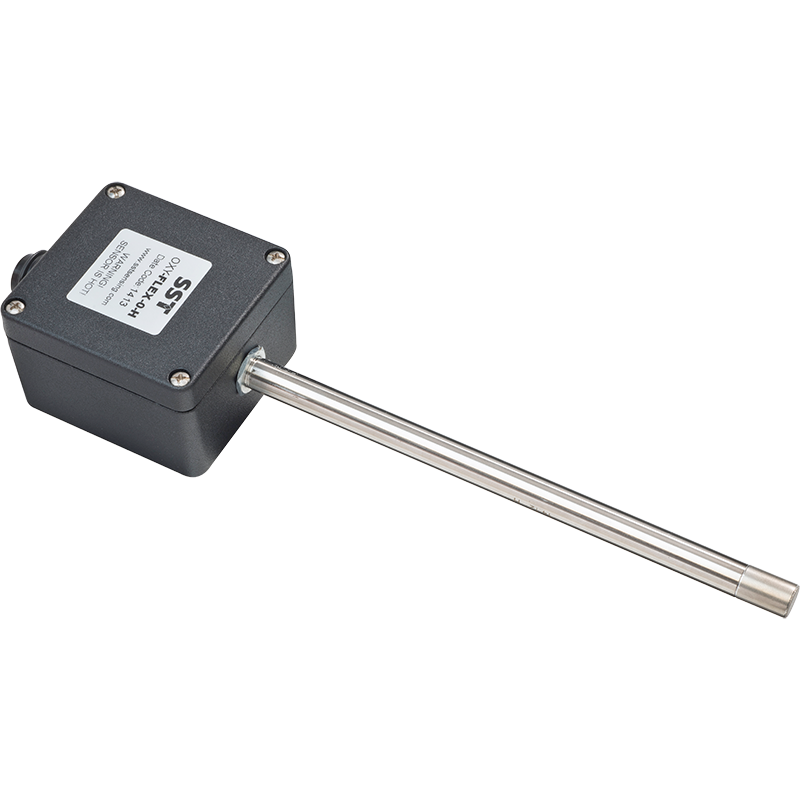

Cost-Effective Oxygen Analyzer - OXY-FLEX Series
- Wide temperature operating range from -100°C to +400°C
- Robust zirconium dioxide sensor element for long-term reliability
- No reference gas required thanks to advanced sensor design
- Configurable measurement ranges: 0.1-25% or 0.1-100%
- Linear output across the full measurement range
OXY-FLEX-Oxygen-Analyzer
From
$
1,100.00
Product Overview
- Data Interface RS232
- Electrical Output 4 to 20 mA, 0 to 10 Vdc
- Form factor Probe
- Gas Measurement Range 0.1 to 25 % / 0.1 to 100%
- Housing Material Steel
- Operating Temperature, Min -100 °C
- Output Signal Current, Voltage
- Measurement Pressure, Max 3 bar
- Measurement Pressure Type Absolute
- Response Time <15s
- Sensor Type Zirconia
- Series ID OXY-FLEX-Oxygen-Analyzer
- Supply Voltage 24 Vdc
- Target Gas Oxygen
SST OXY-Flex Oxygen Analyser delivers high-accuracy linear oxygen measurement with automatic or manual calibration. Calibrate in fresh air or known O₂ levels, with selectable output filtering for fast response or stable monitoring.
