Series-LLC

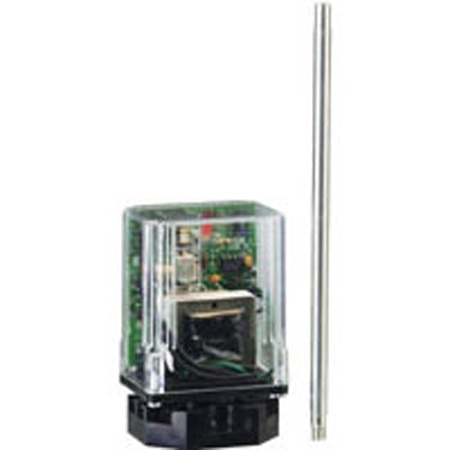

Conductivity Level Controller for Valves & Pumps, LED, 120/240 VAC
Product Overview
- Materials, Wetted 316 Stainless Steel, PTFE
- Media Compatibility Acid Solutions, Conductive Liquids, Saltwater
- Process Connection Size 3/8 in
- Process Connection Type NPT Male
- Switch Note 10A resistive, 1/3 HP @ 120/240 Vac
- Switch Rating 10A, 1/3 hp @ 120/240 Vac
- Switch Type SPDT NO/NC
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller. Select the required number of probes for single or dual point level detection. Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements. The LLC features rugged 1/4-inch (6.3 mm) diameter, stainless steel probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
TO BUILD YOUR LEVEL SWITCH:
Controller:
1. Determine your supply voltage. Select between 120 and 240 VAC.
2. Determine the required sensitivity. Select between 10K Ω and 26K Ω.
3. Determine the socket style. Select between 8-pin octal and DIN mount.
Probes:
4. Determine the required number of probes. Specify quantity of Threaded Mounting Couplings, model LLC-82. (A coupling is required for each probe.)
5. Select probe lengths. Specify model numbers for probes.
