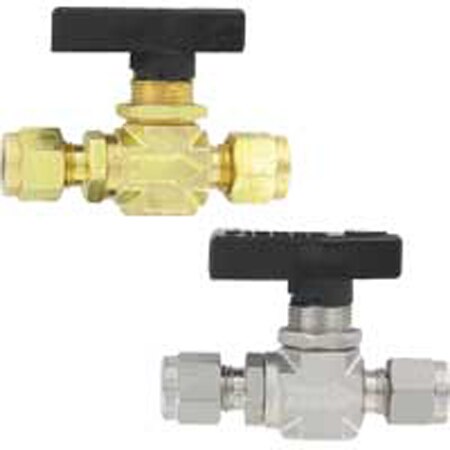

Compact Two-Way Ball Valves - Brass/316 SS Body, PTFE Seats, Blow Out Proof
Click and hold to zoom

Series-MSV

Compact Two-Way Ball Valves - Brass/316 SS Body, PTFE Seats, Blow Out Proof

(0)
Series-MSV
From $ 273.05
Shop Models
3 Variations available
See all series options below
Series-MSVData Sheet

Data Sheet
Compact Two-Way Ball Valves - Brass/316 SS Body, PTFE Seats, Blow Out Proof Series-MSV Series-MSV
Product Overview
  • Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
  • Operating Temperature, Max 350 °F
  • Operating Temperature, Min -40 °F
  • Pressure Limits Up to 1500 psi

The Series MSV Compact Two Way Ball Valves are the perfect choice for directional control of fluid in instrumentation and process systems. The micro finished ball and PTFE seats ensure quality seal and easy operation. The straight through flow path design allows for minimal pressure drop. The valve body comes in either brass or 316 stainless steel, offering a variety of options. Blow out proof ball and stem provides extra durability and safety in the event of over pressure.
