Compact Plug Valves, 3000 psig, 1/4 Turn, 316 SS/Brass, Tube/NPT Fitting
Click and hold to zoom

Series-PGV

Compact Plug Valves, 3000 psig, 1/4 Turn, 316 SS/Brass, Tube/NPT Fitting

(0)
Series-PGV
From $ 189.65
Shop Models
2 Variations available
See all series options below
Series-PGVData Sheet

Data Sheet
Compact Plug Valves, 3000 psig, 1/4 Turn, 316 SS/Brass, Tube/NPT Fitting Series-PGV Series-PGV
Product Overview
  • Form factor 1-Piece
  • Materials, Wetted PTFE, Stainless Steel
  • Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
  • Orifice Size 0.172 in
  • Pressure Limits Up to 3000 psi
  • Process Temperature, Max 400 °F
  • Process Temperature, Min -10 °F

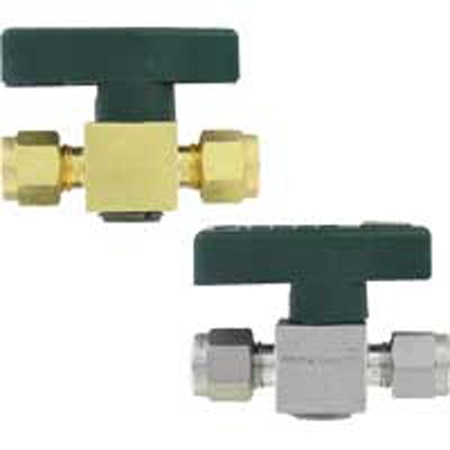

The Series PGV Compact Plug Valves are designed to stop forward flow of up to 3000 psig with ease. The combination of 1/4 turn operation and low operating torque allows for quick opening and closing providing positive shut off to instrumentation and process systems. The PGV series comes in either fractional tube fitting or female NPT connections. Available in either 316 stainless steel or brass, the one-piece body makes this valve an economical choice for your application.
