Series-L6

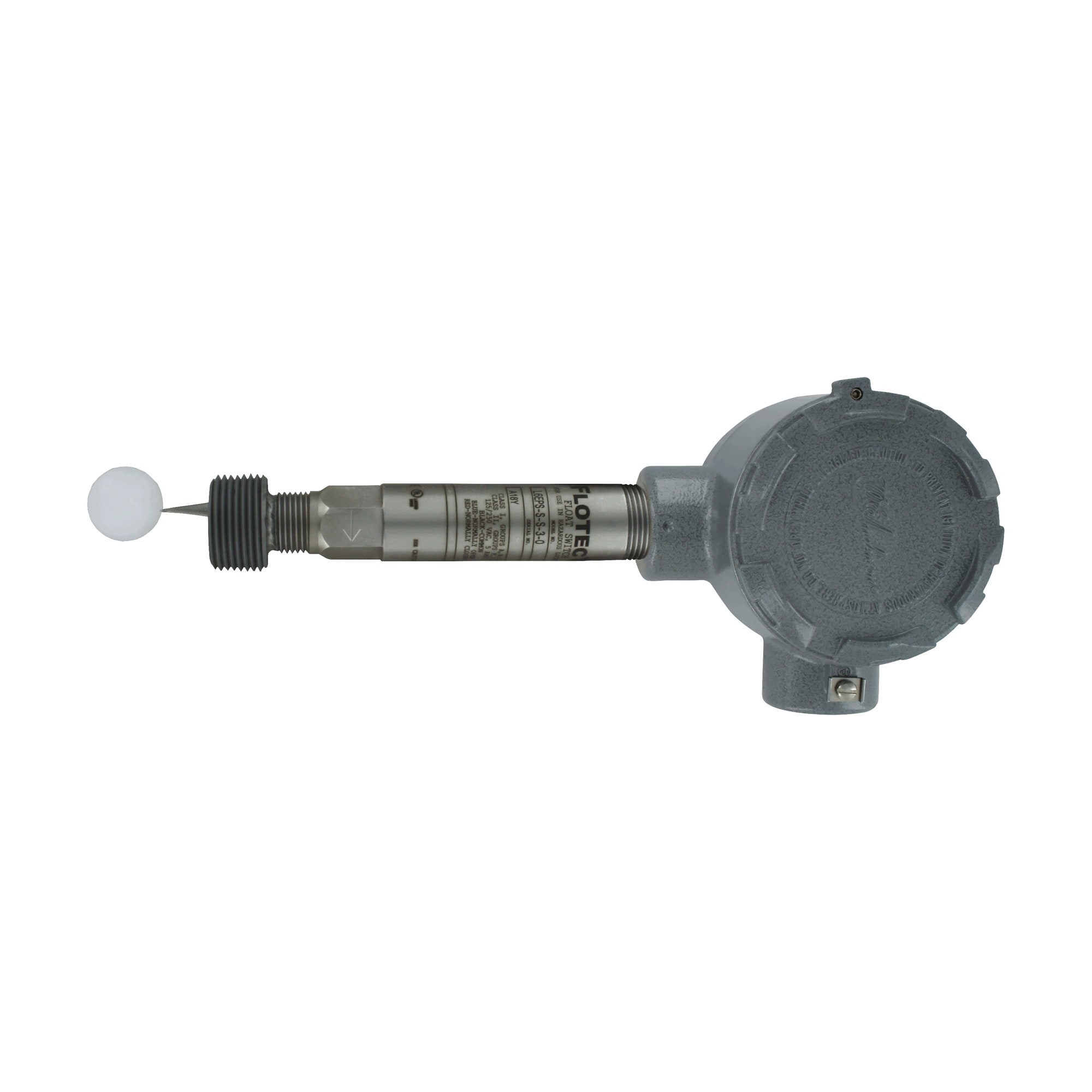

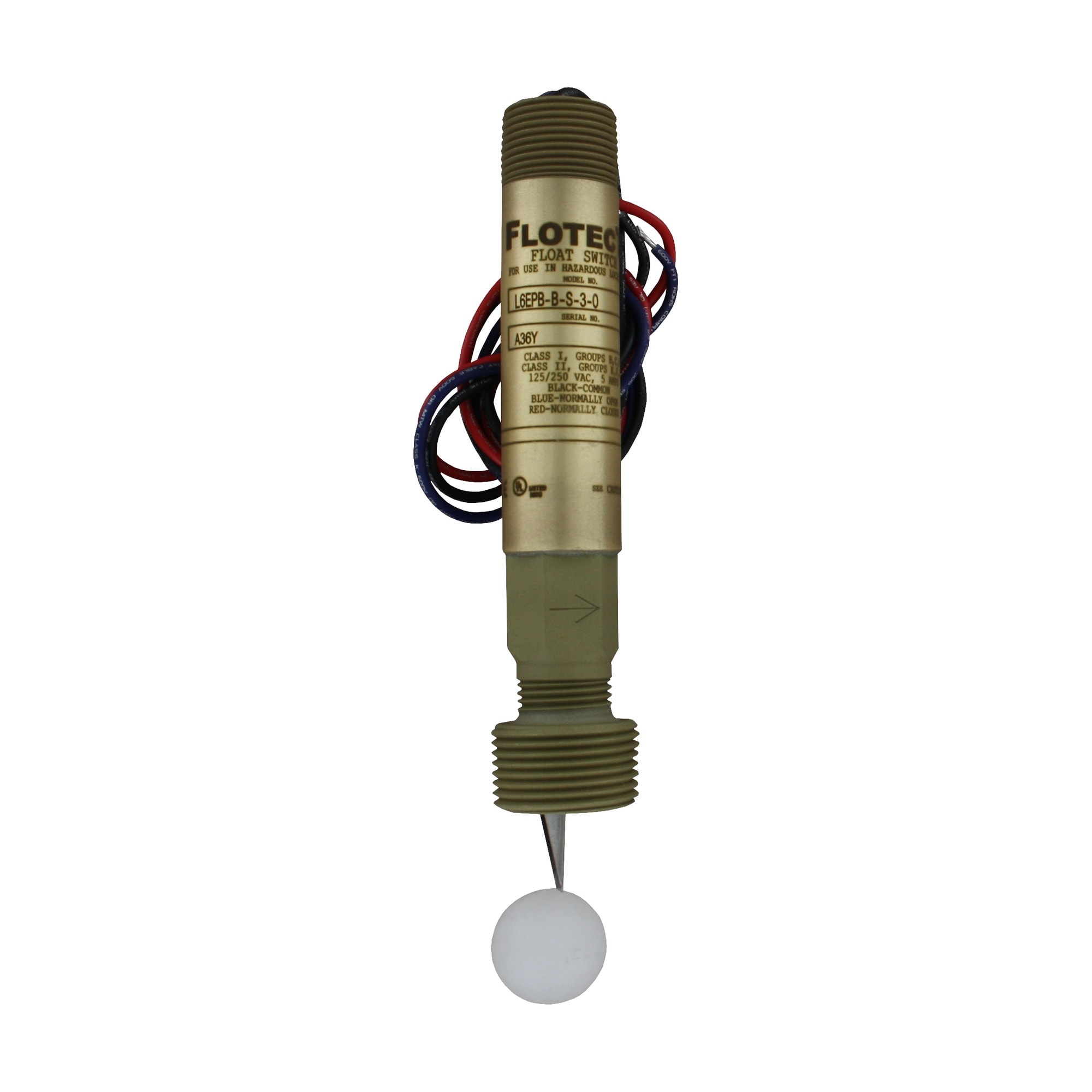

Compact Flotect® Level Switch – Magnetic Actuation for Liquid Control
Models In Stock
- Provides high/low level alarms, pump dry-run protection, and tank switching in HVAC and industrial systems.
- Magnetically actuated with no mechanical linkage; leak-proof body machined from bar stock, side or tee mount.
- Compact magnetic level switch for tank, sump, and reservoir level alarm.
- No linkage to bind, corrode, or drift, in a footprint small enough for tight vessel penetrations.
Series-L6
From
$
394.65
Models In Stock
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
- Applications Boilers, Oil, Pump Control
- Cable Material N/A
- Compliance Note Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on SS body models only). ATEX 2813 II 2 G Ex db IIC T6 Gb Process Temp≤75°C. EU-Type Certificate No.: KEMA 04ATEX2128. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex d IIC T6 Gb Process Temp≤ 75°C. IECEx Certificate of Conformity: IECEx DEK II.0039. IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014. Korean Certified (KC) for Ex db IIC T6 Gb Process Temp≤75°C. KTL Certificate Number: 12-KB4BO-0091
- Electrical Connection Screw Terminal
- Enclosure Ratings Hazardous Location Rated, Weatherproof
- Media Compatibility Clean process / cooling water, Compatible Liquids, Oils / lubricants, Organic solvents
- Mounting Orientation Horizontal with downward pointing index
- Operating Temperature, Max 167 °F
- Operating Temperature, Min -4 °F
- Measurement Pressure Type Gauge
- Process Connection Size 1 in
- Process Temperature, Max 220 °F
- Process Temperature, Min -4 °F
- Series ID Series-L6
- Switch Note UL models: 5 A @ 125/250 VAC (V~). CSA, ATEX and IECEx models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V ). MV option: .1 A @ 125 VAC (V~). MT option: 5 A @125/250 VAC (V~). [MT option not UL, CSA, ATEX or IECEx]
- Switch Rating 5 A @ 125/250 Vac
- Switch Type SPDT Snap
- Temperature Note -4 to 220°F (-20 to 105°C) Standard, MT high temperature option 400°F (205°C)(MT not UL, CSA, ATEX, IECEx and KC). ATEX compliant AT, IECEx IEC and KC option ambient temperature -4 to 167°F (-20 to 75°C) process temperature: -4 to 220°F (-20 to 105°C).
- Wire Gauge 18 AWG
Supported Applications
The Dwyer Series L6 Flotect® is an explosion-proof liquid level switch designed for hazardous environments. The series operates automatically to indicate tank levels and supports direct pump control, automatic tank dump operations, valve control, and level alarms. Documented applications include sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/wastewater treatment processes.
Operating Conditions & Performance
The Series L6 is sensitive to liquid level changes of less than 1/2" (12 mm). Standard process temperature ranges from -4 to 220°F (-20 to 105°C), with an MT high-temperature option available up to 400°F (205°C); the MT option is not UL, CSA, ATEX, IECEx, or KC listed. For units configured for hazardous locations under ATEX compliant AT, IECEx IEC, and KC options, the ambient temperature range is -4 to 167°F (-20 to 75°C) with a process temperature of -4 to 220°F (-20 to 105°C).
Pressure ratings vary by model configuration as defined in the maximum pressure chart:
- Cylindrical SS float: 200 psig (13.8 kg/cm²)
- Polypropylene float: 250 to 2000 psig (17.2 to 138 kg/cm²) depending on model
- Round SS float: 250 to 350 psig (17.2 to 24.1 kg/cm²)
The enclosure is weatherproof and explosion-proof, listed with UL and CSA for Class I, Groups A, B, C, and D; Class II, Groups E, F, and G (Group A on stainless steel body models only). Approvals include Directive 2014/34/EU (ATEX) Compliant CE 2813 II 2 G Ex db IIC T6 Gb Process Temps ≤75°C; EU-Type Certificate No.: KEMA 04ATEX2128; ATEX Standards EN 60079-0: 2012 + A11: 2013 and EN60079-1: 2014. IECEx Certified for Ex db IIC T6 Gb Process Temps 75°C with Certificate of Conformity IECEx DEK II.0039; Standards IEC 60079-00: 2011 and IEC 60079-1: 2014. Korean Certified (KC) for Ex d IIC T6 Gb Process Temps ≤75°C with KTL Certificate Number 12-KB4BO-0091.
Configuration Options
The series offers configurable construction, body materials, switch types, process connections, float configurations, and options to meet specific installation requirements. The model number guide follows the format: L6 - <CONSTRUCTION> - <BODY> - <SWITCH TYPE> - <PROCESS CONNECTION> - <FLOAT TYPE AND INSTALLATION> - <OPTIONS>.
- Construction: EP (Explosion-proof)
- Body Material: Brass or 303 SS
- Switch Type: SPDT snap switch standard, DPDT snap switch optional. Electrical ratings include UL models at 5 A @ 125/250 VAC (V~); CSA, ATEX and IECEx models at 5 A @ 125/250 VAC (V~) or 5 A res., 3 A ind. @ 30 VDC (V =). The MV option supports .1 A @ 125 VAC (V~).
- Process Connection: 1" male NPT or 1" male BSPT on models without external float chamber; 1" female NPT or 1" female BSPT on models with external float chamber.
- Float Type and Installation Options:
- O: Polypropylene, spherical, side wall mount
- A: 304 SS, cylindrical, side wall mount
- B: Polypropylene, spherical, brass external float chamber
- C: 304 SS, spherical, side wall mount
- H: 304 SS, spherical, brass external float chamber
- L: 304 SS, spherical, 304 SS external float chamber
- S: Polypropylene, spherical, 304 SS external float chamber
- Options: MV (Gold plated contacts for dry circuits), MT (High temperature rated 400°F/205°C; no listings or approvals, only available on models with SS floats), CSA and UL approved construction including weatherproof/explosion-proof junction box, AT (ATEX compliant construction includes weatherproof/explosion-proof junction box), IEC (IECEx certified construction).
- Wetted Materials: Float: Solid polypropylene or 304 SS; Lower body: Brass or 303 SS; Magnet: Ceramic; External float chamber (Tee): Matches lower body choice of brass or 303 SS; Lever arm, spring, pin, etc.: 301 SS.
- Electrical Connections: UL models feature 18 AWG, 18" (460 mm) long leads. ATEX/CSA/IECEx models utilize a terminal block.
Key Product Differences
Variants within the Series L6 differ primarily by body material and float configuration, which dictate pressure ratings and specific hazardous location approvals. Brass bodies are available with polypropylene or stainless steel floats; 303 SS bodies support various stainless steel float options including cylindrical and spherical configurations.
- Float Geometry: Models offer either a spherical float (polypropylene or 304 SS) or a cylindrical 304 SS float. Spherical polypropylene floats are available with side wall mounting or external chambers in brass or stainless steel.
- Housing and Mounting: The series supports horizontal mounting with the index arrow pointing down. Models may include an external float chamber (tee) matching the lower body material, increasing overall dimensions to 8-9/16" [217.49] x 3-5/64" [78.18].
- Approvals and Options: Units without the 'AT' suffix are not Directive 2014/34/EU (ATEX) compliant. BSP options are not compatible with the KC option. The MT high-temperature option is available only on models with SS floats and does not carry UL, CSA, ATEX, IECEx, or KC listings.
