V6EPB-B-D-1-B

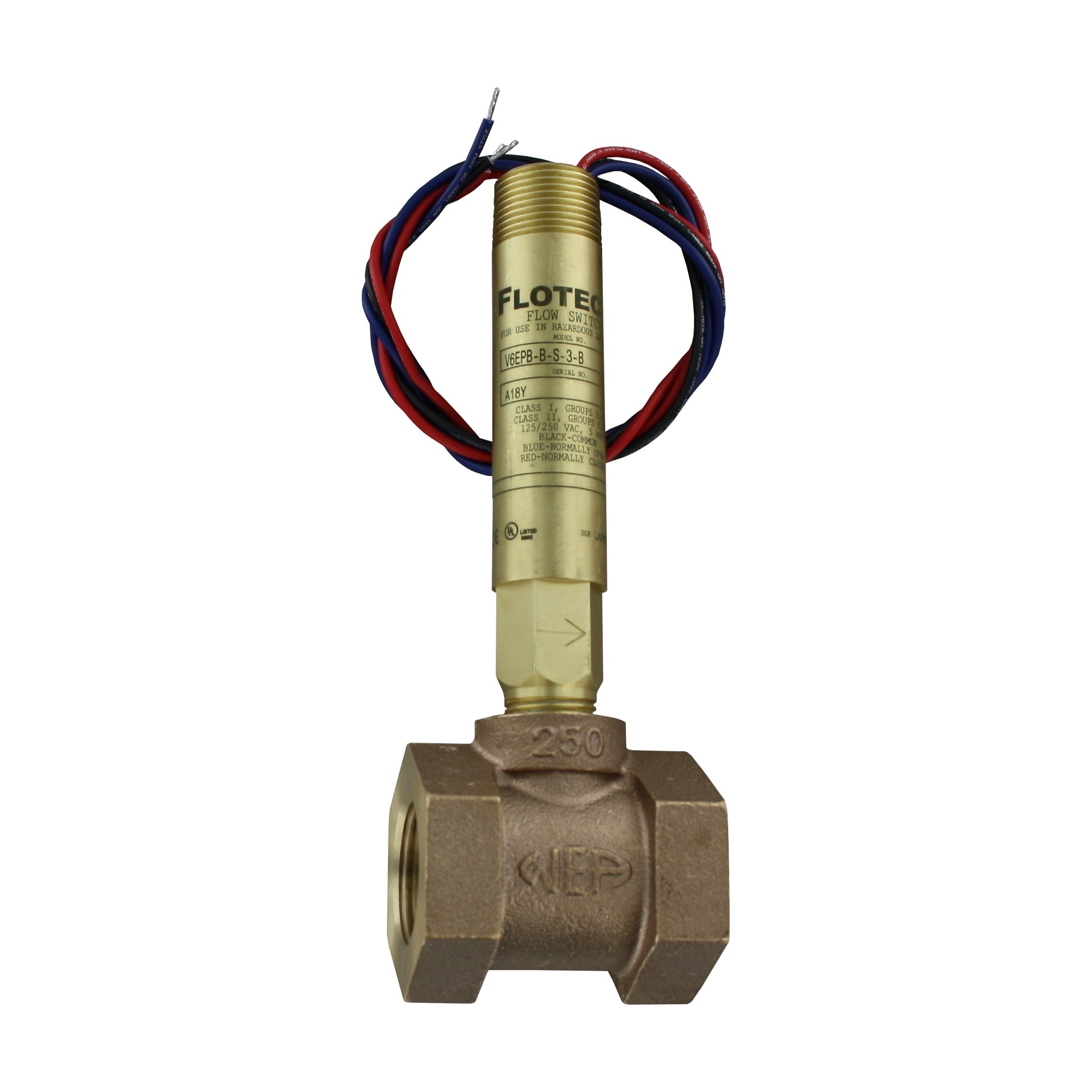

V6EPB-BD1B FLOTECT FLOW SWITCH, BRASS BODY, BRASS TEE, DPDT, 1/2" NPT

4.5
(11)
V6EPB-BD1B FLOTECT FLOW SWITCH, BRASS BODY, BRASS TEE, DPDT, 1/2" NPT
Click and hold to zoom
See all Models See all accessories

$420.75 / each

Item# V6EPB-B-D-1-B

In Stock

Lead Time (If not in stock): 3 weeks
+ Add to Project List
See Specs

Product Specs

<< See all Product Models
Brand
Applications Fluid Measurement and Control, HVAC, Oil, Pump Control, Fluid Measurement and Control, HVAC, Oil, Pump Control
Commodity Code 8536.50.9065
ECCN EAR99
Electrical Connection 3/4 in NPT female Conduit with Screw Terminal block, 3/4 in NPT female Conduit with Screw Terminal block
Enclosure Ratings Hazardous Location Rated, NEMA Type 4, Weatherproof, Hazardous Location Rated, NEMA Type 4, Weatherproof
Enclosure Ratings Note Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on SS body models only) ATEX 2813 II 2 G Ex db IIC T6 Gb Process Temp ≤75°C Alternate Temperature Class T5 Process Temp ≤90°C, 115°C (T4) Process Temp ≤105°C consult factory. EU-Type Certificate No.: KEMA 04ATEX2128. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIC T6 Gb Process Temp≤75°C Alternate Temperature Class T5 Process Temp ≤90°C, 115°C (T4) Process Temp≤105°C consult factory. IECEx Certificate of Conformity: IECEx DEK 11.0039; IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014; Korean Certified (KC) for: Ex d IIC T6 Gb Process Temp ≤75°C; KTL Certificate Number: 12-KB4BO-0091., Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on SS body models only) ATEX 2813 II 2 G Ex db IIC T6 Gb Process Temp ≤75°C Alternate Temperature Class T5 Process Temp ≤90°C, 115°C (T4) Process Temp ≤105°C consult factory. EU-Type Certificate No.: KEMA 04ATEX2128. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIC T6 Gb Process Temp≤75°C Alternate Temperature Class T5 Process Temp ≤90°C, 115°C (T4) Process Temp≤105°C consult factory. IECEx Certificate of Conformity: IECEx DEK 11.0039; IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014; Korean Certified (KC) for: Ex d IIC T6 Gb Process Temp ≤75°C; KTL Certificate Number: 12-KB4BO-0091.
Measurement Pressure Type Gauge, Gauge
Media Compatibility Clean dry air / inert gas, Clean process / cooling water, Compatible Liquids, Inert / non-reactive gases, Oils / lubricants, Organic solvents, Water, Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Mounting Orientation None, None
OkForExport true
Operating Temperature, Max 220 °F, 220 °F
Operating Temperature, Min -4 °F, -4 °F
Pipe Size, Max 0.5 in
Process Connection Size 1/2 in, 1/2 in
Process Connection Type NPT Male, NPT Male
Process Temperature, Max 220 °F, 220 °F
Process Temperature, Min -4 °F, -4 °F
Proof Pressure Up to 250 psi
Sensor Material Stainless Steel, Brass, Ceramic
Switch Rating 5 A @125/250 Vac, 5 A @125/250 Vac
Switch Rating Note UL models: 5 A @125/250 VAC. CSA, ATEX and IECEx models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V ). MV option: .1 A @ 125 VAC (V~). MT option: 5 A @125/250 VAC (V~). [MT option not UL, CSA, ATEX or IECEx], UL models: 5 A @125/250 VAC. CSA, ATEX and IECEx models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V ). MV option: .1 A @ 125 VAC (V~). MT option: 5 A @125/250 VAC (V~). [MT option not UL, CSA, ATEX or IECEx]
Switch Type DPDT Snap
Tee Material Brass
Weight 2.7 kg, 2.7 kg
tee-material Brass
Country of Origin United States
See All Specs Show Less
