Yellow-Box-Oxygen-Analyzer

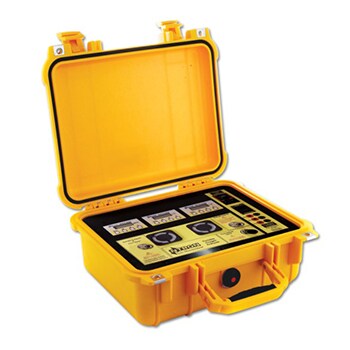

Compact and Transportable Oxygen Analyser for High Purity Oxygen Measurement Applications
- Long-life solid-state zirconia sensor
- Measurement range: 0 to 1,000ppm, 0 to 25%, 0 to 96% O2
- 2 and 3 sensor option available
- Integral flow meter for positive pressure sample flow indication
- Lightweight, rugged and portable
- LCD + 4 button HMI
Yellow-Box-Oxygen-Analyzer
From
$
5,297.00
Product Overview
- Applications Gases, Industrial and Manufacturing, Medical Equipment, Pharmaceutical
- Calibration Note Internal Regulation: 0.2 MPa (Up to 2 barg / 29 psig) Sample pressure and flow set at 0.03 MPa (0.3 barg / 5 psig); 0.55 SCFH (250 ml/m)
- Electrical Output 4 to 20 mA
- Enclosure Ratings IP67
- Housing Material Polypropylene
- Lifetime up to 5 yr
- Operating Humidity 0 to 95% RH, non-condensing
- Operating Temperature, Max 60 °C
- Operating Temperature, Min -25 °C
- Process Connection Size 6 mm
- Process Connection Type Compression Fitting
- Resolution 1 ppmV or 0.01 %
- Response Time < 15 seconds @ 25 °C (77 °F) within selected range
- Sample Pressure Up to 2 barg (29 psig) internal preset
- Sensitivity 1 ppmV or 0.01 %
- Sensor Type Zirconia
- Series ID Yellow-Box-Oxygen-Analyzer
- Shelf Life unlimited
- Supply Power Type AC
- Supply Voltage 85 to 264 Vac / 50 Hz
- Volumetric Flow Rate, Max 500 ml/min
- Width 300 mm
Supported Applications
The ntron Yellow Box Portable Oxygen Analyser is a compact, transportable instrument designed for high accuracy oxygen measurement. Based on the Microx range of Oxygen Analysers, it incorporates two selectable analysers to address application-dependent requirements. The series supports primary instrumentation verification across an extensive range of applications where portable line-powered analysis is required.
Typical measurement ranges include 0...1000 ppmv and percentage oxygen levels up to 25% or 96%, depending on the configured sensor model.
Operating Conditions & Performance
The Yellow Box operates within an ambient temperature range of -25...+60 °C (-13...+140 °F) and supports humidity levels from 0...95 %rh non-condensing. The internal preset pressure rating is up to 2 barg (29 psig), with a recommended sample flow rate of 500 ml/min.
Performance specifications include:
- Sensor Type: Zirconia Oxide
- Accuracy: 2% of FSD (Full Scale Deflection)
- Resolution: 1 ppmv or 0.01 %
- Lower Detection Limit (LDL): 1 ppmv or 0.01 %
- Response Time (T90): < 15 seconds @ 25 °C (77 °F) within selected range
- Sensor Life Expectancy: Up to 5 years, depending on air exposure and other gases
The unit features a robust carry-case with an IP67 rating when closed for transportation. It is powered by 85...264 V AC (50 / 60 Hz) with a maximum power consumption of 8 W per analyzer channel.
Configuration Options
The series offers configurable sensor options to match specific measurement needs:
- Model 100: Zirconia (ZR) sensor with a range of 0...1000 ppmv and 0...25 %.
- Model 200: Configured for percentage analysis, typically covering ranges such as 0-96% or 0-25% depending on the specific analyzer channel selected via the internal switch.
- Model 300: Supports multiple measurement capabilities including 0...1000 ppmv, 0...25 %, and 0...96 % ranges within a single unit configuration.
The instrument includes an in-built flow indicator to ensure the correct amount of sample gas is presented to the internal sensors. An optional battery-powered configuration (Backup battery @ 12VDC , 2.3AH) allows for remote operation where mains power is unavailable or as a backup during failure.
Key Product Differences
Differences between models are primarily defined by the sensor range and physical dimensions:
- Dimensions (mm):
- Model 100: 410 x 300 x 165.5 mm
- Models 200 & 300: 350 x 300 x 150 mm
All models utilize a high impact co-polymer polypropylene housing and feature sample connections via 6 mm or 1/4" 'bulkhead' tube compression fittings. The unit includes an analyzer select switch to choose between the internal analyzers, with output available as 4...20 mA.
Compliance standards include CE marking and EMC: EN 50270. Users should note that over-pressure at the sample gas input or moisture in the stream can damage the internal sensors, particularly when un-powered.
