Series-3MSV

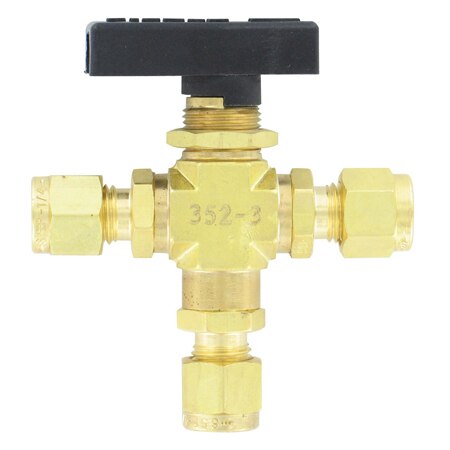

Compact 3-Way Ball Valves – Brass/Stainless Steel, PTFE Seats, High Pressure
Series-3MSV
From
$
163.10

Product Overview
- Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
- Operating Temperature, Max 350 °F
- Operating Temperature, Min -40 °F
- Pressure Limits Up to 1500 psi
The Series 3MSV Compact 3-Way Ball Valves are the perfect choice for directional control of fluid in instrumentation and process systems. The micro finished ball and PTFE seats ensure quality seal and easy operation. The straight through flow path design allows for minimal pressure drop. The valve body comes in either brass or 316 stainless steel, offering a variety of options. Blow-out-proof ball and stem provides extra durability and safety in the event of over pressure.
