CM-E1-Series

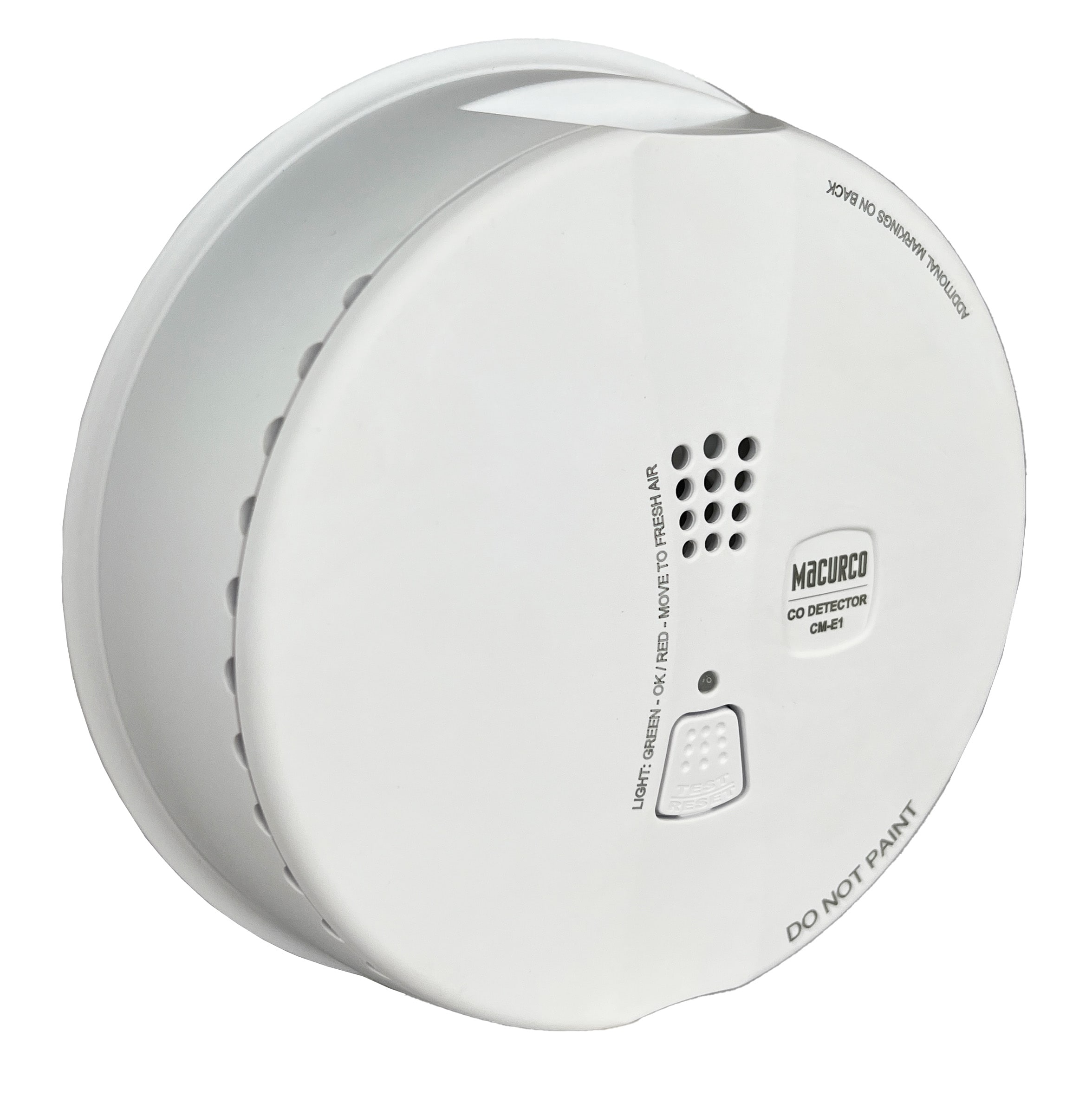

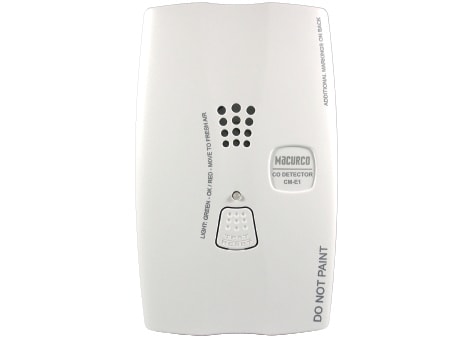

CM-E1 Residential Fixed Carbon Monoxide Gas Monitor

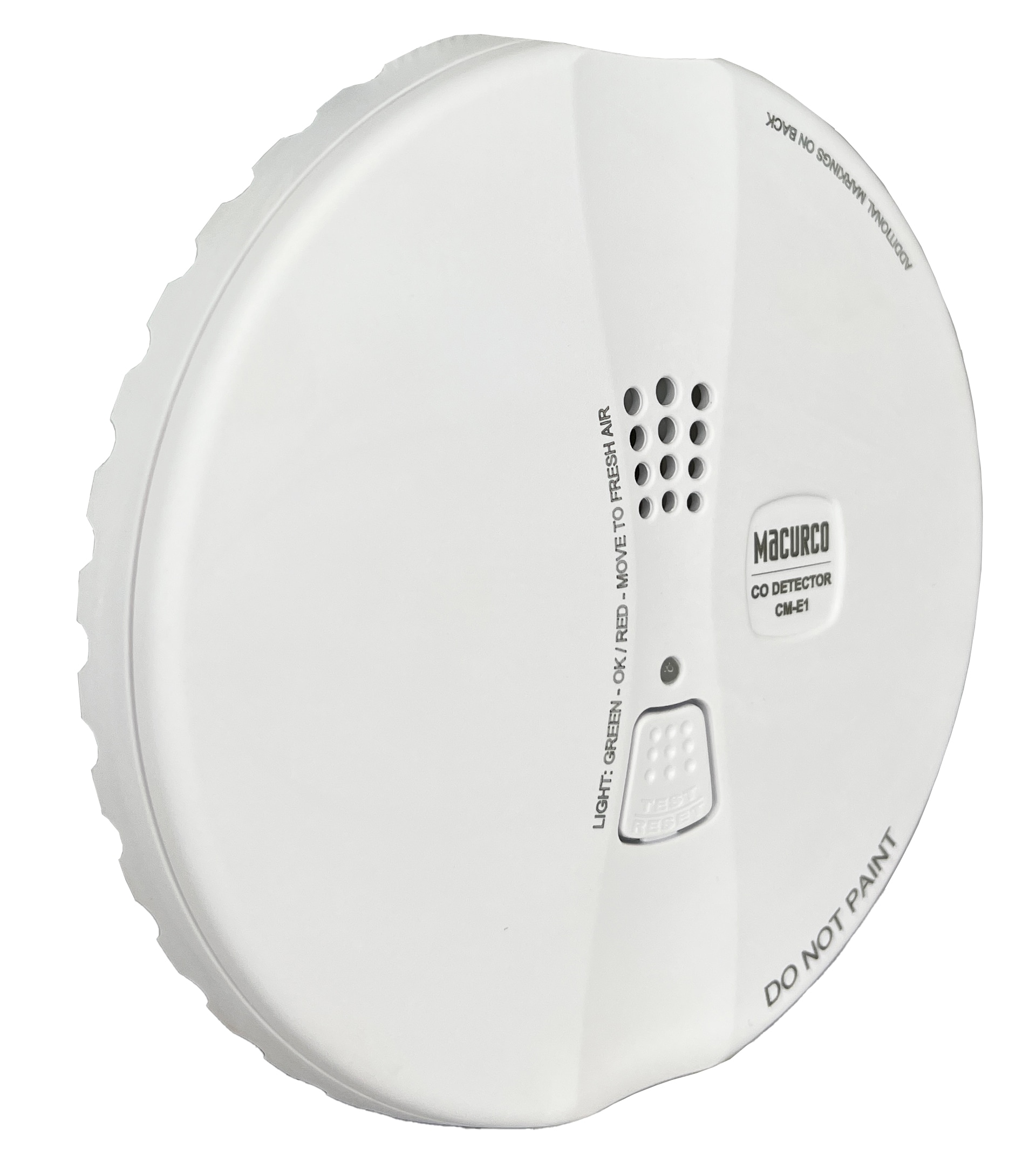

- Flush or Surface Mount Enclosure
- N.O. or N.C. Alarm Relay
- N.C. Trouble/Supervisory relay
- Coverage Area: 900 sq. ft.
- Low replacement costs with long life sensors
- Low maintenance with no calibration needed
- Local alarms
- Clip in wire harness (CM-E1 & GD-2B) for in and out replacement
- CSFM Listed
- Made in America
CM-E1-Series
From
$
115.00
Product Overview
- Additional Features Low replacement costs with long life sensors. Low maintenance with no calibration needed. Local alarms. Clip in wire harness (CM-E1 & GD-2B) for in and out replacement
- Alarm Indication Red LED, Audible Alarm
- Audible Alarm 85 dB @ 10 ft
- Buzzer 85 dB at 10’ Alarm: Temporal 4, Trouble – single chirp
- Circuit Protection none
- Compliance Note CSFM Listed
- Control Output Alarm SPST Relay, Trouble SPST Relay
- Coverage Area 900 sq ft
- Current Draw (Normal/alarm) 15mA/35mA @ 9-32V
- Current Output 100 mA
- Data Logging No
- Finishing White
- LED Indicators LED (Red alarm, amber trouble, green normal)
- Network and Communications Alarm Relay: SPST, 100mA, 40VDC; Trouble Relay: SPST, 100mA, 40VDC
- Number of Outputs 2
- Operating Humidity 0 to 90% RH, non-condensing
- Operating Temperature, Max 100 °F
- Operating Temperature, Min 40 °F
- Output Detail Output 1: N.O. or N.C. SPST Alarm Relay, 100 mA, 40 Vdc; Output 2: N.C. SPST Trouble Relay, 100 mA, 40 Vdc
- Sensor Life 10_yr
- Sensor Replaceable No
- Sensor Type Electrochemical
- Series ID CM-E1-Series
- Supply Power 9 to 32 Vdc
- Supply Voltage 9 to 32 Vdc
- Supported Devices UL listed fire alarm/burglary control panels
- Target Gas CO
- Weight 0.5 lb
The Macurco CM-E1 is a reliable, lightweight, and aesthetically pleasing gas detector made
to keep you and the people you care about safe from harmful gases in residential and light
commercial applications. – UL Listed, CSFM Approved
