CCT70-200

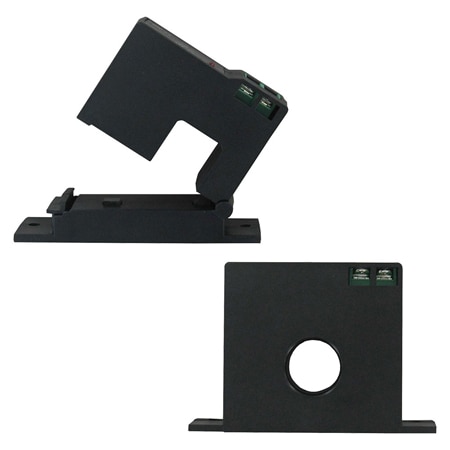

Current transformer, 100/150/200 A input, 4-20 RMS output, solid core.
Choose a Variant
Current Measurement Range
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 1 % |
| Core Type | Solid |
| Current Measurement Range | 100/150/200 A |
| Electrical Output | 4 to 20 mA |
| Enclosure Ratings | UL94 V-0 |
| Frequency | 10 to 400 Hz |
| GrossWeightValue | 0.1 |
| Input Type Note | Field selectable; up to 200 A (depending on model) |
| Isolation | 2000 V |
| Materials | ABS |
| Measurement Type | Current |
| Operating Temperature, Max | 158 °F |
| Operating Temperature, Min | -22 °F |
| Output Detail | 4 to 20 mA, True RMS |
| Relative Humidity | 0 to 95%, Non-Condensing |
| Response Time | 250 ms to 90% |
| Series ID | Series-CCT60-70 |
| Spec Sheet QR URL | https://www.dwyeromega.com/en-us/cct60-70-true-rms-current-transformer-for-distorted-ac-waveforms/Series-CCT60-70/p/CCT70-200?guid=701a700000ulrduaaq&utm_source=spec-sheet&utm_medium=qr-code&utm_campaign=prd-sku-spec-sheet&utm_content=auto-generated-sku-level-spec-sheet |
| Supply Power Type | DC |
| Supply Voltage | 24 Vdc |
| Country of Origin | China |
