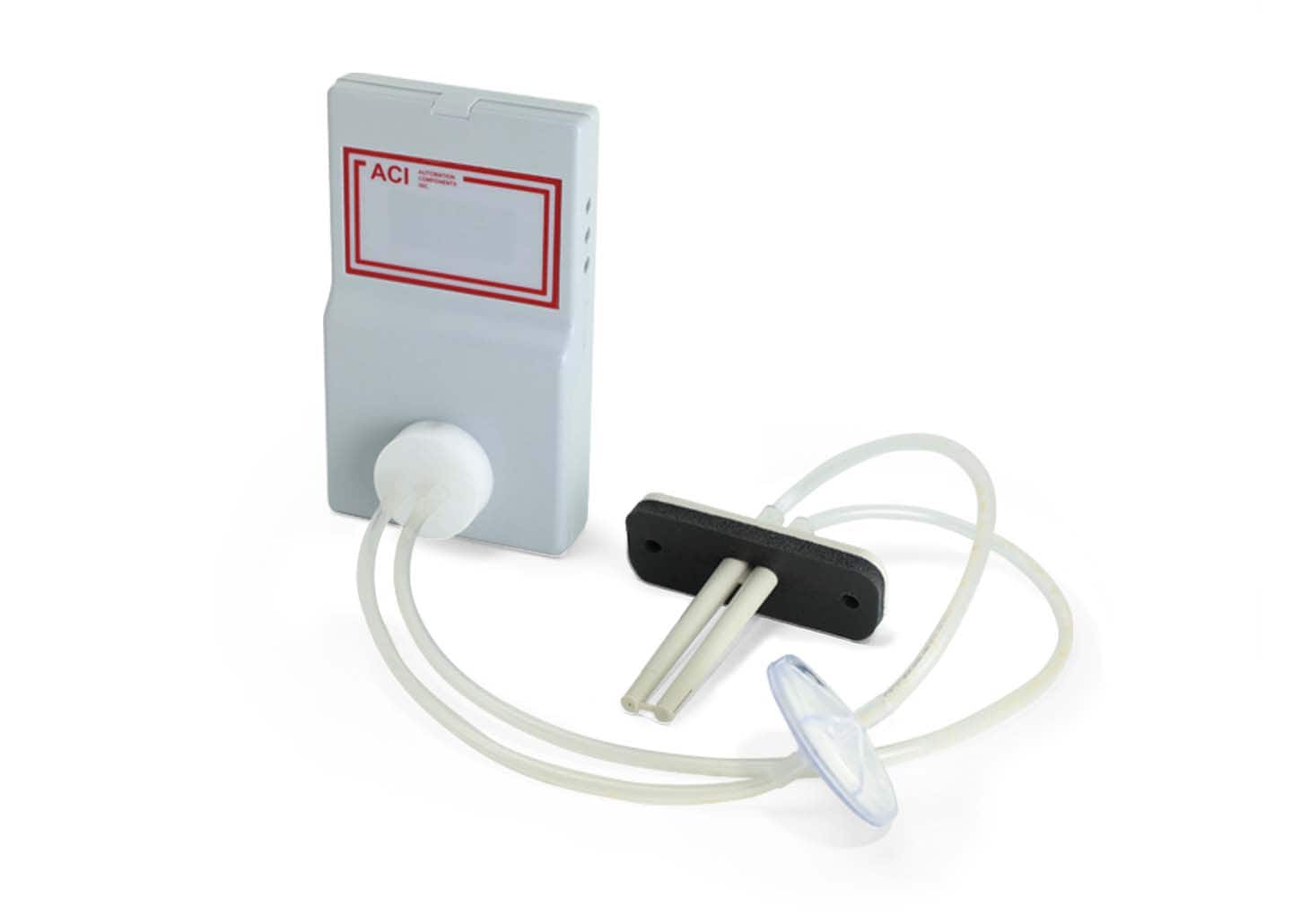

CO-Duct
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 2.5 % |
| Applications | Access and Parking Control Systems, Building and Maintenance, Commercial and Industrial |
| Cable Type | Insulated Shielded |
| Electrical Connection | Screw Terminal |
| Electrical Life | 200,000 cycles minimum with 1A @ 30 VDC |
| Electrical Output | 4 to 20 mA, 2 to 10 Vdc |
| Enclosure Material | Polycarbonate/ABS Blend, UL94V-0 |
| Factory Setting | 0 – 125 ppm / 0 – 250 ppm Field Adjustable |
| Filter | 5 micron |
| Installation | 4’ to 6’ above the floor |
| Material Construction Option | none |
| Measuring Range | 7500 sq. ft. maximum |
| Operating Humidity | 15 to 90% RH, non-condensing |
| Operating Temperature, Max | 104 °F |
| Operating Temperature, Min | -4 °F |
| Pitote Tube | 3 5/32 in |
| Power Consumption | 6.6 W max |
| Repeatability | +/- 1% of Reading |
| Response Time | Less than 60 Seconds for 90% of step change |
| Sensor Life | ~ 5 years under Normal Conditions |
| Sensor Type | Electrochemical |
| Series ID | CO-Duct |
| Supply Current | 250 mA |
| Supply Voltage | 22 to 26 Vac/Vdc |
| Tightening Torque | 0.37 ft-lbs (0.5n-3m) Nominal |
| Time Delay | 0 to 60 min |
| Tube Length | 18 in |
| Tube Material | Vinyl |
| Wire Gauge | 26 to 16 AWG |
| See All Specs | |
