TSENSE-Series

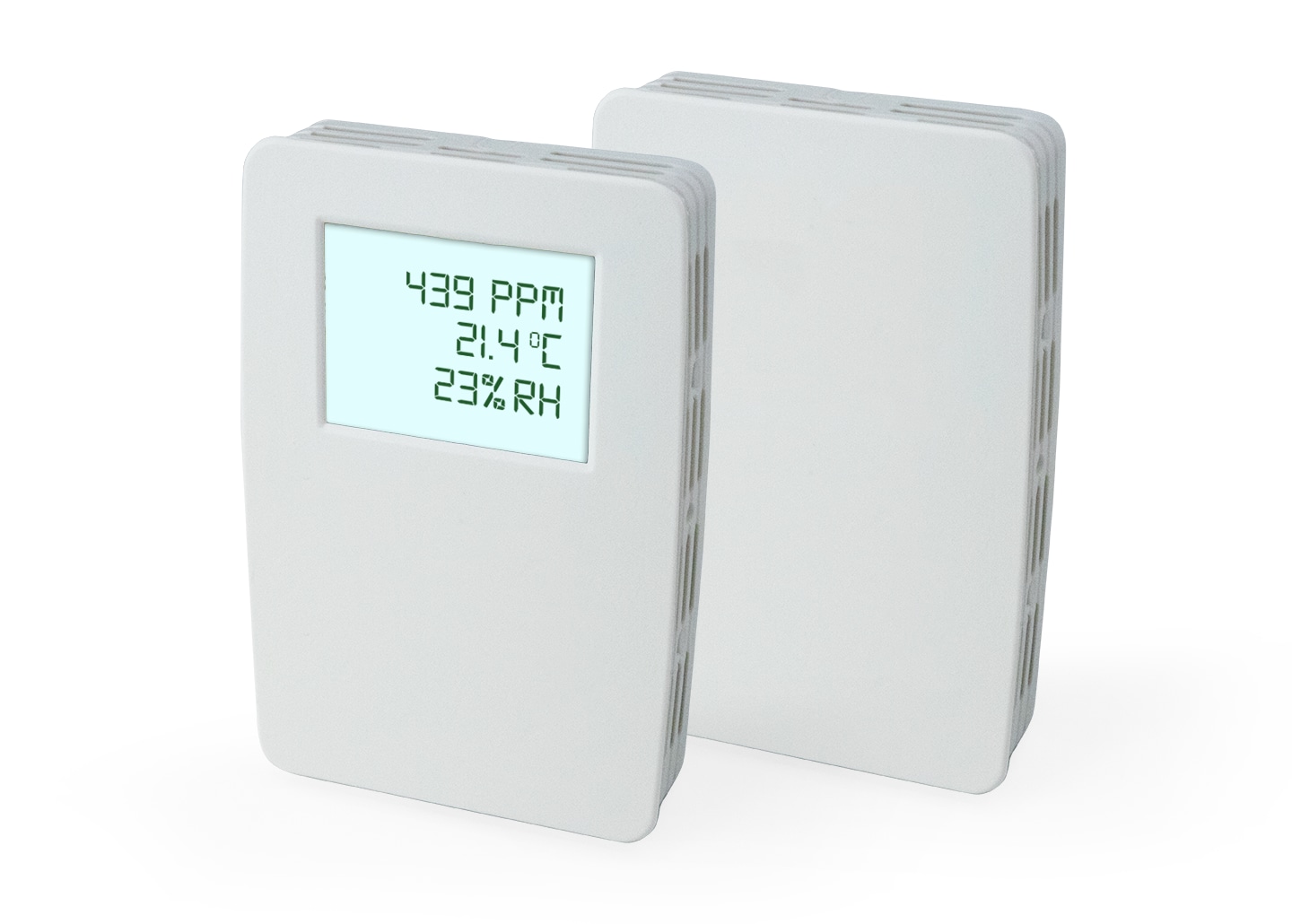

Carbon Dioxide Sensor, Analog, Modbus, or BACnet, RH/TEMP, RELAY
- Commercial Office Buildings
- Gymnasiums
- Shopping Malls
- Auditoriums
- Theaters
- Hospitals & Schools
- Demand Control Ventilation & Economizers
TSENSE-Series
From
$
239.00
Product Overview
- Additional Features 1 Maintenance free
- Applications Air and HVAC, Building and Maintenance
- Calibration Note CO2 Calibration 3: Senseair ABC algorithm (Automatic Baseline Correction)
- CO2 Measurement Range 0 to 2000 PPM
- Data Interface BACnet MS/TP, Modbus RTU
- Deadband 100 ppm
- Diagnostics Complete function check
- Enclosure Material ABS, Polycarbonate
- Enclosure Material Note Bayblend FR3000 (PC & ABS blend), Flammability rating UL 94V-0
- Enclosure Ratings UL94 V-0
- Humidity Measurement Range 0 to 100 %
- Hysteresis ±1% @ 20 to 80% RH
- Installation 4-6’ off the floor
- Length 0.87 in
- Material Construction Option none
- Network and Communications 0 to 127 (Default 104)
- Operating Environment Residential and Commercial spaces
- Operating Humidity 0 to 95% RH, non-condensing
- Operating Temperature, Max 122 °F
- Operating Temperature, Min 32 °F
- Output Detail Out 1 (CO2): 0 to 10V, 0 to 2000 ppm Out 2 (Temperature): 0-10V, 32°F to 122°F (0°C to 50°C) Out 3 (RH): 0 to 10V, 0 to 100% RH
- Power Consumption 2 W
- Pressure Dependence ±1.6% per 0.145 psi (1 kPa) deviation from normal pressure (1 Atmospher = 14.7 psi (1.013 KPa))
- Repeatability ±00.45°F @ 63 to 82°F (±0.25°C @ 17 to 28°C); ±0.25% RH @ 63 to 82°F (±0.25% RH @ 17 to 28°C)
- Resolution 10-bits, 10mV/steps, , 0.1% steps of full ppm/°C/%RH range
- Response Time <3 minute diffusion time
- Sensing Method Single bean non-dispersive Infrared (NDIR)
- Sensor Life > 15 years (typical)
- Series ID TSENSE-Series
- Software CO2 (Default) / Temp/RH Configurable via Touchscreen or UIP5 Software
- Storage Temperature, Max 158 °F
- Storage Temperature, Min -22 °F
- Supply Voltage 12 Vdc, 24 Vac/Vdc
- Trip Point Note Relay Trip Point (CO2): 1000 ppm (factory set)
- Zero Drift ± 0.3 %
