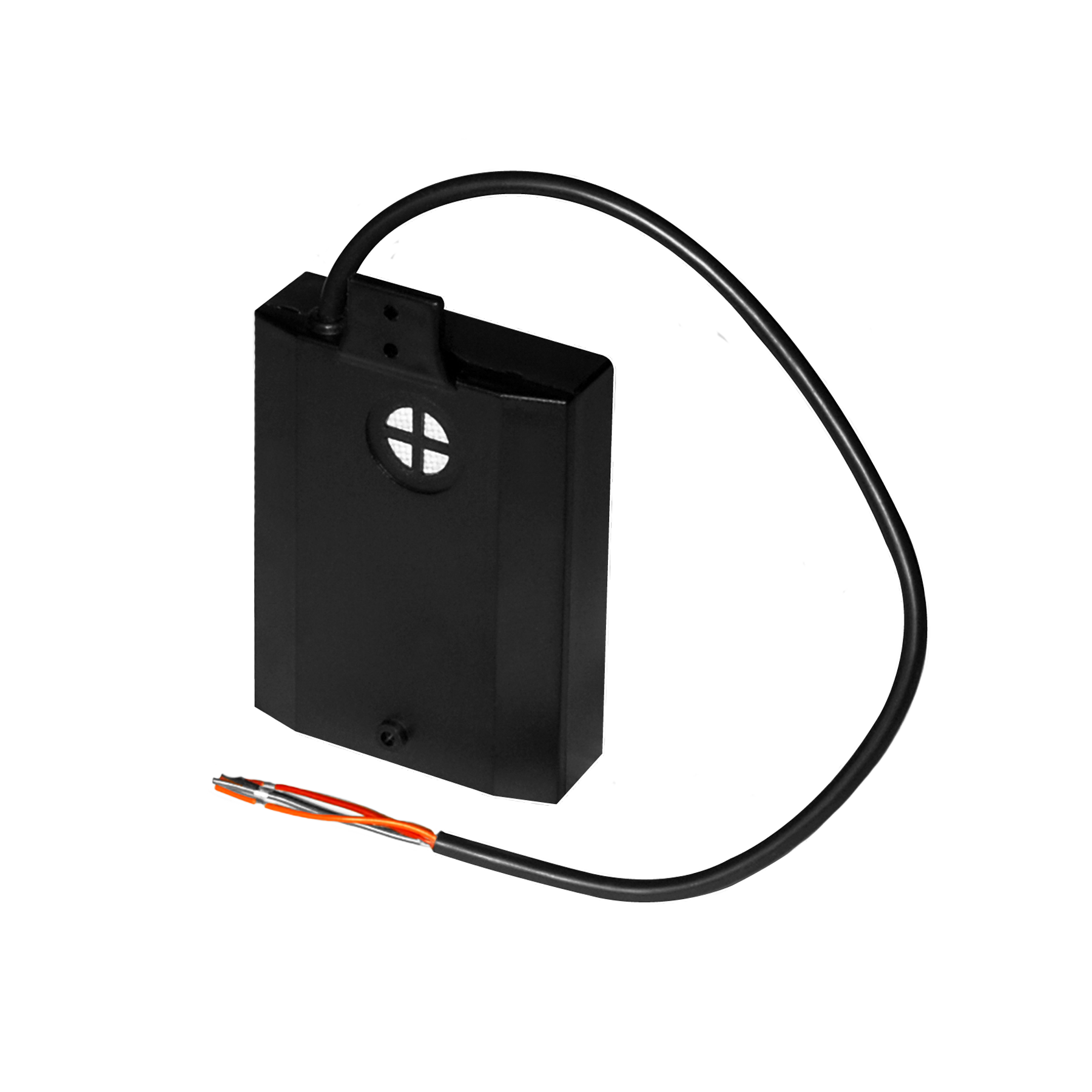

Esense-Duct
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 30 ppm, ±3 % |
| Accuracy Detail | Extended Range Accuracy >2,000 PPM: +/- 30 ppm and +/- 5% of reading |
| Applications | Air and HVAC, Building and Maintenance |
| Approvals | EMC Directive 2014/30/EC |
| CO2 Measurement Range | 0 to 2000 PPM |
| Calibration Note | Calibration3: Senseair ABC algorithm (Automatic Baseline Correction) |
| Dimensions Note | Room Dimensions: (H) 5.95” (151.8 mm) x (W) 3.33” (84.6 mm) x (D) 1.85” (47 mm) |
| Electrical Connection | Screw Terminal |
| Electrical Output | 0 to 20 mA, 4 to 20 mA, 0 to 10 Vdc, 2 to 10 Vdc |
| Enclosure Material | ABS, Polycarbonate |
| Enclosure Material Note | Duct Box: IP65 rated, PC & ABS blend, Flammability Rating UL94V-0 Cover: Makrolon® 6555 plastic, Flammability Rating UL94V-0 Pipe: PC & ABS blend, Flammability Rating UL94V-0 |
| Enclosure Ratings | IP65, UL94 V-0 |
| Material Construction Option | none |
| Operating Environment | Residential, Commercial and Industrial spaces |
| Operating Humidity | 0 to 95% RH, non-condensing |
| Operating Temperature, Max | 122 °F |
| Operating Temperature, Min | 32 °F |
| Power Consumption | 1 W |
| Repeatability | ±20 ppm ±1% of measured value |
| Response Time | < 3 minutes diffusion time |
| Sensor Life | >15 years |
| Sensor Type | Single beam infrared sensing technology (NDIR) |
| Series ID | Esense-Duct |
| Storage Temperature, Max | 158 °F |
| Storage Temperature, Min | -40 °F |
| Supply Voltage | 24 Vac/Vdc |
| Warm Up Time | 1 minutes (@ full specs 15 minutes) |
| Weight | 0.8 lb |
| Zero Drift | ± 0.3 % |
| See All Specs | |
