BRS-485-Series

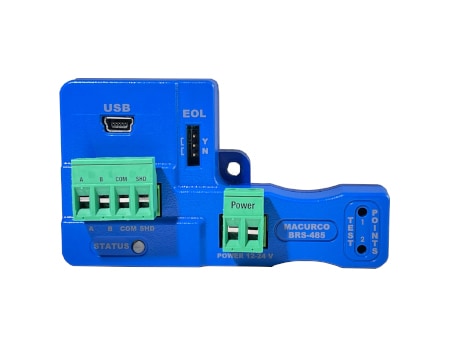

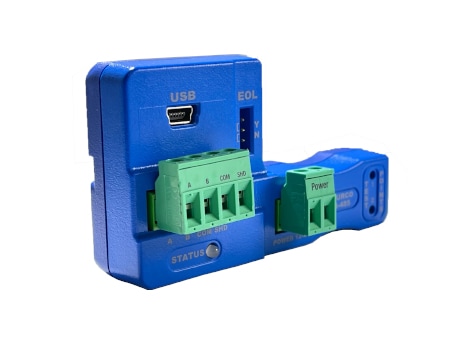

BRS-485 Analog to Digital Protocol Adapter
- 8-bit dip switch address selector
- The BRS-485 monitor’s sensor type, gas level, and trouble status communications
- Communication selectable from Modbus, BACnet, Siemens, and Metasys
- Commercial-type enclosure to protect and support the electronics
- Tricolor LED indicates power, test and communication status

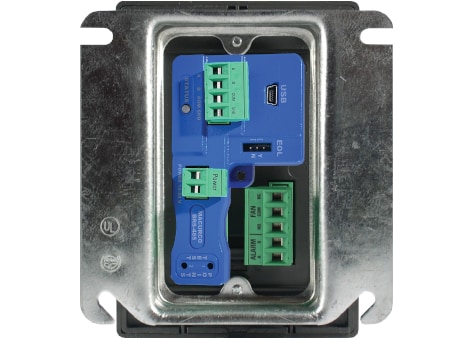

- Mounts behind the detector inside of a standard 4” x 4” electrical box
- Made in America
BRS-485-Series
From
$
330.00
Product Overview
- Accessory Mounting Behind the detector inside of 4” x 4” electrical box
- Accessory Type Adapter
- Applications Building and Maintenance, Energy Management Systems, HVAC, Laboratories
- Baud Rate 2400 to 115200
- Compatibility Compatible With: Macurco low voltage 6-series detectors; building automation systems, control panels, or other control devices that accept Modbus, BACnet, Metasys, and Siemens communication protocols; 16 to 28 AWG wire gauges.
- Data Interface RS-485, Modbus RTU, BACnet MS/TP, Metasys N2, Siemens FLN
- Data Interface Note RS-485: Termination is selectable via jumper for either no termination (default) or 120 ohm termination. The interface supports a range of baud rates, parity, and address settings depending on the communication protocol used. Connections are made via terminals compatible with 16 to 28 AWG wire gauges.
- Display Note Tricolor LED indicates power, test and communication status
- Display Type LED
- Electrical Rating Note • Power & Current (without detector)=1.5 W (max) @ 12 to 24 VAC or VDC (V~) • Power & Current (with detector)=3.25 W (max) @ 12 to 24 VAC or VDC (V~); 85 mA @ 24 VDC (V~), 60 mA (fan relay on) @ 24 VDC (V~), 33 mA (standby) @ 24 VDC (V~)
- Enclosure Note Commercial-type enclosure to protect and support the electronics
- Expansion & Connectivity Connectivity: Provides an RS-485 physical interface supporting Modbus RTU, BACnet MS/TP, Metasys N2 Slave, and Siemens FLN Slave communication protocols.
- Finishing Blue
- Height 3.5 in
- Input Note Accepts 4-20mA analog input from 6-series detectors; wire gauge compatibility 16 to 28 AWG; selectable 120 ohm termination; configurable address ranges (Modbus 1-247, BACnet 0-127, Metasys 1-255, Siemens 1-98); parity and baud rate options per protocol.
- Mounting Behind the detector inside of 4" x 4" electrical box
- Mounting Note Mounts behind the detector inside of a standard 4” x 4” electrical box
- Network and Communications Physical Interface: RS-485; Supported Protocols: Modbus RTU (Address Range 1-247; Parity Odd, Even, None), BACnet MS/TP (Address Range 0-127; Parity No Parity), Metasys N2 Slave (Address Range 1-255; Parity No Parity), Siemens FLN Slave (Address Range 1-98; Parity No Parity); Termination: Selectable via jumper (No termination or 120 ohm); Wire Gauge Compatibility: 16 to 28 AWG
- Operating Environment Operating temperature: 14°F to 122°F (-10°C to +50°C); Operating humidity: 20 to 90% RH non-condensing
- Operating Humidity 0 to 90% RH, non-condensing
- Operating Temperature, Max 125 °F
- Operating Temperature, Min 0 °F
- Operating Temperature Note 14°F to 122°F (-10°C to +50°C), non-condensing, 20 to 90% RH
- Output Detail Modbus RTU
- Overall Depth 1.75 in
- Programming jumper (for selecting termination)
- Series ID BRS-485-Series
- Supply Power Type Electric
- Supply Voltage 12 to 24 Vac/Vdc
- Supported Devices Macurco low voltage 6-series detectors, Building Automation Systems, control panels, and other control devices that accept Modbus, BACnet, Metasys, and Siemens FLN communication protocols
- Width 2 in
The Macurco BRS-485 Adapter is an accessory used to convert the 4-20mA analog signal from Macurco 6-Series type detectors to a digital signal for use with multipoint addressable systems. This device connects to the back of the detector, and a single screw fastens it in place. The BRS-485 accepts the 4-20mA output and is powered from the same connection as the detector. It can interface with Building Automation Systems, control panels, or other control devices that accept Modbus, BACnet, Metasys, and Siemens communication protocols.
