Series-FLT93B

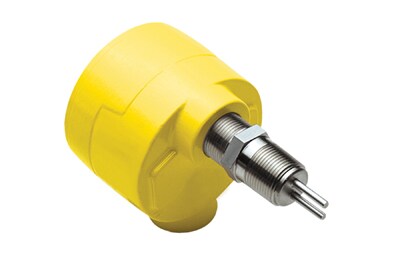

Basic Insertion Type Field-configured Flow Switch with FlexSwitch Technology

(0)

Ideal for detecting flow/no-flow conditions in liquids and gases
Thermal dispersion switch with dual 6A SPDT relay outputs
Industrial thermal flow switch with relay outputs for pump protection
Reliable flow switching performance at an economical price point

See Product Overview

Series-FLT93B

From ^$ 1,630.00

Shop Models

3 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy Detail •Gas Flow: ± 0.5 % reading or ± 2 SFPS [± 0,06 NMPS] •Liquid Flow: ± 0.5 % reading or ± 0.04 FPS [± 0,012 MPS] •Level/Interface: ± 0.25" [± 6,4 mm] •Temperature: ± 2 ºF [± 1 ºC]
Conduit Connection 1 in NPT Female Conduit
Control Output 2 SPDT, 1 DPDT
Enclosure Material Aluminum
Enclosure Material Note Polyester powder coated aluminum rated for NEMA Type 4X/IP67
Enclosure Ratings Explosion-Proof
Enclosure Ratings Note Explosion-Proof for Class I, Division 1, Groups B, C and D; Dust-Ignition-Proof for Class II, Division 1, Groups E, F and G; Class III, Division 1; Nonincendive for Class I, II and III, Division 2, Groups A, B, C, D, E, F and G,
Identification Tag Stainless steel metal tag
Operating Temperature, Max 140 °F
Operating Temperature, Min -40 °F
Output Signal Voltage
Measurement Pressure, Max 2350 psi
Pressure Note 2350 psig [162 bar (g)]
Measurement Pressure Type Gauge
Process Connection Size 3/4 in
Process Connection Type NPT Male
Relay Output 6 A @ 115 Vac/220 Vac/24 Vdc
Repeatability Note •Switch Point: ± 0.5 % reading •Level/Interface: ± 0.125" [± 3,2 mm] •Temperature: ± 1 ºF [± 0,6 ºC]
Response Time 3 seconds
Sensor Material 316L Stainless Steel
Sensor Temperature, Max 350 °F
Sensor Temperature, Min -40 °F
Series ID Series-FLT93B
Service Setpoint Range •Water-based Liquids: Set in the field. 0.01 FPS to 0.5 FPS [0,003 MPS to 0,15 MPS] for 0.75 W heater, 0.01 FPS to 3.0 FPS [0,003 MPS to 0,9 MPS] for 3.0 W heater •Hydrocarbon-based Liquids: 0.01 FPS to 1.0 FPS [0,003 MPS to 0,3 MPS] for 0.75 W heater, 0.01 FPS to 5.0 FPS [0,003 MPS to 1,5 MPS] for 3.0 W heater •Air/gas: 0.25 SFPS to 120 SFPS [0,08 NMPS to 37 NMPS] -0.75 watt heater at standard conditions of 70 ºF [21.1 ºC] and 14.7 psia [1,013 bar (a)]
Supply Voltage 120 to 230 Vac, 24 Vdc
Switch Type Flow / Level Switch
Weight 8 lb

Supported Applications

The FLT93B FlexSwitch is a preconfigured version of FCI's Model FLT93S, designed for simplified ordering and quick shipment. It is a premium flow, level/interface, and temperature monitor that uses thermal dispersion sensing with no moving parts, so it responds to changes in flow, level, or temperature to drive an alarm or control signal.

The switch is suited to water-based liquids, hydrocarbon-based liquids, and air/gas applications, and its all-welded 316L stainless steel wetted surfaces give broad media compatibility for process, safety-interlock, and level/interface detection duties.

Operating Conditions & Performance

The FLT93B reports flow as an analog signal and detects level/interface and temperature with the following performance:

Flow accuracy: ±0.5 % reading.
Level/interface accuracy: ±6.4 mm, with repeatability of ±3.2 mm.
Temperature accuracy: ±1°C, with repeatability of ±0.6°C.
Response time: as low as 3 seconds.

Power is supplied from a universal AC/DC input, with terminals and jumpers on the circuit board selecting AC 108-132V, AC 207-253V, AC 18-28V, or DC 21-30V. Electrical connection is through a 1" female NPT conduit port, and the process connection is 3/4" male NPT. The wetted element is all-welded 316L stainless steel, and the housing is polyester powder coated aluminum. Insertion U-lengths are offered at 30 mm, 51 mm, and 102 mm.

Configuration Options

Because the FLT93B is a preconfigured build, the models differ mainly by insertion depth while sharing the same sensing platform, materials, and outputs.

Insertion U-length: the three catalogued builds correspond to the 1.2" [30 mm], 2" [51 mm], and 4" [102 mm] insertion depths.
Heater power: the flow range depends on the selected heater; a 0.75 watt heater and a 3.0 watt heater give different measurable flow spans for liquids and gases.
Agency approval and input power are also selectable within the FLT93B ordering string.

Key Product Differences

The series is ordered as FLT93 B followed by agency approval, insertion U-length, identification tag, and input power. The three catalogued configurations are:
