HHP360

Barometric Smart Manometer

3.5

(2)

NIST Traceable Calibration Certificate Included
Very High 0.015% Accuracy
Absolute Pressure
Barometric Pressure (Corrected to Sea Level)

See Product Overview

This item is discontinued.

Please contact Technical Sales Team for assistance.

Data Sheet

Product Overview

Accuracy Class < 0.1%
Accuracy Detail (Includes thermal errors from -5 to 50ºC (23 to 122ºF) HHP360-A: ±0.02%FS HHP360-B: ±0.015% FS from 0 to 19.337 psia (0 to 1000 mmHgA) ±0.025% FS from 19.338 to 38.674 psia (1000 to 2000 mmHgA)
Additional Features 1 Selectable Engineering Units, MIN/MAX, Datalogging;Tare, Min/Max capture, leak test, damping rates, auto shutoff
Backlight true
Battery life 100 hr
Battery Size and Type Alkaline AA
Case Material Polycarbonate, sealed keypad
Data Interface N/A
Display Measuring Units bar, ft, inHg, kPa, m, mbar, mmHg, psi, torr
Display Resolution 2 line x 16
Display Type 5 Digit LCD
Height 165 mm
Length 57 mm
Materials 316 Stainless Steel
Number of Batteries 4
Number of Digits 6
Operating Temperature, Max 50 °C
Operating Temperature, Min -5 °C
Pressure Accuracy ± 0.015 %
Pressure, Max 38.674 psi
Pressure, Min 0 psi
Process Connection Size 1/8 in
Process Connection Type NPT Female
Proof Pressure Up to 77 Psi
Storage Temperature, Max 60 °C
Storage Temperature, Min -400 °C
Supply Power Note 4 “AA” batteries (included)
Weight 14 oz
Width 91 mm

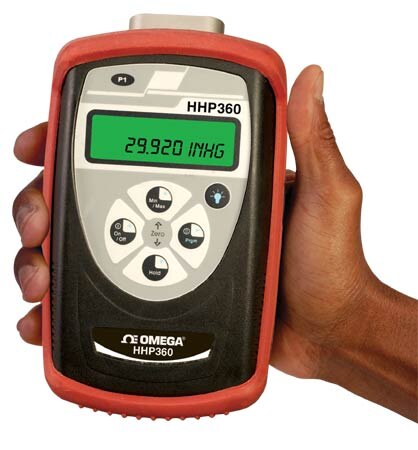

Omegas HHP360 is a very high accuracy, handheld barometer/ absolute pressure meter suitable for the most demanding field or laboratory conditions. It can measure absolute pressure, barometric pressure (corrected to sea level) or altitude based upon sea level or corrected for a map or trig marker. Pressure can be displayed in 1 of 7 different engineering units. Altitude can be displayed in either meters or feet. The HHP360 Series also has a leak test mode to determine the rate of leakage in a pneumatic system, and data logging, either automatic (taking readings every 5 seconds for 20 minutes) or manual for up to 240 readings.

SPECIFICATIONS
(Absolute Pressure):
HHP360-A: 0 to 17.403 psia (0 to 900 mmHg, 0 to 35.433 inHg)
HHP360-B: 0 to 38.674 psia (0 to 2000 mmHg, 0 to 78.740 inHg)
Accuracy: (Includes thermal errors from -5 to 50oC (23 to 122oF)
HHP360-A: ±0.02%FS
HHP360-B: ±0.015% FS from 0 to 19.337 psia (0 to 1000 mmHgA)
±0.025% FS from 19.338 to 38.674 psia (1000 to 2000 mmHgA)
Operating Temperature: -5 to 50 °C (23 to 122 °F)
Storage Temperature: -40 to 60 °C (-40 to 140 °F)
Safe Overpressure: 77 psia (4000 mmHg)
Display/Resolution: 5 significant digits LCD (0.25" high) 2 line x 16 alphanumeric characters with adjustable contrast
Operating Modes: Local pressure, sea level pressure from user set height, altitude from user set datum
Backlight: Green, changes to red for overpressure
Units of Measure: mmHg, inHg, PSI, mbar, bar, kPa, Torr, feet, meters
Process Features: Tare, Min/Max capture, leak test, damping rates, auto shutoff
Process Media: Fluids and gases compatible with 316 SS
Pressure Fitting: 1/8 NPT female, 316 SS
Power: 4 AA batteries (included)
Battery Life: >100 hr continuous use
Case: Polycarbonate, sealed keypad
Dimensions: 165 H x 91 W x 57 mm D (6.5 x 3.6 x 2.25")
Weight: 400 g (14 oz)
