DS-300-10-LV

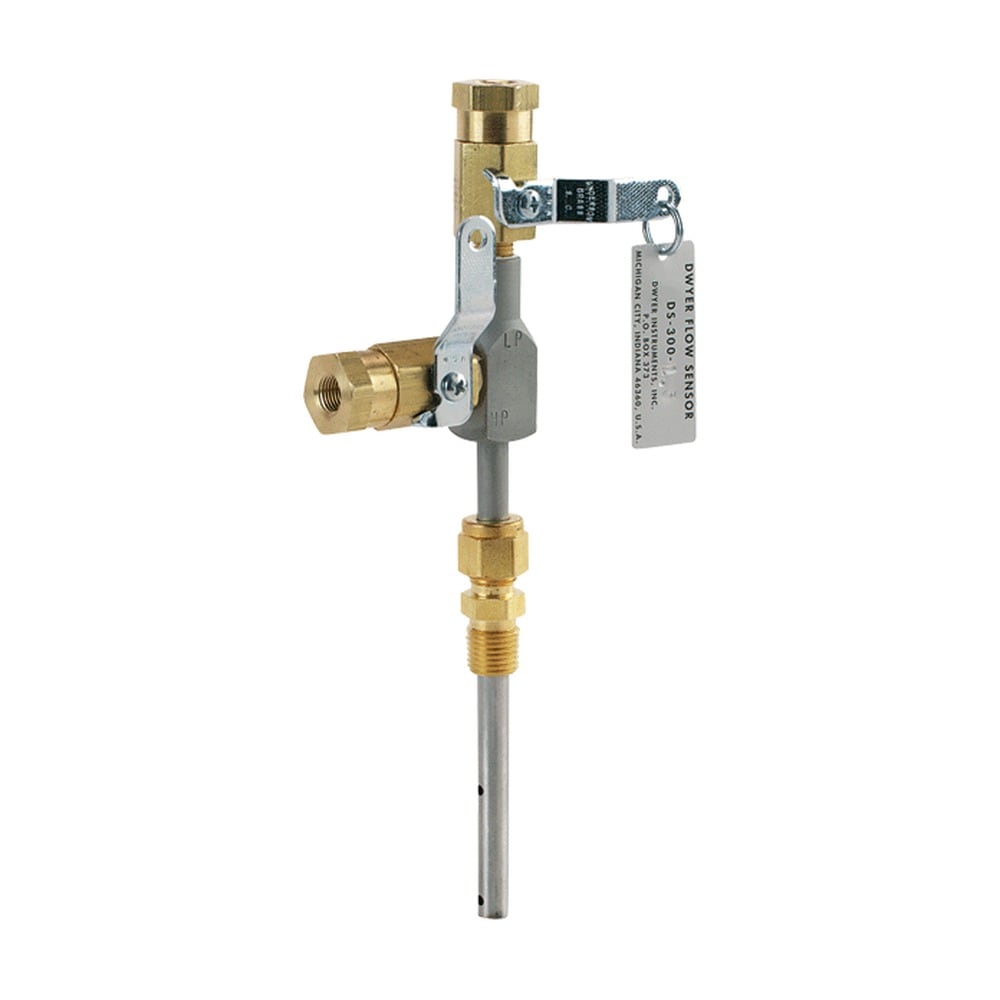

Flow sensor, 10" pipe size, without valves.
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Additional Features 1 | Less Valves |
| GrossWeightValue | 0.1 |
| Instrument Connection Note | 1/8˝ female NPT; optional 1/8˝ female NPT x 1/4˝ SAE 45 flared adaptor sold separately |
| Instrument Connection Size | 1/8 in |
| Instrument Connection Type | NPT Female |
| Measurement Pressure Type | Gauge |
| Operating Temperature, Max | 360 °F |
| Pipe Size | 10 in |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT Male Compression Fitting |
| Proof Pressure | Up to 200 psi |
| Series ID | Series-DS |
| Country of Origin | United States |
| See All Specs | |
