Series-AT-1900Configuration

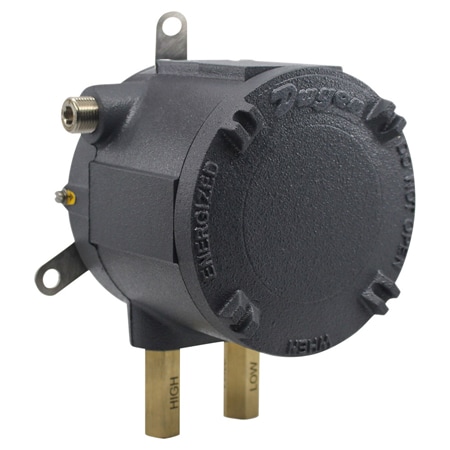

ATEX/IECEx Compact Low Differential Pressure Switch, 0.07-20 inH2O
- Flameproof enclosure protects the device in hazardous areas
- Compact size and repeatability provide a high-value switch for many industrial and OEM applications
- Wide range of models from 0.07 in w.c. to 20 in w.c. can meet exacting OEM specifications for a low-pressure switch
- Range screw protected inside switch enclosure prevents tampering
- Increased response time at low pressures with LD port configuration
Product Overview
- Series ID Series-AT-1900
Series AT-1900 ATEX/IECEx-approved Compact Low Differential Pressure Switches are our most popular switches and are now available in a flameproof package. This pressure switch combines advanced design and precision construction to enable it to perform many of the tasks of larger, more expensive units.
Accessories
Static Pressure Sensors for Manometers & Gages across Air Filters
From $2.55
0 In Stock
Industrial Control: Pressure Gauges, Flow Meters & Temp Controllers
From $4.00
0 In Stock
Show Ratings & Reviews
SERIES AT-1900 SERIES PRESSURE SWITCH
AT-101NA-1910-X-XXXX AT-1900 PR SW W/ ATEX ENCLOSURE
1ST SYMBOL (1ST X) RANGE
00 0.07 - 0.15 IN WC
0 0.15 - 0.55 IN WC
1 0.40 - 1.6 IN WC
5 1.4 - 5.5 IN WC
10 3.0 - 11.75 IN WC
20 4.0 - 20.0 IN WC
2ND SYMBOL (2ND X) COVER
B BLIND
3RD SYMBOL (3RD X) PRESSURE PORT/VALVE MATERIAL
1 BRASS
2 STAINLESS STEEL
4TH SYMBOL (4TH X) PRESSURE PORT/VENTING VALVE
VS0 STD PRESSURE PORT 1/8” FEMALE NPT/NO VENTING VALVE
VL0 LD PRESSURE PORT 1/8” FEMALE NPT/NO VENTING VALVE
4TH SYMBOL (4TH X) CABLE ENTRY
12 1/2" NPT ANSI/ASME B1.20.1
