Alta-Tstat

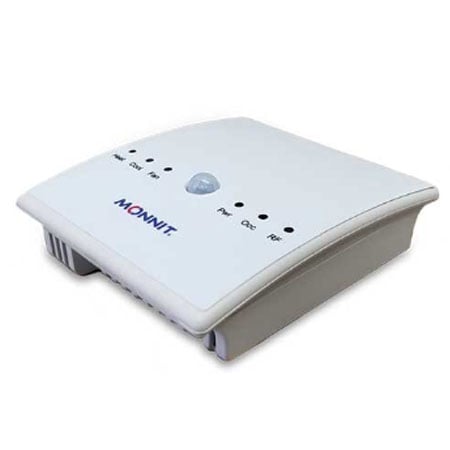

Alta Long Range Tamper resistant Wireless Thermostat
Models In Stock
- Remote Setting and Monitoring of HVAC Systems
- Detects Motion for Occupied/Non-Occupied Status
- Prevents Unauthorized Adjustments or Tampering
- Configuration lockout jumper prevents changes at the hardware level
- Full Functionality and Startup Without a Gateway (Gateway Required for Configuration Changes and iMonnit Device Monitoring)
Alta-Tstat
From
$
343.53
Models In Stock
Product Overview
- Accuracy Detail ± 3% under normal conditions ( 10% - 90% RH ) **
- Additional Features 1 Includes Motion Detector
- Band Frequency 900 MHz
- Certifications FCC ID: ZTL- RFSC1, IC: 9794A-RFSC1.
- Continuous Operating Current, Max 1 µA
- Detection Range 16.4 ft
- Functions Temperature Regulation
- Height 3.355 in
- Humidity Response Time 8 sec
- Indicator Type LED
- Inrush Current 8.5 A Peak
- Length 5.5 in
- Operating Humidity 0 to 100% RH
- Operating Temperature, Max 85 °C
- Operating Temperature, Min -40 °C
- Power Consumption Note 0.7 µA (sleep mode) ,2 mA (radio idle/off mode) ,2 mA (measurement mode) ,25 mA (radio RX mode) ,35 mA (radio TX mode)
- Relative Humidity Accuracy ± 3% RH
- Series ID Alta-Tstat
- Supply Power Type AC
- Supply Voltage 12 to 24 Vac
- Temperature Accuracy ± 1 °C
- Voltage, Max ± 800 V
- Width 1.25 in
- Wireless Range 250 to 300 ft
Supported Applications
The Omega Alta Long Range Tamper resistant Wireless Thermostat is designed for remote configuration and energy savings in HVAC systems. It features an integrated motion sensor to auto-detect occupancy, entering an energy-saving state when unoccupied. The device allows setting maximum and minimum temperature ranges for both occupied and non-occupied states, automatically adjusting comfort levels upon personnel arrival and returning to normal settings when they leave.
Documented applications include public buildings such as corporate facilities, schools, and churches. The unit is designed with no physical buttons to prevent unauthorized adjustments.
Operating Conditions & Performance
The series operates within a temperature range of -40°C to 85°C (-40°F to 185°F). Measurement capabilities include Temperature and Humidity, with a humidity operating range of 0 – 100% RH. Accuracy is specified as ± 1°C for temperature readings and ± 3% under normal conditions (10% - 90% RH) for relative humidity.
Response time for the RH sensor is 8 sec (tau 63%). The motion sensor detection range extends to 16.4 ft (5 m). Wireless communication operates at frequencies of 900, 920, 868 and 433 MHz with a wireless range of 250 - 300 ft. through walls, ceilings and floors; the document notes that range may vary according to environmental variables.
Electrical specifications include a supply voltage of 12 VAC - 24 VAC (powered via HVAC system). Current consumption varies by mode: 0.7 μA in sleep mode, 2 mA in radio idle/off and measurement modes, 25 mA in radio RX mode, and 35 mA in radio TX mode.
Configuration Options
The Alta-Tstat series supports the following configurable features and technical parameters:
- Sensor Options: The unit can be configured with a humidity sensor or a thermistor option. If the thermistor option is present, the thermostat only reads temperature and reports a value of 0% humidity.
- Tamper Resistance: A physical configuration lockout jumper prevents changes to any settings, even through the iMonnit portal. This feature requires removal of the physical jumper to change settings.
- Status Indicators: Six LED indicators provide visual status for Heating, Cooling, Fan, Power, Occupied, and Radio (RF).
- Electrical Connections: An 8-pin terminal block supports connections including Common (C), Line (R, Rc), Fan (G), Cool (Y), and Heat (W). The pass-through current rating on Heat, Cool, and Fan connections is Continuous: 1 A RMS with a Surge of 8.5 A Peak.
- Peak Voltage: Connections support +/− 800 Volts on Heat, Cool, and Fan terminals.
Key Product Differences
The series is available in multiple frequency variants to comply with regional standards. The 900 MHz product carries FCC ID: ZTL-RFSC1 and IC: 9794A-RFSC1 certifications. The 920 MHz product complies with ARIB STD-T108 R210-103733. Products operating at 868 and 433 MHz are tested to comply with CISPR 22:2008-09 / EN 55022:2010 - Class B and ETSI EN 300 220-2 V2.4.1 (2012-05).
Physical dimensions are fixed at 5.5 x 3.355 x 1.25 in. (139.7 x 85.217 x 31.75 mm). The device is designed for ordinary environments with normal room temperature, humidity, and atmospheric pressure; it should not be used under conditions involving corrosive gas, volatile or flammable gas, dusty conditions, low or high pressure, wet locations, salt water, oils, chemical liquids, organic solvents, or excessively strong vibrations.
