Series-100AV

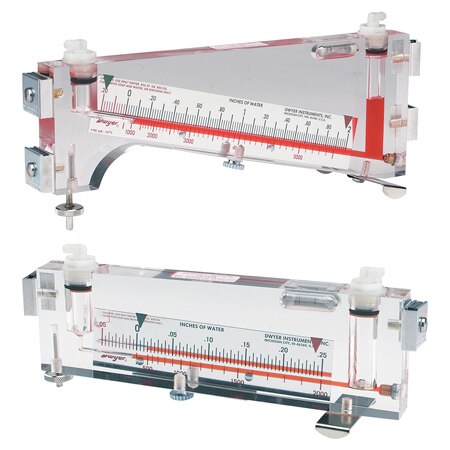

Air Velocity & Pressure Measurement Kit w/ Manometer & Pitot Tube
- Plastic Body - A 1" thick solid acrylic block, virtually unbreakable. It isstable and free of the danger of distortion.
- Drilled Bore - Permanently free of bends - never requires recalibration due to distortion.
- Reflective Chrome Finish Scales - Easily eliminates parallax errors in reading. Adjustable, with thumbscrew locking for easy zeroing. (Model 125 AV uses screw plunger to adjust zero setting).
- Red Gage Fluid - .826 specific gravity. Forms a well-shaped, easy-to-read meniscus - the result of high wetability.
- Leveling Adjustment - Screw allows quick, accurate leveling. Integral ground glass bubble level provides ready reference.
Series-100AV
From
$
1,296.90
Product Overview
- Air Velocity, Min 400 FPM
- Calibration Option N/A
- Fill Fluid Red Gage Fluid
- Housing Height 13.5 in
- Housing Length 10 in
- Housing Width 2.5 in
- Measurement Type Pressure
- Operating Temperature, Max 150 °F
- Port 1 Size 3/16 in
- Port 1 Type Barbed Fitting
- Port 2 Size 3/16 in
- Port 2 Type Barbed Fitting
- Pressure(Inclined), Max 2 inH₂O
- Pressure(Inclined), Min 0.2 inH₂O
- Pressure(Vertical), Max 0 inH₂O
- Proof Pressure Up to 100 psi
- Scale Position Inclined
Designed to measure air velocity, static pressure, vacuum or differential pressure, where the additional range of the 400 Series gages is not required. Series 100 Gages offer superb accuracy combined with portability. The Dwyer® Durablock® precision machined solid acrylic plastic construction, the wells and inclined bore are machined to tolerances of ±.0002".
Complete Air Velocity Kits Include:
Dwyer® Inclined Manometer, stainless steel Pitot tube (12" with Models 102 AV & 115 AV), two 9' lengths of rubber tubing with connectors, additional red gage fluid, instruction card H-7, Bulletin H-11 and magnetic mounting clips, air velocity calculator slide rule and carrying case.
Click here, if you require a Material Safety Data Sheet for the Red Gage Fluid.
PDFs & Manuals
Accessories
Durable Gage Fluids: Red (0.826 sp. gr.), Blue (1.91 sp. gr.), Green Concentrate
$24.90
1139 In Stock
Durable Gage Fluids: Red (0.826 sp. gr.), Blue (1.91 sp. gr.), Green Concentrate
$54.85
98 In Stock
Durable Gage Fluids: Red (0.826 sp. gr.), Blue (1.91 sp. gr.), Green Concentrate
$103.25
724 In Stock
Durable Gage Fluids: Red (0.826 sp. gr.), Blue (1.91 sp. gr.), Green Concentrate
$12.85
7843 In Stock
