PM500

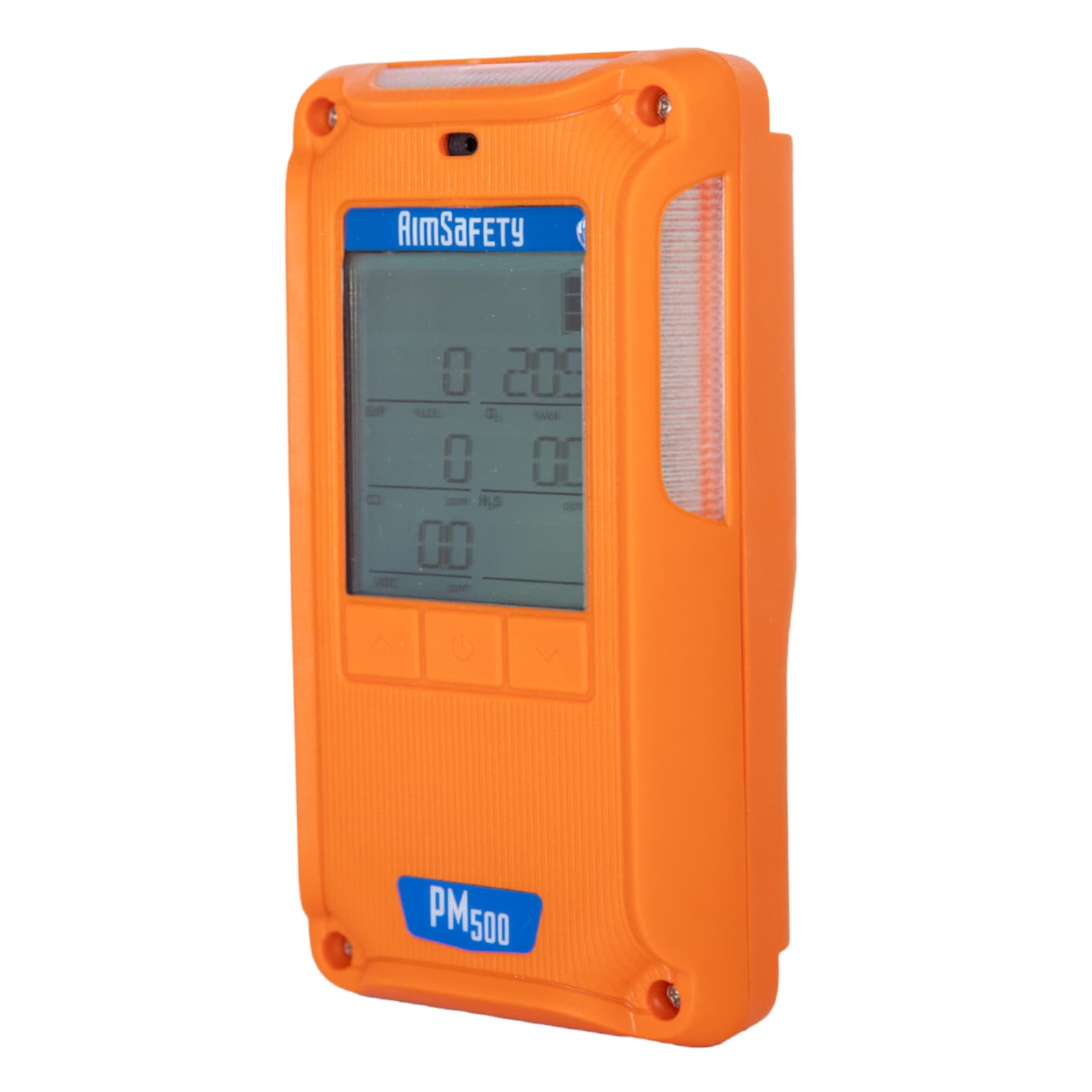

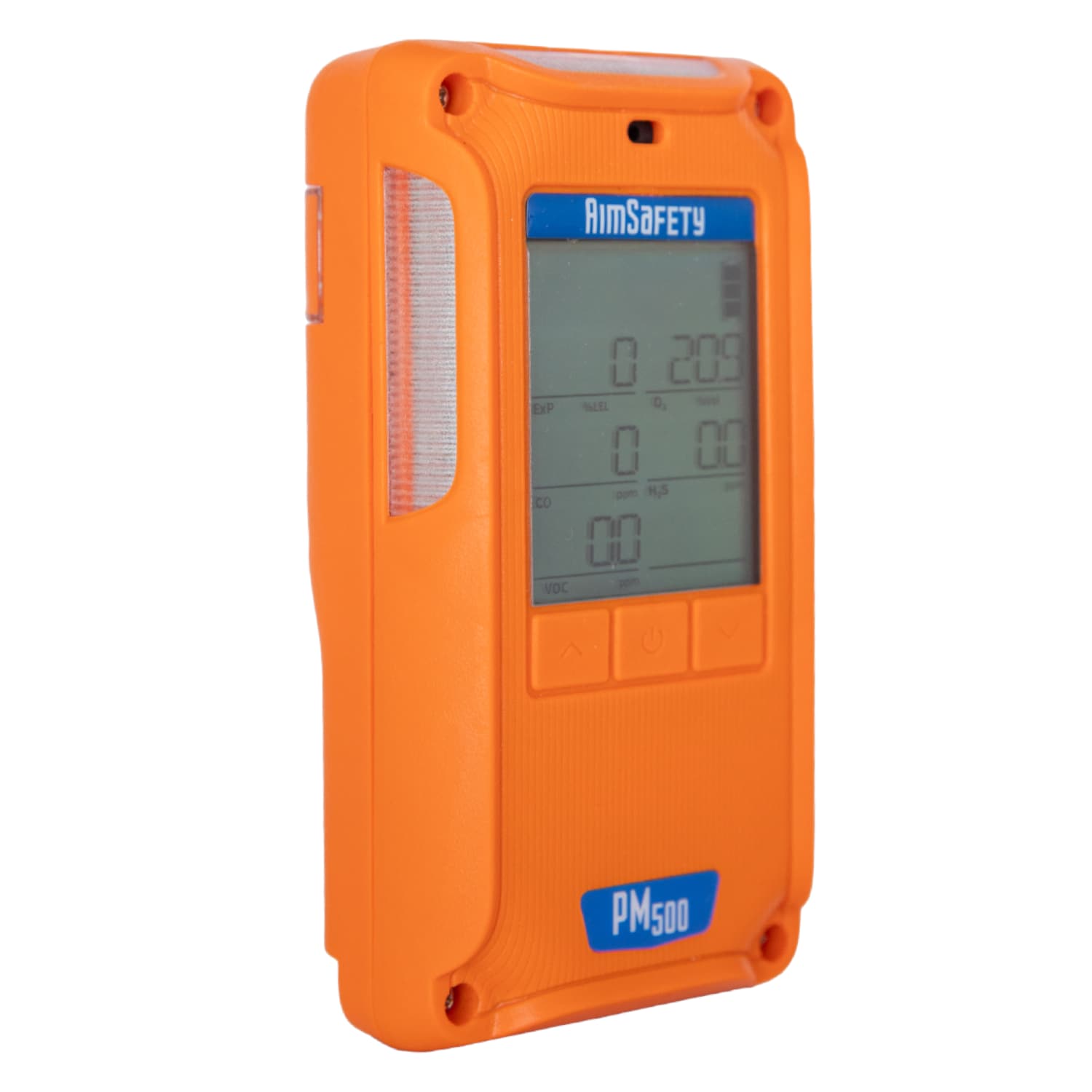

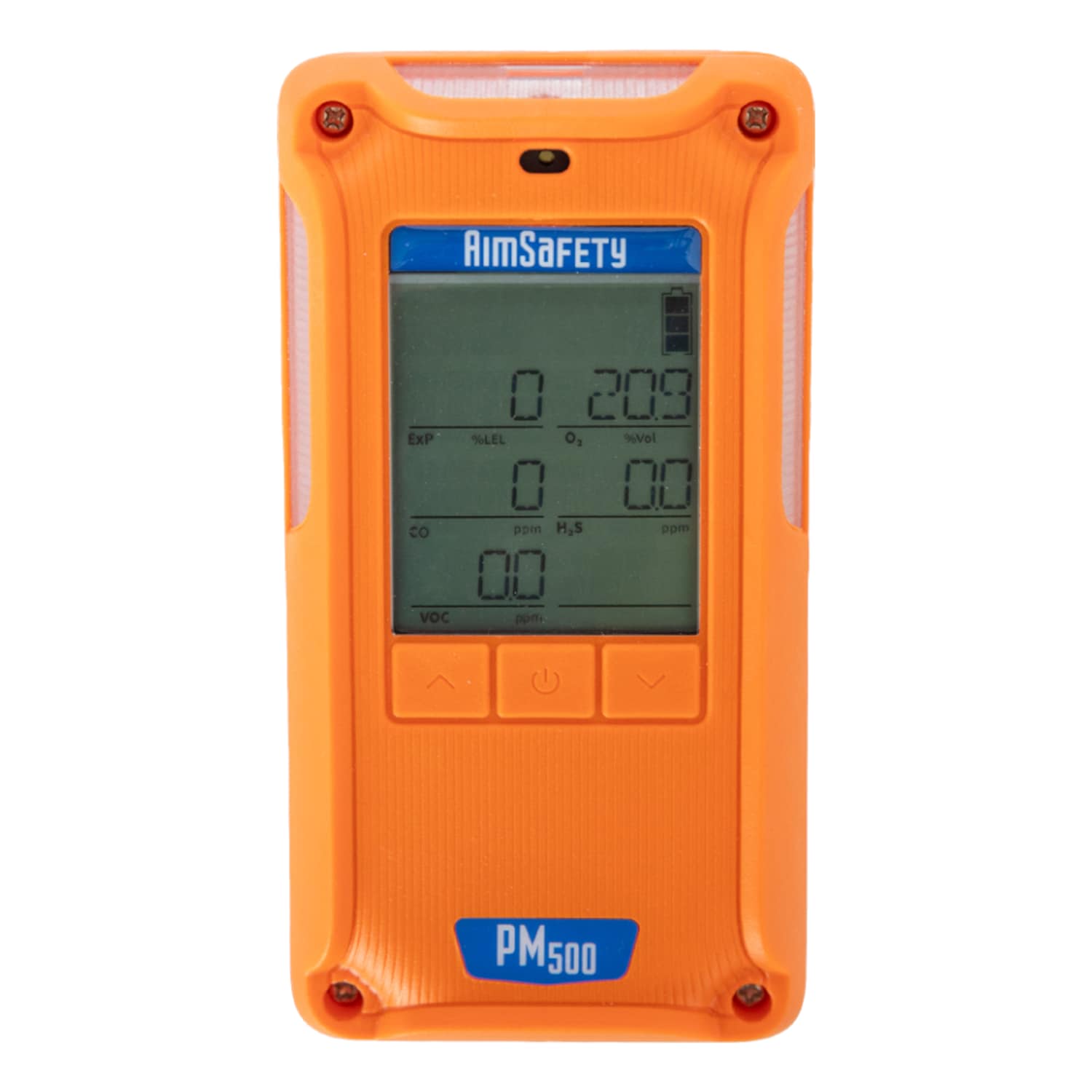

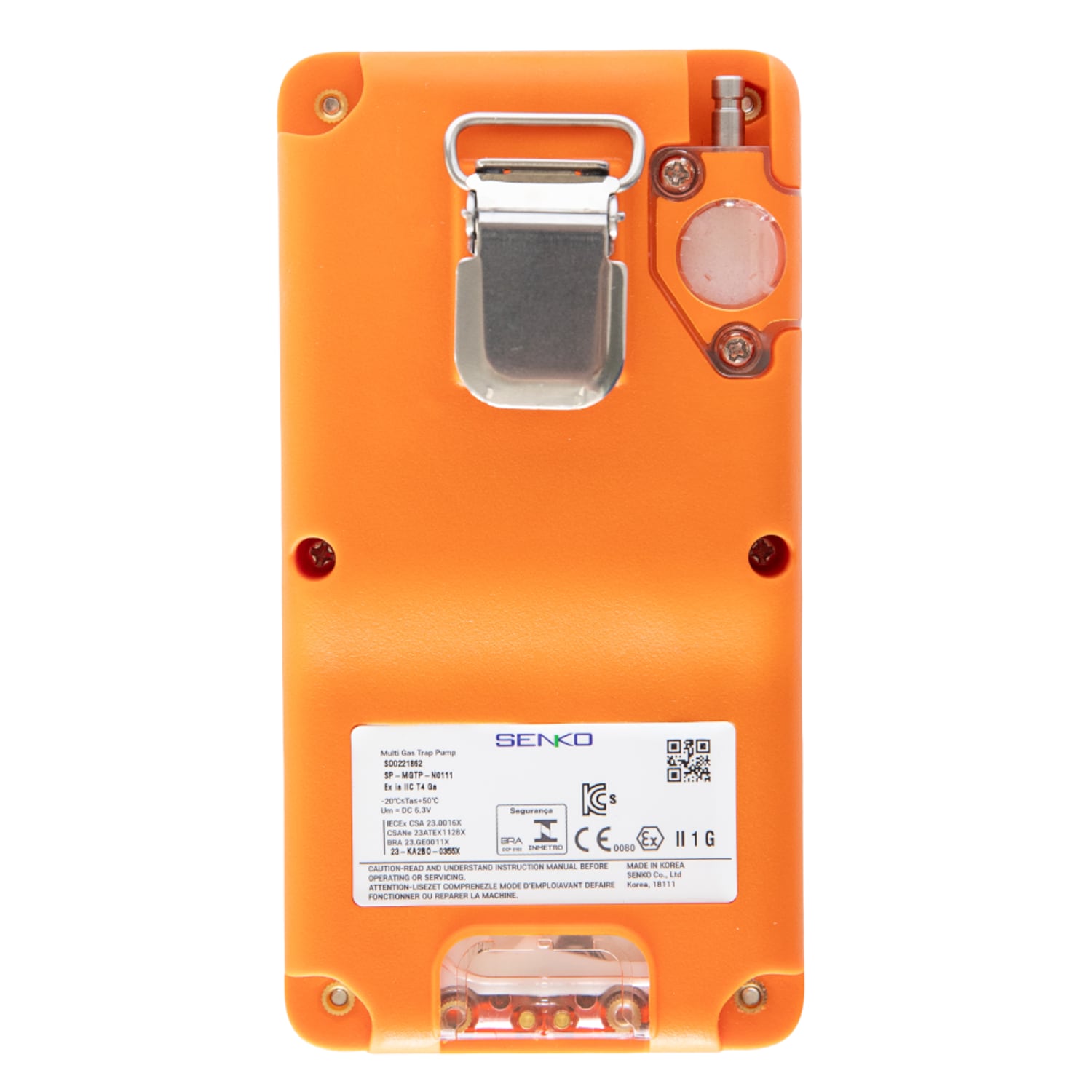

AimSafety PM500 Multi-Gas Monitor with Pump – 6 Gas Detection, Real-Time Readings & Confined Space Safety
- Easy-to-read backlit LCD display
- Sampling-type monitor with embedded pump
- IP67 dust tight & water resistant
- 5-day continuous runtime (IR version)
- IR sensor is immune to poisoning and can be used in inert environments
Product Overview
- Audible Alarm 90 dB @ 10 cm
- Battery Size and Type 3.7V Li-ion
- Calibration Interval 6 to 12 months
- Charging System Wall charger
- Compatibility Compatible With: Standard 3 ft. tubing, sampling probe, and the PM Link accessory for settings modification via PC software.
- Data Interface Note PC Interface: Settings modification and configuration are performed via PC software using the PM Link accessory, which is purchased separately.
- Data Logging Yes
- Display Note Segment LCD backlight display
- Display Type Backlit LCD
- Electrical Rating Note Rechargeable Lithium-Ion: Nominal Voltage: 3.7 V; Nominal Capacity: 4000 mAh; Maximum Charging Voltage: 6.3 V
- Enclosure Ratings Note IP67; Class I, Division 1, Groups A, B, C, and D, T4; Class I, Zone 1, AEx db ia IIC T4 Gb; Ex db ia IIC T4 Gb (or Ex db ia IIB T4 Gb)
- Hazardous Classification Ex db ia IIC T4 Gb, Class I, Division 1, Groups A, B, C, and/or D, T4, Class I, Zone 1, AEx db ia IIC T4 Gb
- Mounting Clip
- Operating Environment IP67; Operating temperature range: -4°F to 122°F (-20°C to 50°C); Operating humidity range: 10% to 90% RH (Non-condensing)
- Operating Temperature, Max 122 °F
- Operating Temperature, Min -4 °F
- Operating Temperature Note -4°F to 122°F (-20°C to 50°C)
- Programming PC software (via PM Link accessory, purchased separately)
- Protection Intrinsically safe
- Series ID PM500
- Supply Power Note Units with pellistor sensor can operate up to 30 hr continuously and Units with NDIR sensor can operate up to 5 days continuously fully charged
- Supported Devices standard 3ft. Tubing and sampling probe
Macurco PM500 Multi-Gas Monitor with Pump – Rugged handheld gas detector with built-in sampling pump, monitoring up to 6 gases simultaneously. Features real-time LCD readings, audible/visual/vibration alarms, and is ideal for confined space entry and hazardous environments.
PDFs & Manuals
Software & Drivers
Accessories
PM Link PC Interface for AimSafety monitors and calibration stations
$225.00 / each
0 In Stock
PM500-SPK Sampling Probe Kit - Probe, Probe Filter, and 9 ft Tygon Tubing
$335.00 / each
0 In Stock
